Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74ACT16WBQARQ1AUTOMOTIVE, 4.5V TO 5.5V INVERTE |
3,000 | 0.00 |
|
- |
74ACT | 14-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Inverter | 6 | 6 | Schmitt Trigger Input, Open Drain | 4.5V ~ 5.5V | 2 µA | -, 24mA | 1.18V ~ 1.28V | 1.9V ~ 2.1V | - | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount, Wettable Flank | 14-WQFN (3x2.5) |
|
SN74AHCT32NSRIC GATE OR 4CH 2-INP 14SO |
2,000 | 1.00 |
|
Datasheet |
74AHCT | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
|
NL37WZ14USGIC INVERT SCHMITT 3CH 3-INP US8 |
6,335 | 0.46 |
|
Datasheet |
37WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Schmitt Trigger | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | 0.4V ~ 1.2V | 1.8V ~ 3.6V | 4.9ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | US8 |
|
|
SN74LS02NSRIC GATE NOR 4CH 2-INP 14SO |
1,573 | 0.28 |
|
Datasheet |
74LS | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | NOR Gate | 4 | 2 | - | 4.75V ~ 5.25V | - | 400µA, 16mA | 0.8V | 2V | 15ns @ 5V, 15pF | 0°C ~ 70°C (TA) | - | - | Surface Mount | 14-SO |
|
74HC4075D-Q100JIC GATE OR 3CH 3-INP 14SO |
1,490 | 0.35 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | OR Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
|
SN74AHCT08NSRIC GATE AND 4CH 2-INP 14SO |
1,851 | 0.31 |
|
Datasheet |
74AHCT | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-SO |
|
|
SN74AHCT14NSRIC INVERT SCHMITT 6CH 1-INP 14SO |
2,000 | 0.31 |
|
Datasheet |
74AHCT | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
|
SN74AUP2G00RSERIC GATE NAND 2CH 2-INP 8UQFN |
3,776 | 0.43 |
|
Datasheet |
74AUP | 8-UFQFN | Tape & Reel (TR) | Active | NAND Gate | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.7ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 8-UQFN (1.5x1.5) |
|
SN74LV20ADGVRIC GATE NAND 2CH 4-INP 14TVSOP |
1,996 | 0.34 |
|
Datasheet |
74LV | 14-TFSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NAND Gate | 2 | 4 | - | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.5V | 1.5V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TVSOP |
|
|
SN74ACT32NSRIC GATE OR 4CH 2-INP 14SO |
1,970 | 0.75 |
|
Datasheet |
74ACT | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
|
|
NL27WZ32USGIC GATE OR 2CH 2-INP US8 |
6,460 | 0.49 |
|
Datasheet |
27WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
74LVC2G04FZ4-7IC INVERTER 2CH 2-INP DFN1410-6 |
5,000 | 0.14 |
|
Datasheet |
74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 40 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.8ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | X2-DFN1410-6 |
|
SN74LVC3GU04DCTRIC INVERTER 3CH 3-INP SM8 |
2,965 | 0.39 |
|
Datasheet |
74LVC | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | - | - | 3.2ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SM8 |
|
SN74AHCU04NIC INVERTER 6CH 1-INP 14DIP |
1,035 | 0.34 |
|
Datasheet |
74AHCU | 14-DIP (0.300", 7.62mm) | Bulk | Active | Inverter | 6 | 1 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.3V ~ 1.1V | 1.7V ~ 4.4V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
CD4025BNSRIC GATE NOR 3CH 3-INP 14SO |
1,680 | 0.34 |
|
Datasheet |
4000B | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | NOR Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
NC7WZ00K8XIC GATE NAND 2CH 2-INP US8 |
3,470 | 0.48 |
|
Datasheet |
7WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
|
NC7WZ86K8XIC GATE XOR 2CH 2-INP US8 |
3,000 | 0.46 |
|
Datasheet |
7WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 4.2ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|

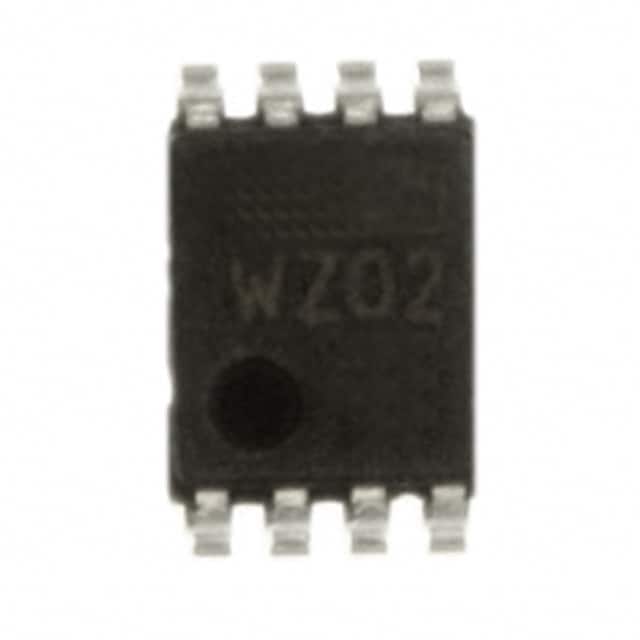

NC7WZ02K8XIC GATE NOR 2CH 2-INP US8 |
2,970 | 0.41 |
|
Datasheet |
7WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | NOR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
|
NC7NZ04K8XIC INVERTER 3CH 3-INP US8 |
2,821 | 0.45 |
|
Datasheet |
7NZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
|
NL27WZ08USGIC GATE AND 2CH 2-INP US8 |
2,730 | 0.43 |
|
Datasheet |
27WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | US8 |
