Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC74VHC08DTR2G-QQUAD 2-INPUT AND GATE |
4,648 | 0.00 |
|
Datasheet |
74VHC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Discontinued at Digi-Key | AND Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 7.9ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP |
|
|
NC7SV08P5X-L22735TINYLOGIC ULP-A 2-INPUT AND GATE |
1,878 | 0.00 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Discontinued at Digi-Key | AND Gate | 1 | 2 | - | 0.9V ~ 3.6V | 900 nA | 24mA, 24mA | 0.5V ~ 0.8V | 0.5V ~ 2V | 2.3ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NC7NZ04K8X-L22236TINYLOGIC UHS INVERTER |
2,446 | 0.00 |
|
Datasheet |
- | 8-VFSOP (0.091", 2.30mm Width) | Bulk | Discontinued at Digi-Key | Inverter | 3 | 3 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
|
NC7SV04P5X-L22735TINYLOGIC ULP-A INVERTER |
1,599 | 0.00 |
|
Datasheet |
- | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Discontinued at Digi-Key | Inverter | 1 | 1 | - | 0.9V ~ 3.6V | 900 nA | 24mA, 24mA | 0.5V ~ 0.8V | 0.5V ~ 2V | 2.3ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-88A (SC-70-5) |
|
|
NLVLCX08DTR2GLOW VOLTAGE QUAD 2-INPUT AND GAT |
3,654 | 0.00 |
|
Datasheet |
74LCX | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Discontinued at Digi-Key | AND Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.5ns @ 3.3V, 50pF | -40°C ~ 85°C | Automotive | AEC-Q101 | Surface Mount | 14-TSSOP |
|
|
MC74VHC1G86DFT2G-QSINGLE 2-INPUT EXCLUSIVE OR GATE |
4,474 | 0.00 |
|
Datasheet |
74VHC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Discontinued at Digi-Key | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NLV74HC1G32DTT1GSINGLE 2-INPUT OR GATE |
2,410 | 0.00 |
|
Datasheet |
74HC | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued at Digi-Key | OR Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
|
MC74VHC1G86DBVT1G-QSINGLE 2-INPUT EXCLUSIVE OR GATE |
1,627 | 0.00 |
|
Datasheet |
74VHC | SC-74A, SOT-753 | Bulk | Discontinued at Digi-Key | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-74A |
|

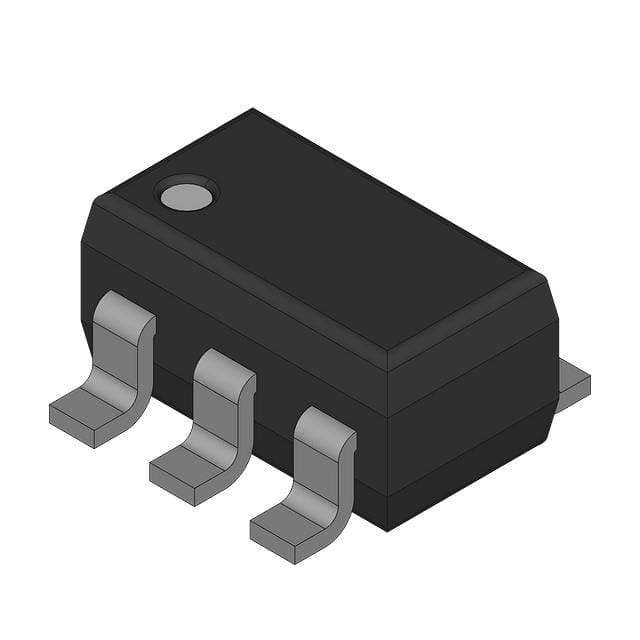

NLVHC1G08DTT1GHIGH-SPEED SINGLE CMOS 2-INPUT A |
3,908 | 2515.00 |
|
Datasheet |
74HC | SOT-23-5 Thin, TSOT-23-5 | Bulk | Discontinued at Digi-Key | AND Gate | 1 | 2 | - | 2V ~ 6V | 1 µA | 2.6mA, 2.6mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSOP |
|
SN54LS30JIC GATE NAND 1CH 8-INP 14CDIP |
1,658 | 9.84 |
|
Datasheet |
54LS | 14-CDIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 1 | 8 | - | 4.5V ~ 5.5V | 1.1 mA | 400µA, 4mA | 0.7V | 2V | 20ns @ 5V, 15pF | -55°C ~ 125°C | - | - | Through Hole | 14-CDIP |
