Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DM7426NIC GATE NAND 4CH 2-INP 14DIP |
2,000 | 0.33 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 4 | 2 | Open Collector | 4.75V ~ 5.25V | 22 mA | 1mA, 16mA | 0.8V | 2V | 24ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
MC74AC132MIC GATE NAND 4CH 2-INP 14SOIC |
1,948 | 0.33 |
|
Datasheet |
- | 14-SOIC (0.209", 5.30mm Width) | Bulk | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 2V ~ 6V | 4 µA | 24mA, 24mA | 0.5V ~ 1.1V | 2.2V ~ 3.9V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
NC7WP08K8XIC GATE AND 2CH 2-INP US8 |
4,072 | 0.64 |
|
Datasheet |
7WP | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 2 | 2 | - | 0.9V ~ 3.6V | 900 nA | 2.6mA, 2.6mA | 0.7V ~ 0.9V | 1.6V ~ 2.1V | 9.2ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
SN74LS03NE4IC GATE NAND 4CH 2-INP 14DIP |
1,625 | 0.00 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 4 | 2 | Open Collector | 4.75V ~ 5.25V | 4.4 mA | 8mA | 0.8V | 2V | 32ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
74LVT10DB,112IC GATE NAND 3CH 3-INP 14SSOP |
1,377 | 0.33 |
|
Datasheet |
74LVT | 14-SSOP (0.209", 5.30mm Width) | Tube | Obsolete | NAND Gate | 3 | 3 | - | 2.7V ~ 3.6V | - | 20mA, 32mA | 0.8V | 2V | 3.8ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SSOP |
|
74AUP1G38GF,132IC GATE NAND 1CH 2-INP 6XSON |
1,016 | 0.00 |
|
Datasheet |
74AUP | 6-XFDFN | Tape & Reel (TR) | Obsolete | NAND Gate | 1 | 2 | Open Drain | 0.8V ~ 3.6V | 500 nA | -, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 12.7ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT891 (1x1) |
|
74VHC32MIC GATE OR 4CH 2-INP 14SOIC |
236,271 | 0.34 |
|
Datasheet |
74VHC | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | OR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74VCX86BQXIC GATE XOR 4CH 2-INP 14DQFN |
1,668 | 0.00 |
|
Datasheet |
74VCX | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 1.2V ~ 3.6V | 20 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 3ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 14-DQFN (3x2.5) |
|
|
74VHC32MIC GATE OR 4CH 2-INP 14SOIC |
3,209 | 0.34 |
|
Datasheet |
74VHC | 14-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74VHC04SJXIC INVERTER 6CH 1-INP 14SOP |
108,000 | 0.00 |
|
Datasheet |
74VHC | 14-SOIC (0.209", 5.30mm Width) | Bulk | Active | Inverter | 6 | 1 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
SN74AHCT1G04DBV3IC GEN PURP |
105,000 | 0.34 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NL17SG04DFT2GIC INVERTER 1CH 1-INP SC88A |
2,044 | 0.39 |
|
Datasheet |
MiniGate™ | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | - | 0.9V ~ 3.6V | 500 nA | 8mA, 8mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.4ns @ 3.3V, 30pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
74AUP3G0434GTXIC DUAL INVERTER SGL BUFF 8XSON |
3,595 | 85000.00 |
|
Datasheet |
74AUP | 8-XFDFN | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|
|
MM74HCT08SJXIC GATE AND 4CH 2-INP 14SOP |
56,595 | 0.00 |
|
Datasheet |
74HCT | 14-SOIC (0.209", 5.30mm Width) | Bulk | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4.8mA, 4.8mA | 0.8V | 2V | 18ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
NLV27WZ04DFT1GIC INVERTER 2CH 2-INP SC88 |
2,840 | 0.22 |
|
Datasheet |
27WZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
74LCX32MIC GATE OR 4CH 2-INP 14SOIC |
41,800 | 0.92 |
|
Datasheet |
74LCX | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | OR Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|

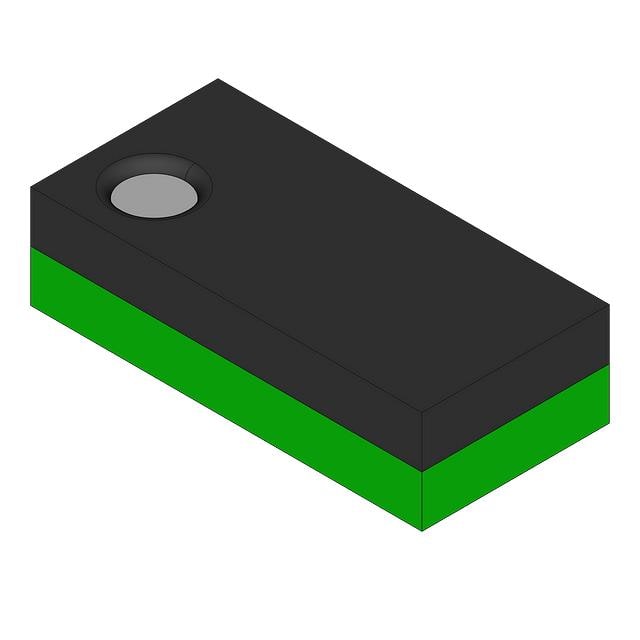

SN74AUC2G00YZPRBIC GEN PURP |
39,000 | 0.34 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74F38PCIC GATE NAND 4CH 2-INP 14DIP |
36,563 | 0.00 |
|
Datasheet |
74F | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 4 | 2 | Open Collector | 4.5V ~ 5.5V | - | -, 64mA | 0.8V | 2V | 12.5ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-DIP |
|
MC74ACT11MELGIC GATE AND 3CH 3-INP SOEIAJ-14 |
2,415 | 0.34 |
|
Datasheet |
74ACT | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 3 | 3 | - | 4.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.8V | 2V | 9.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOEIAJ-14 |
|
|
MC74AC04MELGIC INVERTER 6CH 1IN SOEIAJ-14 |
2,556 | 0.34 |
|
Datasheet |
74AC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 2V ~ 6V | 4 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOEIAJ-14 |
