Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD40106BPWRIC INVERTER 6CH 1-INP 14TSSOP |
66,295 | 0.58 |
|
Datasheet |
4000B | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 4 µA | 3.4mA, 3.4mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 120ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
CD40106BM96IC INVERT SCHMITT 6CH 1IN 14SOIC |
33,248 | 0.58 |
|
Datasheet |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 4 µA | 3.4mA, 3.4mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 120ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74ACT14PWRIC INVERT SCHMIT 6CH 1IN 14TSSOP |
27,284 | 0.63 |
|
Datasheet |
74ACT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.5V ~ 1.4V | 1.2V ~ 2.1V | 11.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
CD4049UBDRIC INVERTER 6CH 1-INP 16SOIC |
9,775 | 0.65 |
|
Datasheet |
4000B | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 3V ~ 18V | 4 µA | 4.3mA, 24mA | 1V ~ 2.5V | 4V ~ 12.5V | 50ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 16-SOIC |
|
SN74AUP1G08DPWRIC GATE AND 1CH 2-INP 4X2SON |
15,755 | 0.54 |
|
Datasheet |
74AUP | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 4-X2SON (0.8x0.8) |
|
|
SN74AC14DRIC INVERT SCHMITT 6CH 6IN 14SOIC |
15,086 | 0.55 |
|
Datasheet |
74AC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 6 | Schmitt Trigger | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.5V ~ 1.1V | 2.2V ~ 3.9V | 10ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
SN74LVC3G14DCURIC INVERT SCHMITT 3CH 3IN 8VSSOP |
75,206 | 0.62 |
|
Datasheet |
74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Schmitt Trigger | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 2.5V | 1.4V ~ 3.7V | 4.3ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
|
SN74LVC2G132DCURIC GATE NAND 2CH 2-INP 8VSSOP |
24,519 | 0.58 |
|
Datasheet |
74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | NAND Gate | 2 | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.39V ~ 1.87V | 1.16V ~ 3.33V | 5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
74LVC2G08DC,125IC GATE AND 2CH 2-INP 8VSSOP |
143,441 | 0.52 |
|
Datasheet |
74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 0.95V ~ 3.4V | 3.8ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
SN74ACT04PWRIC INVERTER 6CH 1IN 14TSSOP |
13,955 | 0.61 |
|
Datasheet |
74ACT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74LVC2G00DCURIC GATE NAND 2CH 2-INP 8VSSOP |
14,246 | 0.62 |
|
Datasheet |
74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.3ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|

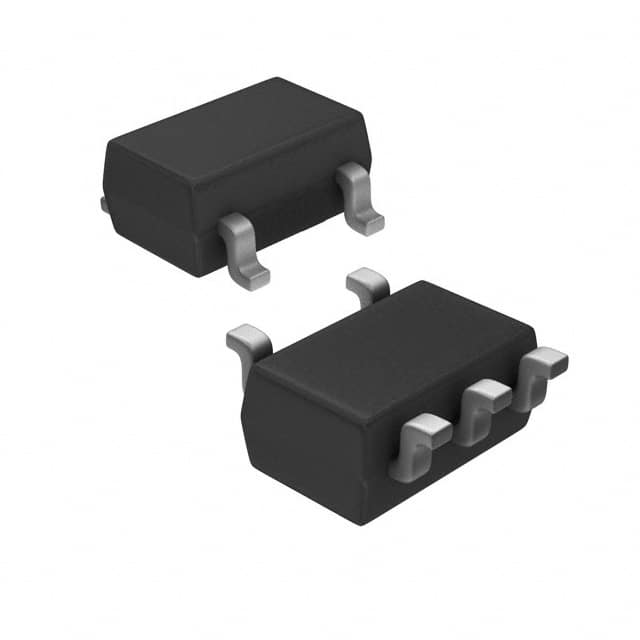

TC4S584F,LFIC INVERT SCHMITT 1CH 1-INP SMV |
45,070 | 0.39 |
|
Datasheet |
TC4S | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 3V ~ 18V | 4 µA | 3.4mA, 3.4mA | 1.1V ~ 3.3V | 3.35V ~ 10.6V | 120ns @ 15V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SMV |
|
SN74LVC2G08DCTRIC GATE AND 2CH 2-INP SM8 |
16,633 | 0.68 |
|
Datasheet |
74LVC | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.8ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SM8 |
|
SN74LVC2G14IDCKRQ1IC INVERT SCHMITT 2CH 2IN SC70-6 |
9,569 | 0.83 |
|
Datasheet |
74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Inverter | 2 | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.3V ~ 1.4V | 1.4V ~ 3.7V | 4.3ns @ 5V, 50pF | -40°C ~ 85°C (TA) | Automotive | AEC-Q100 | Surface Mount | SC-70-6 |
|
CD40106BEIC INVERT SCHMITT 6CH 1INP 14DIP |
9,706 | 0.65 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Active | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 4 µA | 3.4mA, 3.4mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 120ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
CD4001BEIC GATE NOR 4CH 2-INP 14DIP |
7,739 | 0.60 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | NOR Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
CD4011BEIC GATE NAND 4CH 2-INP 14DIP |
7,312 | 0.60 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Active | NAND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
SN74HC00NIC GATE NAND 4CH 2-INP 14DIP |
7,542 | 0.60 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
CD74HC14EIC INVERT SCHMITT 6CH 1INP 14DIP |
5,636 | 1.00 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Active | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V | 23ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
NC7WZ04L6XIC INVERTER 2CH 2-INP 6MICROPAK |
20,922 | 0.48 |
|
Datasheet |
7WZ | 6-UFDFN | Tape & Reel (TR) | Active | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
