Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC1230FIC GATE XOR 4CH 2-INP 14CFLATPK |
422 | 16.75 |
|
Datasheet |
MC1200 | 14-CFlatPack | Bulk | Active | XOR (Exclusive OR) | 4 | 2 | - | - | - | - | 1.5V | 0.85V | - | -55°C ~ 125°C | - | - | Surface Mount | 14-CFlatPack |
|
JM38510/65002BDAIC GATE NAND 3-INP |
183 | 17.08 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
JM4001BBDAIC GATE NOR 4CH 2-INP 14CFP |
327 | 17.13 |
|
Datasheet |
- | 14-CFlatPack | Bulk | Active | NOR Gate | 4 | 2 | - | 3V ~ 18V | 5 µA | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
JM4023ABDAIC GATE NAND TRPL 3-INP |
126 | 17.13 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MC1247FIC GATE AND 4CH 2-INP 14CFLATPK |
1,310 | 17.26 |
|
Datasheet |
MC1200 | 14-CFlatPack | Bulk | Active | AND Gate | 4 | 2 | - | 5.2V | 36 mA | - | 1.5V | 0.85V | - | -55°C ~ 125°C | - | - | Surface Mount | 14-CFlatPack |
|
|
CD4011BKIC GATE NAND 4CH 2-INP 14CFP |
5,756 | 18.52 |
|
Datasheet |
- | 14-CFlatPack | Bulk | Active | NAND Gate | 4 | 2 | - | 3V ~ 18V | 5 µA | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD4001BKIC GATE NOR 4CH 2-INP 14CFP |
288 | 18.55 |
|
Datasheet |
- | 14-CFlatPack | Bulk | Active | NOR Gate | 4 | 2 | - | 3V ~ 18V | 5 µA | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD4012BK3IC GATE NAND 2CH 4-INP 14CFP |
106 | 18.67 |
|
Datasheet |
- | 14-CFlatPack | Bulk | Active | NAND Gate | 2 | 4 | - | 3V ~ 18V | 5 µA | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD40106BK3IC INVERT SCHMITT 6CH 1INP 14CFP |
171 | 18.78 |
|
Datasheet |
- | 14-CFlatPack | Bulk | Active | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 20 µA | 6.8mA, 6.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 120ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
JD9930BCAIC DUAL |
202 | 18.79 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
JM38510/03005BDAIC GATE NAND QUAD 2-INP |
3,245 | 18.87 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SN54S134JIC GATE NAND 12-INP |
343 | 21.25 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MC1664FIC GATE OR 4CH 2-INP 14CFLATPACK |
1,592 | 19.14 |
|
Datasheet |
MC1600 | 14-CFlatPack | Bulk | Active | OR Gate | 4 | 2 | - | 5.2V | 56 mA | - | 1.85V | 0.81V | - | -30°C ~ 85°C | - | - | Surface Mount | 14-CFlatPack |
|
|
MC1662FIC GATE NOR 4CH 2-INP 16CFP |
557 | 19.14 |
|
Datasheet |
- | 16-CFlatpack | Bulk | Active | NOR Gate | 4 | 2 | - | - | - | - | - | - | - | -30°C ~ 85°C | - | - | Surface Mount | 16-CFP |
|

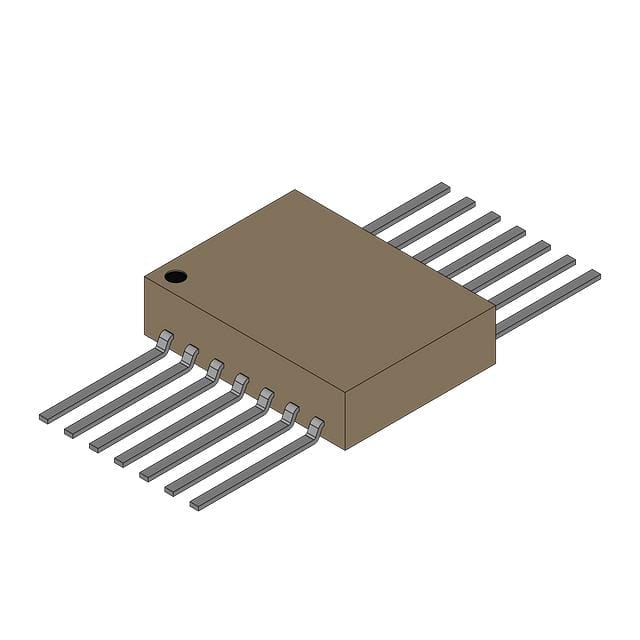

CD4000AKIC GATE NOR 2CH 3-INP 14CFP |
106 | 19.38 |
|
Datasheet |
- | 14-CFlatPack | Bulk | Active | NOR Gate | 2 | 3 | - | 3V ~ 12V | 2 µA | - | - | - | 65ns @ 10V, 15pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
MC2118FIC GATE NAND 4CH 2-INP 14CFLTPK |
1,818 | 19.69 |
|
Datasheet |
MC2100 | 14-CFlatPack | Bulk | Active | NAND Gate | 4 | 2 | - | 4.5V ~ 6V | - | - | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | 14-CFlatPack |
|
|
MC508FIC GATE NOR 4CH 2-INP 14CFLATPK |
132 | 19.84 |
|
Datasheet |
MC500 | 14-CFlatPack | Bulk | Active | NOR Gate | 4 | 2 | - | 5V | - | 1.5mA, 20mA | 0.45V | 2.8V | - | -55°C ~ 125°C | - | - | Surface Mount | 14-CFlatPack |
|
|
MC527FIC GATE AND 2CH 4-INP 14CFLATPK |
118 | 19.84 |
|
Datasheet |
MC500 | 14-CFlatPack | Bulk | Active | AND Gate | 2 | 4 | - | 5V | - | 1.5mA, 20mA | 0.45V | 2.8V | - | -55°C ~ 125°C | - | - | Surface Mount | 14-CFlatPack |
|
MC360FIC GATE NOR 2CH 2-INP 10CFLATPK |
990 | 19.85 |
|
Datasheet |
MC350 | 10-CFlatPack | Bulk | Active | NOR Gate | 2 | 2 | - | - | - | - | - | - | - | 0°C ~ 75°C | - | - | Surface Mount | 10-CFlatPack |
|
|
CD4023AK3IC GATE NAND 3CH 3-INP 14CFP |
128 | 19.92 |
|
Datasheet |
- | 14-CFlatPack | Bulk | Active | NAND Gate | 3 | 3 | - | 3V ~ 12V | 2 µA | - | - | - | 40ns @ 10V, 15pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
