Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC74VHC1G86DFT2G-L22038IC GATE XOR 1CH 2-INP SC88A |
195 | 0.00 |
|
Datasheet |
74VHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
SN74LVC1G86DBVRG4IC GATE XOR 1CH 2-INP SOT23-5 |
621 | 0.49 |
|
Datasheet |
74LVC | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | XOR (Exclusive OR) | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
74HC4049DB,118IC BUFFER INVERT 6V 16SSOP |
1,000 | 0.00 |
|
Datasheet |
74HC | 16-SSOP (0.209", 5.30mm Width) | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 16-SSOP |
|
|
74VHCT32ATTRIC GATE OR 4CH 2-INP 14TSSOP |
669 | 0.40 |
|
Datasheet |
74VHCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74LVC11D,112IC GATE AND 3CH 3-INP 14SO |
231 | 0.51 |
|
Datasheet |
74LVC | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | AND Gate | 3 | 3 | - | 1.2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1.08V ~ 2V | 6.2ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
SN74LS32NSRG4IC GATE OR 4CH 2-INP 14SO |
1,674 | 0.00 |
|
Datasheet |
74LS | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | OR Gate | 4 | 2 | - | 4.75V ~ 5.25V | - | 400µA, 8mA | 0.8V | 2V | 22ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SO |
|
SN74F64NIC GATE INVERTER AND/OR |
948 | 0.30 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

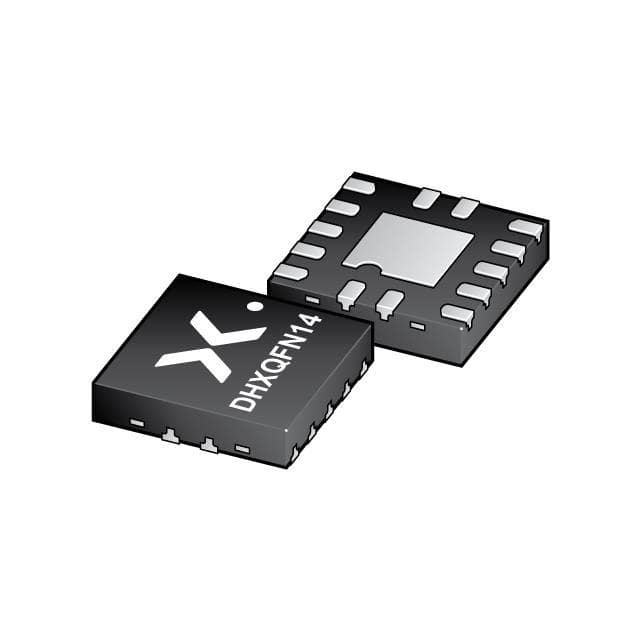

74LVC14ABZZIC INVERTER 6CH 1-INP 14DHXQFN |
799 | 0.44 |
|
Datasheet |
74LVC | 14-XFQFN Exposed Pad | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 40 µA | 24mA, 24mA | 0.75V ~ 1.5V | 1V ~ 2V | 8ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-DHXQFN (2x2) |
|
74AHC32BQ,115IC GATE OR 4CH 2-INP 14DHVQFN |
1,000 | 0.17 |
|
Datasheet |
74AHC | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-DHVQFN (2.5x3) |
|
|
SN74AHC1G04DBVRG4IC INVERTER 1CH 1-INP SOT23-5 |
566 | 0.43 |
|
Datasheet |
74AHC | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Inverter | 1 | 1 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
|
74LVT00PW,118IC GATE NAND 4CH 2-INP 14TSSOP |
4,484 | 0.33 |
|
Datasheet |
74LVT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | - | 2.7V ~ 3.6V | - | 20mA, 32mA | 0.8V | 2V | 2.7ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
74HC10PW,112IC GATE NAND 3CH 3-INP 14TSSOP |
276 | 0.46 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | NAND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 16ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74VHCT08BQ,115IC GATE AND 4CH 2-INP 14DHVQFN |
245 | 0.47 |
|
Datasheet |
74VHCT | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-DHVQFN (2.5x3) |
|
74VHC02MTRIC GATE NOR 4CH 2-INP 14SO |
142 | 0.55 |
|
Datasheet |
74VHC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NOR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
CD4025BEIC GATE NOR 3CH 3-INP 14DIP |
957 | 0.35 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | NOR Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
74ABT08PW,118IC GATE AND 4CH 2-INP 14-TSSOP |
956 | 0.46 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DM74S133NIC GATE NAND 1CH 13-INP 16DIP |
1,000 | 0.00 |
|
Datasheet |
74S | 16-DIP (0.300", 7.62mm) | Tube | Obsolete | NAND Gate | 1 | 13 | - | 4.75V ~ 5.25V | - | 1mA, 20mA | 0.8V | 2V | 10ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 16-PDIP |
|
|
74AHCT32S14-13IC GATE OR 4CH 2-INP 14SO |
743 | 0.39 |
|
Datasheet |
74AHCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 20 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-SO |
|
74HC32T14-13IC GATE OR 4CH 2-INP 14TSSOP |
594 | 0.39 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 2V ~ 6V | 20 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
4081BDMIC GATE AND 14CDIP |
993 | 0.37 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
