Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74ACT08NIC GATE AND 4CH 2-INP 14DIP |
10,790 | 0.64 |
|
Datasheet |
74ACT | 14-DIP (0.300", 7.62mm) | Bulk | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
SN74AC86NIC GATE XOR 4CH 2-INP 14DIP |
1,508 | 0.67 |
|
Datasheet |
74AC | 14-DIP (0.300", 7.62mm) | Bulk | Active | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
SN74AC32NIC GATE OR 4CH 2-INP 14DIP |
1,364 | 0.67 |
|
Datasheet |
74AC | 14-DIP (0.300", 7.62mm) | Bulk | Active | OR Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
CD74HCT00EIC GATE NAND 4CH 2-INP 14DIP |
1,090 | 0.66 |
|
Datasheet |
74HCT | 14-DIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 20ns @ 4.5V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
SN74AUP2G14DCKRIC INVERT SCHMITT 2CH 2IN SC70-6 |
12,464 | 0.75 |
|
Datasheet |
74AUP | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Inverter | 2 | 2 | Schmitt Trigger | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V | 6.2ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|
SN74LVC3G06DCURIC INVERTER 3CH 3-INP 8VSSOP |
8,973 | 0.64 |
|
Datasheet |
74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Open Drain | 1.65V ~ 5.5V | 10 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|

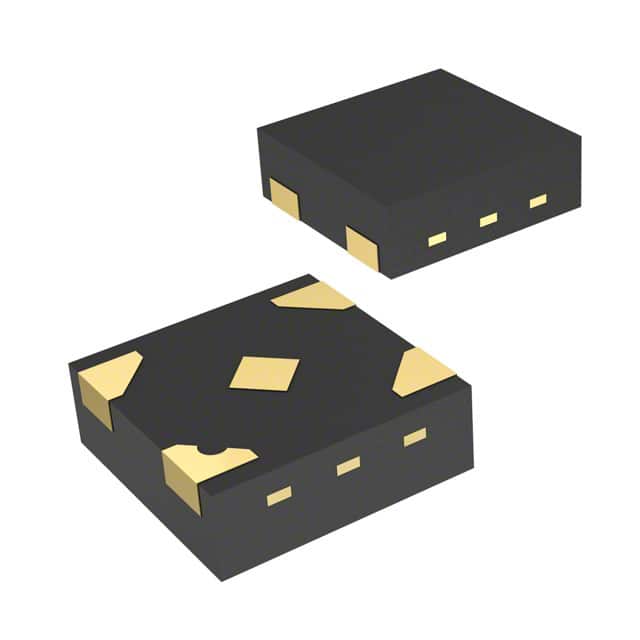

74AUP1G32FS3-7IC GATE OR 1CH 2-INP DFN0808-4 |
9,467 | 0.35 |
|
Datasheet |
74AUP | 4-XFDFN Exposed Pad | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.4ns @ 3.3V, 30pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | X2-DFN0808-4 |
|
SN74AC14NSRIC INVERT SCHMITT 6CH 6IN 14SO |
9,276 | 0.66 |
|
Datasheet |
74AC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 6 | Schmitt Trigger | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.5V ~ 1.1V | 2.2V ~ 3.9V | 10ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
|
SN74ACT08DRG3IC GATE AND 4CH 2-INP 14SOIC |
7,508 | 0.64 |
|
Datasheet |
74ACT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
CD74AC04M96IC INVERTER 6CH 1IN 14SOIC |
7,266 | 0.70 |
|
Datasheet |
74AC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 1.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.3V ~ 1.65V | 1.2V ~ 3.85V | 6.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
74LVC04AS14-13IC INVERTER 6CH 1-INP 14SO |
6,852 | 0.39 |
|
Datasheet |
74LVC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 1.65V ~ 5.5V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.3ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
SN74LVC3G04DCTRIC INVERTER 3CH 3-INP SM8 |
6,288 | 0.66 |
|
Datasheet |
74LVC | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | Inverter | 3 | 3 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.2ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SM8 |
|
|
74LVC14AS14-13IC INVERT SCHMITT 6CH 1-INP 14SO |
5,117 | 0.39 |
|
Datasheet |
74LVC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 10 µA | 24mA, 24mA | 0.4V ~ 0.8V | 1.7V ~ 2V | 4.8ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
CD4069UBPWRIC INVERTER 6CH 1-INP 14TSSOP |
4,720 | 0.71 |
|
Datasheet |
4000B | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1V ~ 2.5V | 4V ~ 12.5V | 50ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
SN74LVC1G08YZPRIC GATE AND 1CH 2-INP 5DSBGA |
11,737 | 0.65 |
|
Datasheet |
74LVC | 5-XFBGA, DSBGA | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | - | - | 4ns @ 5V, 50pF | -40°C ~ 85°C (TA) | - | - | Surface Mount | 5-DSBGA (1.4x0.9) |
|
|
SN74LS86ADRIC GATE XOR 4CH 2-INP 14SOIC |
20,767 | 0.64 |
|
Datasheet |
74LS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 4 | 2 | - | 4.75V ~ 5.25V | - | 400µA, 8mA | 0.8V | 2V | 30ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74ACT00PWRIC GATE NAND 4CH 2-INP 14TSSOP |
10,364 | 0.70 |
|
Datasheet |
74ACT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74HC32NSRIC GATE OR 4CH 2-INP 14SO |
4,785 | 0.67 |
|
Datasheet |
74HC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
|
|
SN74HC04ANSRIC INVERTER 6CH 1-INP 14SO |
3,605 | 0.00 |
|
- |
74HC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
|
|
SN74HC00ANSRIC GATE NAND 4CH 2-INP 14SO |
3,469 | 0.00 |
|
- |
74HC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.1V ~ 0.26V | 1.9V ~ 5.9V | 13ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
