Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AUC1G14DBVRG4IC INVERTER 1CH 1-INP SOT23-5 |
1,815 | 0.00 |
|
Datasheet |
74AUC | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Inverter | 1 | 1 | Schmitt Trigger | 0.8V ~ 2.7V | 10 µA | 9mA, 9mA | 0.22V ~ 0.58V | 0.5V ~ 1.56V | 2.5ns @ 2.5V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
74HC4002D-Q100,118IC GATE NOR 2CH 4-INP 14SO |
2,105 | 0.37 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NOR Gate | 2 | 4 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
CD74HC32EG4IC GATE OR 4CH 2-INP 14DIP |
4,084 | 0.00 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | OR Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
CD4093BEE4IC GATE NAND 4CH 2-INP 14DIP |
1,103 | 0.00 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | NAND Gate | 4 | 2 | Schmitt Trigger | 3V ~ 18V | 4 µA | 3.4mA, 3.4mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 130ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
MC74HC32ADTR2G-QIC GATE OR 4CH 2-INP 14TSSOP |
4,262 | 0.00 |
|
Datasheet |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
SN74HC03NG4IC GATE NAND 4CH 2-INP 14DIP |
1,003 | 0.00 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | NAND Gate | 4 | 2 | Open Drain | 2V ~ 6V | 2 µA | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 23ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
SN74HC05NG4IC INVERTER 6CH 1-INP 14DIP |
3,228 | 0.00 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | Inverter | 6 | 1 | Open Drain | 2V ~ 6V | 2 µA | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 20ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
SN74HC21NG4IC GATE AND 2CH 4-INP 14DIP |
4,133 | 0.00 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | AND Gate | 2 | 4 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 19ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
SN74HCU04NG4IC INVERTER 6CH 1-INP 14DIP |
1,982 | 0.00 |
|
Datasheet |
74HCU | 14-DIP (0.300", 7.62mm) | Tube | Discontinued at Digi-Key | Inverter | 6 | 1 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.7V ~ 4.8V | 14ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
XC7WH14GT,115IC INVERT SCHMITT 3CH 3INP 8XSON |
4,510 | 1.00 |
|
Datasheet |
7WH | 8-XFDFN | Tape & Reel (TR) | Active | Inverter | 3 | 3 | Schmitt Trigger | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|
SN74ACT04PWRE4IC INVERTER 6CH 1IN 14TSSOP |
3,604 | 0.00 |
|
Datasheet |
74ACT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74ACT04PWRG4IC INVERTER 6CH 1IN 14TSSOP |
3,492 | 0.00 |
|
Datasheet |
74ACT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74LV14APWRE4IC INVERTER 6CH 1-INP 14TSSOP |
1,647 | 0.00 |
|
Datasheet |
74LV | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.75V ~ 1.5V | 1.75V ~ 3.5V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|

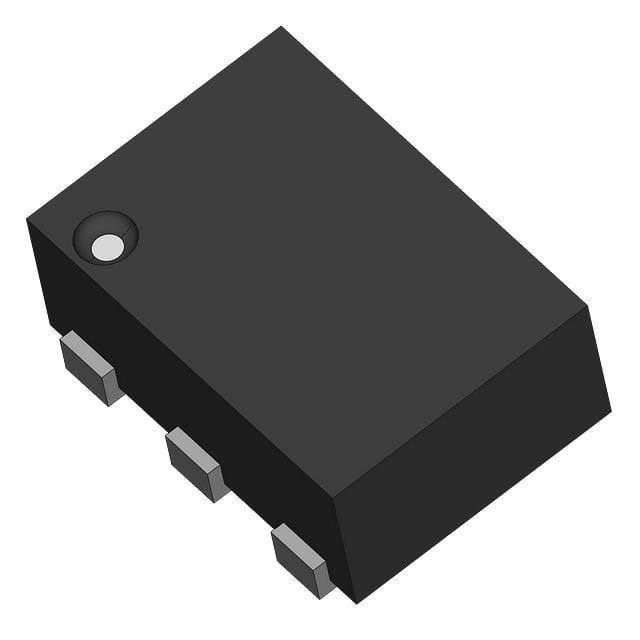

74AUP1G132GS,132IC GATE NAND 1CH 2-INP 6XSON |
4,761 | 0.25 |
|
Datasheet |
74AUP | 6-XFDFN | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | Schmitt Trigger | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.1V ~ 0.88V | 0.6V ~ 2.29V | 7.8ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|
HCF40107M013TRIC GATE NAND 2CH 2-INP 8SOIC |
1,866 | 0.00 |
|
Datasheet |
4000B | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | 2 | Open Drain | 3V ~ 20V | 100 µA | -, 136mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 8-SOIC |
|
M74HC09RM13TRIC GATE AND 4CH 2-INP 14SO |
2,044 | 0.00 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | Open Drain | 2V ~ 6V | 1 µA | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74AUP2G08GF,115IC GATE AND 2CH 2-INP 8XSON |
3,624 | 0.00 |
|
Datasheet |
74AUP | 8-XFDFN | Tape & Reel (TR) | Obsolete | AND Gate | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.35x1) |
|
|
74AUP3G04GF,115IC INVERTER 3CH 3-INP 8XSON |
2,989 | 0.00 |
|
Datasheet |
74AUP | 8-XFDFN | Tape & Reel (TR) | Obsolete | Inverter | 3 | 3 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 5.4ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.35x1) |
|
DM74ALS133MXIC GATE NAND 1CH 13-INP 16SOIC |
3,072 | 0.00 |
|
Datasheet |
74ALS | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 1 | 13 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 25ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 16-SOIC |
|
MC74LCX86DR2IC GATE XOR 4CH 2-INP 14SOIC |
1,395 | 0.00 |
|
Datasheet |
74LCX | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.8V | 2V | 6.5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
