Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

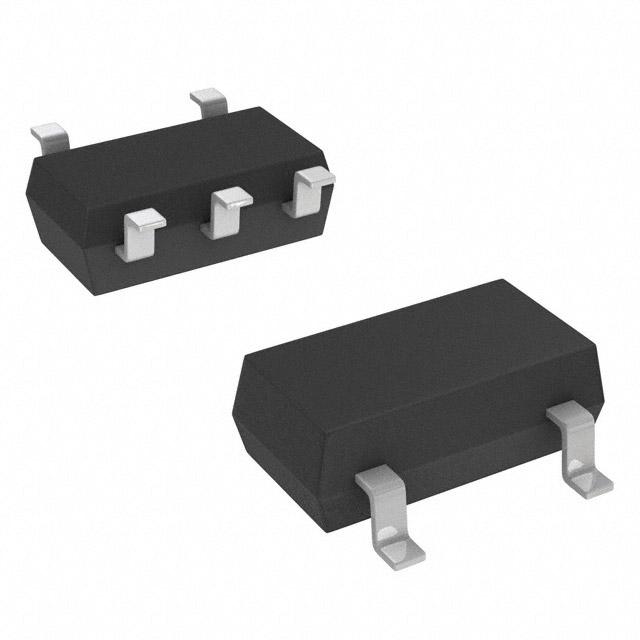

S-75V14ANC-5VA-TFGIC INVERT SCHMITT 1CH 1INP SC88A |
3,086 | 0.32 |
|
- |
S-75V | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | Inverter | 1 | 1 | Schmitt Trigger | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
|
S-75V32ANC-5V4-TFGIC GATE OR 1CH 2-INP SC88A |
1,297 | 0.32 |
|
- |
S-75V | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | OR Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V | 1.5V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
|
S-75V86ANC-5V8-TFGIC GATE XOR 1CH 2-INP SC88A |
4,228 | 0.32 |
|
- |
S-75V | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V | 1.5V | 9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
|
S-75VU04ANC-5V6TFGIC INVERTER 1CH 1-INP SC88A |
4,247 | 0.32 |
|
- |
S-75V | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Not For New Designs | Inverter | 1 | 1 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.3V | 1.7V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC88A-B-PKG |
|
SN74AUC2G08DCURG4IC GATE AND 2CH 2-INP 8VSSOP |
3,554 | 0.00 |
|
Datasheet |
74AUC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | AND Gate | 2 | 2 | - | 0.8V ~ 2.7V | 10 µA | 9mA, 9mA | 0V ~ 0.7V | 1.7V | 1.6ns @ 2.5V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 8-VSSOP |
|
DM74ALS1005MIC INVERTER 6CH 1-INP 14SOIC |
4,027 | 0.00 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | Open Collector | 4.5V ~ 5.5V | - | -, 24mA | 0.8V | 2V | 30ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
74F11PCIC GATE AND 3CH 3-INP 14MDIP |
4,476 | 0.00 |
|
Datasheet |
74F | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | AND Gate | 3 | 3 | - | 4.5V ~ 5.5V | - | 1mA, 20mA | 0.8V | 2V | 5.6ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-MDIP |
|
|
DM74ALS21AMIC GATE AND 2CH 4-INP 14SOIC |
1,300 | 0.00 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | AND Gate | 2 | 4 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 15ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
74LVC32AD,112IC GATE OR 4CH 2-INP 14SO |
1,791 | 0.51 |
|
Datasheet |
74LVC | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.8ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74VHC08MTRIC GATE AND 4CH 2-INP 14SO |
4,073 | 0.00 |
|
Datasheet |
74VHC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.9ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
HCF40106M013TRIC INVERT SCHMITT 6CH 1-INP 14SO |
3,464 | 0.00 |
|
Datasheet |
4000 | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 20V | 20 µA | 6.8mA, 6.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 120ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
MC74AC14NGIC INVERT SCHMITT 6CH 6IN 14DIP |
4,101 | 0.24 |
|
Datasheet |
74AC | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | Inverter | 6 | 6 | Schmitt Trigger | 2V ~ 6V | 4 µA | 24mA, 24mA | 0.5V ~ 1.1V | 2.2V ~ 3.9V | 10ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
74LVX32MTRIC GATE OR 4CH 2-INP 14SO |
1,115 | 0.00 |
|
Datasheet |
74LVX | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 3.6V | 2 µA | 4mA, 4mA | 0.5V ~ 0.8V | 1.5V ~ 2.4V | 10.1ns @ 3.3V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
SN74AHCT1G14DCKRG4IC INVERT SCHMITT 1CH 1IN SC70-5 |
4,271 | 0.00 |
|
Datasheet |
74AHCT | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Discontinued at Digi-Key | Inverter | 1 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 0.6V | 2V | 8ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
|
74AHCT1G04DCKRG4IC INVERTER 1CH 1-INP SC70-5 |
1,011 | 0.00 |
|
Datasheet |
74AHCT | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Discontinued at Digi-Key | Inverter | 1 | 1 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.7ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
74AHCT1G14DBVRG4IC INVERTER 1CH 1-INP SOT23-5 |
3,243 | 0.00 |
|
Datasheet |
74AHCT | SC-74A, SOT-753 | Tape & Reel (TR) | Discontinued at Digi-Key | Inverter | 1 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 0.6V | 2V | 8ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
74AHCT1G32DCKRG4IC GATE OR 1CH 2-INP SC70-5 |
4,184 | 0.00 |
|
Datasheet |
74AHCT | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Discontinued at Digi-Key | OR Gate | 1 | 2 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
74AHCT1G00DCKRG4IC GATE NAND 1CH 2-INP SC70-5 |
2,190 | 0.00 |
|
Datasheet |
74AHCT | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Discontinued at Digi-Key | NAND Gate | 1 | 2 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
74AHCT1G02DCKRG4IC GATE NOR 1CH 2-INP SC70-5 |
1,399 | 0.00 |
|
Datasheet |
74AHCT | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Obsolete | NOR Gate | 1 | 2 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
74VHC32PW,118IC GATE OR 4CH 2-INP 14TSSOP |
3,426 | 0.16 |
|
Datasheet |
74VHC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
