Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74ALS04BDRIC INVERTER 6CH 1-INP 14SOIC |
6,478 | 0.88 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 11ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74ALS08DRIC GATE AND 4CH 2-INP 14SOIC |
8,186 | 0.88 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 14ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
SN74HC00NSRIC GATE NAND 4CH 2-INP 14SO |
5,112 | 0.86 |
|
Datasheet |
74HC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
|
SN74LS02NIC GATE NOR 4CH 2-INP 14DIP |
2,549 | 1.00 |
|
Datasheet |
74LS | 14-DIP (0.300", 7.62mm) | Tube | Active | NOR Gate | 4 | 2 | - | 4.75V ~ 5.25V | - | 400µA, 16mA | 0.8V | 2V | 15ns @ 5V, 15pF | 0°C ~ 70°C (TA) | - | - | Through Hole | 14-PDIP |
|
CD74AC00EIC GATE NAND 4CH 2-INP 14DIP |
2,284 | 0.79 |
|
Datasheet |
74AC | 14-DIP (0.300", 7.62mm) | Tube | Active | NAND Gate | 4 | 2 | - | 1.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.3V ~ 1.65V | 1.2V ~ 3.85V | 7.3ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
CD74AC14EIC INVERT SCHMITT 6CH 6IN 14DIP |
267 | 0.78 |
|
Datasheet |
74AC | 14-DIP (0.300", 7.62mm) | Bulk | Active | Inverter | 6 | 6 | Schmitt Trigger | 1.5V ~ 5.5V | 4 µA | 24mA, 24mA | 1.6V | 3.4V | 10.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
SN74LVC2G86DCTRIC GATE XOR 2CH 2-INP SM8 |
10,434 | 0.89 |
|
Datasheet |
74LVC | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SM8 |
|
HCF4093YM013TRIC GATE NAND SCHMIT 4CH 2IN 14SO |
4,901 | 0.88 |
|
Datasheet |
4000 | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 3V ~ 20V | 20 µA | 6.8mA, 6.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 130ns @ 15V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
NC7WZ08K8XIC GATE AND 2CH 2-INP US8 |
4,658 | 0.48 |
|
Datasheet |
7WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
|
CD74AC04EIC INVERTER 6CH 1IN 14DIP |
2,323 | 0.79 |
|
Datasheet |
74AC | 14-DIP (0.300", 7.62mm) | Tube | Active | Inverter | 6 | 1 | - | 1.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.3V ~ 1.65V | 1.2V ~ 3.85V | 6.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
SN74LV21APWRIC GATE AND 2CH 4-INP 14TSSOP |
1,546 | 0.91 |
|
Datasheet |
74LV | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 4 | - | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.5V | 1.5V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74HCT32NIC GATE OR 4CH 2-INP 14DIP |
1,592 | 0.83 |
|
Datasheet |
74HCT | 14-DIP (0.300", 7.62mm) | Bulk | Active | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 4mA, 4mA | 0.8V | 2V | 22ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
SN74LV21ADGVRIC GATE AND 2CH 4-INP 14TVSOP |
1,344 | 0.34 |
|
Datasheet |
74LV | 14-TFSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 4 | - | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.5V | 1.5V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TVSOP |
|
|
SN74LV21ADRIC GATE AND 2CH 4-INP 14SOIC |
13,966 | 0.91 |
|
Datasheet |
74LV | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 4 | - | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.5V | 1.5V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
NC7WZ132K8XIC GATE NAND SCHMITT 2CH 2IN US8 |
8,242 | 0.51 |
|
Datasheet |
7WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | NAND Gate | 2 | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | 0.2V ~ 1.2V | 1.4V ~ 3.6V | 4.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|

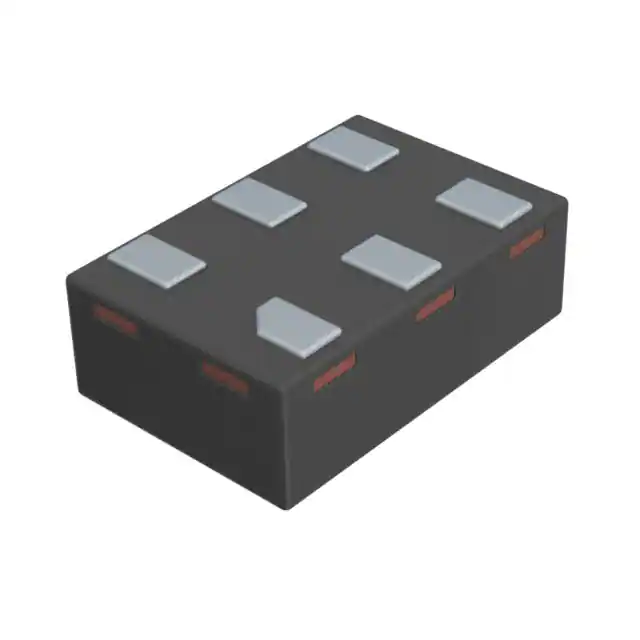

1P2GU04QDRYRQ1IC INVERTER 2CH 2-INP 6SON |
7,551 | 0.91 |
|
Datasheet |
74LVC | 6-UFDFN | Tape & Reel (TR) | Active | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | - | - | 3.5ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-SON (1.45x1) |
|
|
NC7WZ32K8XIC GATE OR 2CH 2-INP US8 |
6,014 | 0.49 |
|
Datasheet |
7WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | US8 |
|
|
SN74LS32NIC GATE OR 4CH 2-INP 14DIP |
2,133 | 1.00 |
|
Datasheet |
74LS | 14-DIP (0.300", 7.62mm) | Tube | Active | OR Gate | 4 | 2 | - | 4.75V ~ 5.25V | - | 400µA, 8mA | 0.8V | 2V | 22ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
CD74ACT05EIC INVERTER OD 6CH 1IN 14DIP |
1,882 | 0.42 |
|
Datasheet |
74ACT | 14-DIP (0.300", 7.62mm) | Tube | Active | Inverter | 6 | 1 | Open Drain | 4.5V ~ 5.5V | 4 µA | -, 24mA | 0.8V | 2V | 10.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
|
|
SN74LVC2G08IDCTRQ1IC GATE AND 2CH 2-INP SM8 |
4,164 | 0.94 |
|
Datasheet |
74LVC | 8-LSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.8ns @ 5V, 50pF | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | SM8 |
