Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74HCU7204PWRG4IC INVERTER 2CH 2-INP 8TSSOP |
1,303 | 0.00 |
|
Datasheet |
74HCU | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 2 | 2 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.3V ~ 1.1V | 1.7V ~ 4.8V | 14ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
SN74LS38NE4IC GATE NAND 4CH 2-INP 14DIP |
2,473 | 1.00 |
|
Datasheet |
74LS | 14-DIP (0.300", 7.62mm) | Tube | Active | NAND Gate | 4 | 2 | Open Collector | 4.75V ~ 5.25V | 12 mA | 250µA, 24mA | 0.8V | 2V | 32ns @ 5V, 45pF | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
|
SN74LS05NE4IC INVERTER 6CH 6-INP 14DIP |
3,456 | 0.48 |
|
Datasheet |
74LS | 14-DIP (0.300", 7.62mm) | Tube | Active | Inverter | 6 | 6 | Open Collector | 4.75V ~ 5.25V | 6.6 mA | 100µA, 8mA | 0.8V | 2V | 32ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Through Hole | 14-PDIP |
|
M74HC03RM13TRIC GATE NAND 4CH 2-INP 14SO |
4,861 | 0.00 |
|
Datasheet |
74HC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | Open Drain | 2V ~ 6V | 1 µA | -, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 10ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
M74HCT04RM13TRIC INVERTER 6CH 1-INP 14SO |
4,937 | 0.00 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 18ns @ 4.5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
M74HCT08RM13TRIC GATE AND 4CH 2-INP 14SO |
1,102 | 0.00 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 21ns @ 4.5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
74LVXU04TTRIC INVERTER 6CH 1-INP 14TSSOP |
1,700 | 0.00 |
|
Datasheet |
74LVX | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 2V ~ 3.6V | 2 µA | 4mA, 4mA | 0.3V | 1.7V | 11.4ns @ 3.3V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74VHC02TTRIC GATE NOR 4CH 2-INP 14TSSOP |
4,194 | 0.00 |
|
Datasheet |
74VHC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | NOR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74VHCT00ATTRIC GATE NAND 4CH 2-INP 14TSSOP |
2,871 | 0.00 |
|
Datasheet |
74VHCT | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
74VHCT08AMTRIC GATE AND 4CH 2-INP 14SO |
4,774 | 0.00 |
|
Datasheet |
74VHCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
M74HCU04TTRIC INVERTER 6CH 1-INP 14TSSOP |
2,257 | 0.00 |
|
Datasheet |
74HCU | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.7V ~ 4.8V | 10ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
74LV14DB,118IC INVERT SCHMITT 6CH 1IN 14SSOP |
3,962 | 0.00 |
|
Datasheet |
74LV | 14-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 1V ~ 5.5V | 40 µA | 12mA, 12mA | 0.3V ~ 1.1V | 1.4V ~ 3.85V | 15ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|

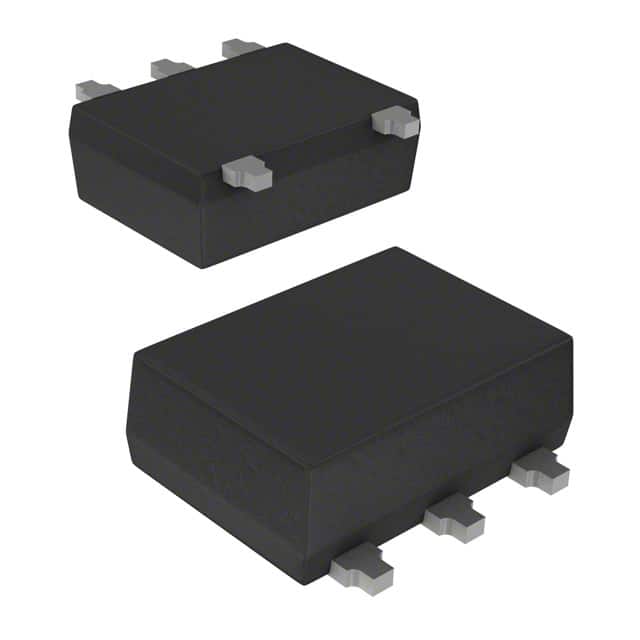

74AUP1G04GTRIC INVERTER 1CH 1-INP SOT665 |
4,041 | 0.00 |
|
Datasheet |
74AUP | SOT-665 | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | - | 1.2V ~ 3.6V | 100 nA | 10mA, 10mA | 0.7V ~ 0.8V | 1.6V ~ 2V | 3.8ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-665 |
|
74AUP2G00GF,115IC GATE NAND 2CH 2-INP 8XSON |
3,317 | 0.63 |
|
Datasheet |
74AUP | 8-XFDFN | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.5ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 8-XSON (1.35x1) |
|
NC7SP14L6XIC INVERTER 1CH 1-INP 6MICROPAK |
3,465 | 0.53 |
|
Datasheet |
7SP | 6-UFDFN | Bulk | Active | Inverter | 1 | 1 | Schmitt Trigger | 0.9V ~ 3.6V | 900 nA | 2.6mA, 2.6mA | 0.1V ~ 0.6V | 0.6V ~ 2.6V | 9.2ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
|
NL27WZ00USG-F22190IC GATE NAND 2CH 2-INP US8 |
2,372 | 0.00 |
|
Datasheet |
27WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | US8 |
|
|
NL27WZ32USG-L22190IC GATE OR 2CH 2-INP US8 |
4,467 | 0.00 |
|
Datasheet |
27WZ | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Obsolete | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | US8 |
|
74LVC2GU04DCKTG4IC INVERTER 2CH 2-INP SC70-6 |
2,221 | 0.00 |
|
Datasheet |
74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Discontinued at Digi-Key | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.41V ~ 1.38V | 1.24V ~ 4.13V | 3.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-6 |
|
SN74LVC2G00DCUTG4IC GATE NAND 2CH 2-INP 8VSSOP |
4,704 | 0.00 |
|
Datasheet |
74LVC | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 3.3ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 8-VSSOP |
|
SN74LVC2G04DBVTG4IC INVERTER 2CH 2-INP SOT23-6 |
3,855 | 0.00 |
|
Datasheet |
74LVC | SOT-23-6 | Tape & Reel (TR) | Discontinued at Digi-Key | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.2ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-6 |
