Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DM74AS1004AMIC INVERTER 6CH 1-INP 14SOIC |
1,385 | 0.00 |
|
Datasheet |
74AS | 14-SOIC (0.154", 3.90mm Width) | Bag | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 48mA, 48mA | 0.8V | 2V | 4ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
SN74F04DE4IC INVERTER 6CH 1-INP 14SOIC |
1,863 | 0.00 |
|
Datasheet |
74F | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 1mA, 20mA | 0.8V | 2V | 5ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74F32DG4IC GATE OR 4CH 2-INP 14SOIC |
4,161 | 0.00 |
|
Datasheet |
74F | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 1mA, 20mA | 0.8V | 2V | 5.6ns @ 5V, - | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
TC7WH02FK(TE85L)IC GATE NOR 2CH 2-INP US8 |
2,217 | 0.00 |
|
Datasheet |
7WH | 8-VFSOP (0.091", 2.30mm Width) | Cut Tape (CT) | Obsolete | NOR Gate | 2 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP |
|
|
TC7W00FKTE85LFIC GATE NAND 2CH 2-INP 8SSOP |
1,603 | 0.00 |
|
Datasheet |
TC7W | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 2 | 2 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 13ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 8-SSOP |
|
NLV27WZ14DFT2GIC INVERT SCHMITT 2CH 2-INP SC88 |
4,364 | 0.43 |
|
Datasheet |
27WZ | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Obsolete | Inverter | 2 | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | 0.4V ~ 1.2V | 1.8V ~ 3.6V | 4.9ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88/SC70-6/SOT-363 |
|
|
CD4002BMG4IC GATE NOR 2CH 4-INP 14SOIC |
4,011 | 0.00 |
|
Datasheet |
4000B | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NOR Gate | 2 | 4 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
74AC14SJXIC INVERT SCHMITT 6CH 6IN 14SOP |
1,962 | 1.00 |
|
Datasheet |
74AC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 6 | Schmitt Trigger | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.5V ~ 1.1V | 2.2V ~ 3.9V | 10ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
DM74AS1032ANIC GATE OR 4CH 2-INP 14MDIP |
4,777 | 0.00 |
|
Datasheet |
74AS | 14-DIP (0.300", 7.62mm) | Tube | Obsolete | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 48mA, 48mA | 0.8V | 2V | 6.3ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Through Hole | 14-MDIP |
|

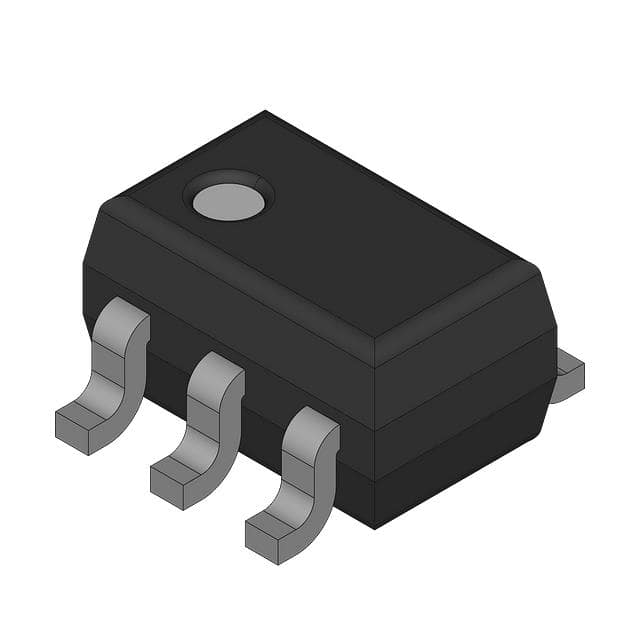

V62/04733-01XEIC GATE AND 1CH 2-INP SC70-5 |
1,001 | 1.00 |
|
Datasheet |
74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
|
|
SN7406DE4IC INVERTER 6CH 1-INP 14SOIC |
1,676 | 0.00 |
|
Datasheet |
7400 | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Inverter | 6 | 1 | Open Collector | 4.75V ~ 5.25V | - | -, 40mA | 0.8V | 2V | 23ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
NC7SP04L6XIC INVERTER 1CH 1-INP 6MICROPAK |
4,377 | 0.00 |
|
Datasheet |
7SP | 6-UFDFN | Tape & Reel (TR) | Obsolete | Inverter | 1 | 1 | - | 0.9V ~ 3.6V | 900 nA | 2.6mA, 2.6mA | 0.7V ~ 0.9V | 1.6V ~ 2.1V | 9.2ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 6-MicroPak |
|
NC7NP14L8XIC INVERTER 3CH 3-INP 8MICROPAK |
3,856 | 0.00 |
|
Datasheet |
7NP | 8-UFQFN | Tape & Reel (TR) | Obsolete | Inverter | 3 | 3 | Schmitt Trigger | 0.9V ~ 3.6V | 900 nA | 2.6mA, 2.6mA | 0.1V ~ 0.6V | 0.6V ~ 2.6V | 9.2ns @ 3.3V, 30pF | -40°C ~ 85°C | - | - | Surface Mount | 8-MicroPak™ |
|
NLV74HCT14ADR2GIC INVERT SCHMITT 6CH 1IN 14SOIC |
1,149 | 0.69 |
|
- |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 32ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
TC74LCX14FK(EL,K)IC INVERTER 6CH 1-INP 14VSSOP |
1,178 | 0.17 |
|
Datasheet |
74LCX | 14-VFSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 1.65V ~ 3.6V | 10 µA | 24mA, 24mA | 0.3V ~ 0.6V | 1.35V ~ 2.2V | 6.5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-VSSOP |
|
|
SN74LS26DE4IC GATE NAND 4CH 2-INP 14SOIC |
1,444 | 0.00 |
|
Datasheet |
74LS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | Open Collector | 4.75V ~ 5.25V | - | -, 8mA | 0.8V | 2V | 32ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
V62/04732-02XEIC GATE NAND 1CH 2-INP SC70-5 |
2,688 | 0.00 |
|
Datasheet |
74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-70-5 |
|
CD74ACT32M96IC GATE OR 4CH 2-INP 14SOIC |
4,106 | 0.84 |
|
Datasheet |
74ACT | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.8V | 2V | 12.1ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
MM74HCT04SJXIC INVERTER 6CH 1-INP 14SOP |
3,466 | 0.00 |
|
Datasheet |
74HCT | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 2 µA | 4.8mA, 4.8mA | 0.8V | 2V | 20ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
TC74VHC14FK(EL,K)IC INVERTER 6CH 1-INP 14VSSOP |
4,015 | 0.17 |
|
- |
TC74VHC | 14-VFSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-VSSOP |
