Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74AC05SCXIC INVERTER OD 6CH 1IN 14SOIC |
4,193 | 0.00 |
|
Datasheet |
74AC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Open Drain | 2V ~ 6V | 4 µA | -, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 14ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74ACTQ08SJXIC GATE AND 4CH 2-INP 14SOP |
2,174 | 0.00 |
|
Datasheet |
74ACTQ | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 6.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74ALVC32MIC GATE OR 4CH 2-INP 14SOIC |
1,289 | 0.00 |
|
Datasheet |
74ALVC | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 1.65V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.8ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
74LCX00MIC GATE NAND 4CH 2-INP 14SOIC |
2,925 | 0.00 |
|
Datasheet |
74LCX | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.2ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74LCX38SJXIC GATE NAND 4CH 2-INP 14SOP |
1,757 | 0.00 |
|
Datasheet |
74LCX | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | Open Drain | 2V ~ 3.6V | 10 µA | -, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74LVQ86SCXIC GATE XOR 4CH 2-INP 14SOIC |
3,010 | 0.00 |
|
Datasheet |
74LVQ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 3.6V | 2 µA | 12mA, 12mA | 0.8V | 2V | 11.5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74ALS05AMXIC INVERTER 6CH 1-INP 14SOIC |
4,780 | 0.00 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Open Collector | 4.5V ~ 5.5V | - | -, 8mA | 0.8V | 2V | 54ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74ALS1000AMIC GATE NAND 4CH 2-INP 14SOIC |
1,871 | 0.00 |
|
Datasheet |
74ALS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 2.6mA, 24mA | 0.8V | 2V | 8ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
74AC11SJIC GATE AND 3CH 3-INP 14SOP |
2,016 | 0.00 |
|
Datasheet |
74AC | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74AC11SJXIC GATE AND 3CH 3-INP 14SOP |
3,465 | 0.00 |
|
Datasheet |
74AC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74AC32SJIC GATE OR 4CH 2-INP 14SOP |
2,280 | 0.00 |
|
Datasheet |
74AC | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|

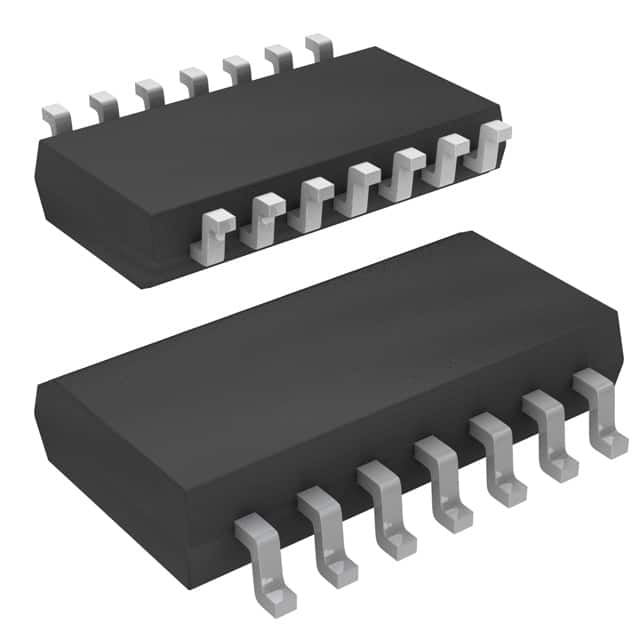

DM74ALS04BSJXIC INVERTER 6CH 1-INP 14SOP |
4,004 | 0.00 |
|
Datasheet |
74ALS | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 11ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOP |
|
74AC11MTCIC GATE AND 3CH 3-INP 14TSSOP |
4,180 | 0.00 |
|
Datasheet |
74AC | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74AC11MTCXIC GATE AND 3CH 3-INP 14TSSOP |
3,888 | 0.00 |
|
Datasheet |
74AC | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
74ACT04MTCIC INVERTER 6CH 1IN 14TSSOP |
1,900 | 0.69 |
|
Datasheet |
74ACT | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | 4 µA | 24mA, 24mA | 0.8V | 2V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74ACTQ14MTCIC INVERT SCHMIT 6CH 1IN 14TSSOP |
4,839 | 0.00 |
|
Datasheet |
74ACTQ | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 10ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74ACTQ14MTCXIC INVERT SCHMIT 6CH 1IN 14TSSOP |
1,496 | 0.00 |
|
Datasheet |
74ACTQ | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 10ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74LCX32MTCIC GATE OR 4CH 2-INP 14TSSOP |
3,964 | 0.62 |
|
Datasheet |
74LCX | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
74LCX86SJIC GATE XOR 4CH 2-INP 14SOP |
2,333 | 0.00 |
|
Datasheet |
74LCX | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 6.5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
74LCX86SJXIC GATE XOR 4CH 2-INP 14SOP |
2,772 | 0.00 |
|
Datasheet |
74LCX | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 6.5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
