Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SN74AHC32NSIC GATE OR 4CH 2-INP 14SO |
2,594 | 0.12 |
|
Datasheet |
74AHC | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
SN74LVC08ANSIC GATE AND 4CH 2-INP 14SO |
3,955 | 0.15 |
|
- |
74LVC | 14-SOIC (0.209", 5.30mm Width) | Tube | Active | AND Gate | 4 | 2 | - | 1.65V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.9ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
SN74LS38DBIC GATE NAND 4CH 2-INP 14SSOP |
2,993 | 0.57 |
|
Datasheet |
74LS | 14-SSOP (0.209", 5.30mm Width) | Bulk | Obsolete | NAND Gate | 4 | 2 | Open Collector | 4.75V ~ 5.25V | 12 mA | 250µA, 24mA | 0.8V | 2V | 32ns @ 5V, 45pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SSOP |
|
SN74LS38NSIC GATE NAND 4CH 2-INP 14SO |
2,100 | 0.73 |
|
Datasheet |
74LS | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | Open Collector | 4.75V ~ 5.25V | 12 mA | 250µA, 24mA | 0.8V | 2V | 32ns @ 5V, 45pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SO |
|
SN74HC14APWIC INVERTER 6CH 6-INP 14TSSOP |
4,523 | 0.81 |
|
- |
74HC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | Inverter | 6 | 6 | Schmitt Trigger | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 1V ~ 3.2V | 1.5V ~ 4.2V | 19ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74F20NSIC GATE NAND 2CH 4-INP 14SO |
3,316 | 0.25 |
|
Datasheet |
74F | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | NAND Gate | 2 | 4 | - | 4.5V ~ 5.5V | 5.1 mA | 1mA, 20mA | 0.8V | 2V | 6ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SO |
|

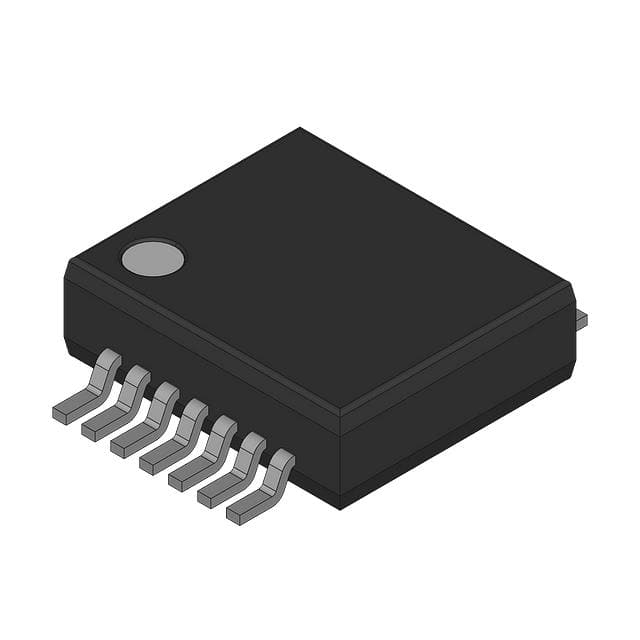

SN74LVC08ADBIC GATE AND 4CH 2-INP 14SSOP |
2,011 | 0.10 |
|
- |
74LVC | 14-SSOP (0.209", 5.30mm Width) | Bulk | Active | AND Gate | 4 | 2 | - | 1.65V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.9ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SSOP |
|
|
SN74AC32NSIC GATE OR 4CH 2-INP 14SO |
3,106 | 0.18 |
|
Datasheet |
74AC | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
|
SN74LS30NSIC GATE NAND 1CH 8-INP 14SO |
4,500 | 0.00 |
|
Datasheet |
74LS | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | NAND Gate | 1 | 8 | - | 4.75V ~ 5.25V | 1.1 mA | 400µA, 8mA | 0.8V | 2V | 6.5ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SO |
|
SN74HCU04APWIC INVERTER 6CH 6-INP 14TSSOP |
4,182 | 0.12 |
|
- |
74HCU | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | Inverter | 6 | 6 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.7V ~ 4.8V | 10ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
|
SN74LS32NSIC GATE OR 4CH 2-INP 14SO |
2,410 | 0.29 |
|
- |
74LS | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 4.75V ~ 5.25V | 9.8 mA | 400µA, 8mA | 0.8V | 2V | 22ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SO |
|
|
CD4002BNSIC GATE NOR 2CH 4-INP 14SO |
2,507 | 0.19 |
|
Datasheet |
- | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | NOR Gate | 2 | 4 | - | 3V ~ 18V | 5 µA | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
SN74HC20ANIC GATE NAND 2CH 4-INP 14DIP |
4,302 | 0.00 |
|
- |
74HC | 14-DIP (0.300", 7.62mm) | Bulk | Active | NAND Gate | 2 | 4 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 19ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Through Hole | 14-PDIP |
|
|
SN74HC11NSIC GATE AND 3CH 3-INP 14SO |
4,990 | 0.15 |
|
Datasheet |
74HC | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SO |
|
|
CD4001BNSIC GATE NOR 4CH 2-INP 14SO |
3,045 | 0.00 |
|
Datasheet |
- | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | NOR Gate | 4 | 2 | - | 3V ~ 18V | 5 µA | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-SO |
|

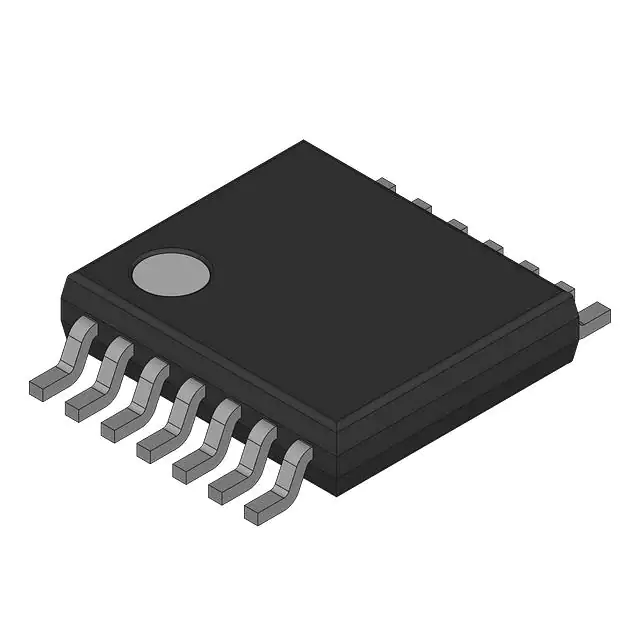

SN74AHC14PWRG3-JIC INVERTER 6CH 6-INP 14TSSOP |
3,254 | 1.00 |
|
- |
74AHC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | Inverter | 6 | 6 | Schmitt Trigger | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 1.9V ~ 3.35V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
|
SN74LV14ANS-PIC INVERT SCHMITT 6CH 6-INP 14SO |
2,137 | 0.00 |
|
- |
74LV | 14-SOIC (0.209", 5.30mm Width) | Bulk | Active | Inverter | 6 | 6 | Schmitt Trigger | 2V ~ 5.5V | 20 µA | 12mA, 12mA | 0.75V ~ 1.5V | 1.75V ~ 3.5V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
SN74LVC04AQDRCTIC INVERTER 6CH 6-INP 14SOIC |
3,923 | 0.00 |
|
- |
74LVC | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | Inverter | 6 | 6 | - | 1.65V ~ 3.6V | 1 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.3ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SOIC |
|
|
SN74LS03NSIC GATE NAND 4CH 2-INP 14SO |
4,206 | 0.49 |
|
Datasheet |
74LS | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | Open Collector | 4.75V ~ 5.25V | 4.4 mA | 100µA, 8mA | 0.8V | 2V | 32ns @ 5V, 15pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SO |
|
|
CD74HC132E-NGIC GATE NAND 4CH 2-INP 14DIP |
4,260 | 0.00 |
|
Datasheet |
74HC | 14-DIP (0.300", 7.62mm) | Bulk | Obsolete | NAND Gate | 4 | 2 | Schmitt Trigger | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 1V ~ 3V | 1.5V ~ 4.2V | 21ns @ 6V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-PDIP |
