Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4081BNIC GATE AND 4CH 2-INP DIP-14 |
4,479 | 0.00 |
|
Datasheet |
4000B | 14-DIP (0.300", 7.62mm) | Tube | Active | AND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.4mA, 3.4mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Through Hole | 14-DIP |
|
|
TC74HC132AF(EL,F)IC GATE NAND 4CH 2-INP 14SOIC |
4,615 | 0.00 |
|
Datasheet |
74HC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.9V ~ 2.6V | 1.5V ~ 4.2V | 19ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
TC74HC21AF(EL,F)IC GATE AND 2CH 4-INP 14SOIC |
4,641 | 0.00 |
|
Datasheet |
74HC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | AND Gate | 2 | 4 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 17ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
TC74HCU04AF(EL,F)IC INVERTER 6CH 1-INP 14SOIC |
4,359 | 0.00 |
|
Datasheet |
74HCU | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 6 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.2V | 1.7V ~ 4.8V | 10ns @ 6V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
TC74HCT04AF(EL,F)IC INVERTER 6CH 1-INP 14SOIC |
2,870 | 0.00 |
|
Datasheet |
74HCT | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 6 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 16ns @ 5.5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
NL17SG32MU3TCGIC GATE OR 1CH 2-INP 6UDFN |
4,277 | 0.00 |
|
Datasheet |
MiniGate™ | 6-UFDFN | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 0.9V ~ 3.6V | 500 nA | 8mA, 8mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.4ns @ 3.3V, 30pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
|
MC74VHC1G86MU3TCGIC GATE XOR 1CH 2-INP 6UDFN |
3,775 | 0.00 |
|
Datasheet |
74HC | 6-UFDFN | Tape & Reel (TR) | Active | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
|
NL17SG08CMUTCGSINGLE 2-INPUT AND GATE |
1,045 | 0.00 |
|
Datasheet |
NL17SG08 MiniGate™ | 6-UFDFN | Bulk | Discontinued at Digi-Key | AND Gate | 1 | 2 | - | 0.9V ~ 3.6V | 500 nA | 8mA, 8mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.9ns @ 3.3V, 30pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
NLV74HCU04ADR2GUNBUFFERED HEX INVERTER |
4,899 | 0.00 |
|
Datasheet |
74HCU | 14-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | Inverter | 6 | 6 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.3V ~ 1.1V | 1.7V ~ 4.8V | 12ns @ 6V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
|
MC74VHC1G86MU2TCGSINGLE 2-INPUT EXCLUSIVE OR GATE |
4,360 | 0.00 |
|
Datasheet |
74VHC | 6-UFDFN | Bulk | Discontinued at Digi-Key | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
|
MC74VHC1GT32MU2TCGSINGLE 2-INPUT OR GATE, TTL LEVE |
2,105 | 0.00 |
|
Datasheet |
74VHC | 6-UFDFN | Bulk | Discontinued at Digi-Key | OR Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.28V ~ 0.8V | 1V ~ 2V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1.2x1) |
|
M74VHC1GT08DFT2GSINGLE 2-INPUT AND GATE, TTL LEV |
4,444 | 0.35 |
|
Datasheet |
74VHC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Obsolete | AND Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.28V ~ 0.8V | 1V ~ 2V | 7.9ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|

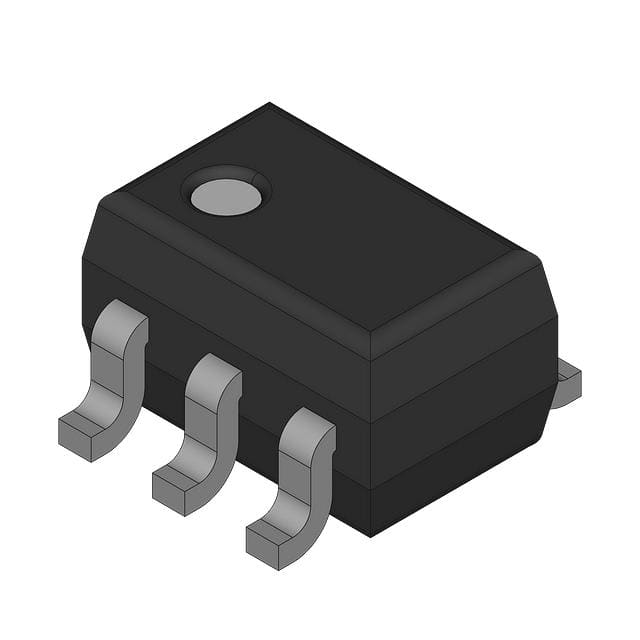

M74VHC1GT04DFT1GSINGLE INVERTER, TTL LEVEL |
2,906 | 1.00 |
|
Datasheet |
74VHC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Obsolete | Inverter | 1 | 1 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.28V ~ 0.8V | 1V ~ 2V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
MC74VHC04DTR2G-QHEX INVERTER |
4,198 | 0.00 |
|
Datasheet |
74VHC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Discontinued at Digi-Key | Inverter | 6 | 6 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP |
|
|
NL17SZ02MU3TCGSINGLE 2-INPUT NOR GATE |
3,273 | 0.00 |
|
Datasheet |
17SZ | 6-UFDFN | Bulk | Discontinued at Digi-Key | NOR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 4.3ns @ 5V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 6-UDFN (1x1) |
|
|
NLV74HCT04ADR2GHEX INVERTER WITH LSTTL-COMPLIAN |
2,771 | 0.00 |
|
Datasheet |
74HCT | 14-SOIC (0.154", 3.90mm Width) | Bulk | Discontinued at Digi-Key | Inverter | 6 | 6 | - | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.8V | 2V | 17ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
|
|
MC74VHC1GT86DFT1G-QSINGLE 2-INPUT EXCLUSIVE OR GATE |
3,035 | 0.00 |
|
Datasheet |
74VHC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Discontinued at Digi-Key | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.28V ~ 0.8V | 1V ~ 2V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
MC74VHC1GT86DFT2G-QSINGLE 2-INPUT EXCLUSIVE OR GATE |
1,862 | 0.00 |
|
Datasheet |
74VHC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Discontinued at Digi-Key | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.28V ~ 0.8V | 1V ~ 2V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
|
NLV74AC86DTR2GQUAD 2-INPUT EXCLUSIVE OR GATE |
3,208 | 0.00 |
|
Datasheet |
74AC | 14-TSSOP (0.173", 4.40mm Width) | Bulk | Discontinued at Digi-Key | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 6V | 4 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8.5ns @ 5V, 50pF | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 14-TSSOP |
|
|
MC74VHC1G86DFT1G-QSINGLE 2-INPUT EXCLUSIVE OR GATE |
1,454 | 0.00 |
|
Datasheet |
74VHC | 5-TSSOP, SC-70-5, SOT-353 | Bulk | Discontinued at Digi-Key | XOR (Exclusive OR) | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 8.8ns @ 5V, 50pF | -55°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | SC-88A (SC-70-5/SOT-353) |
