Gates and Inverters
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LVC1G06GV,125IC INVERTER 1CH 1-INP SC74A |
18,291 | 0.36 |
|
Datasheet |
74LVC | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Open Drain | 1.65V ~ 5.5V | 200 µA | -, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 4ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SC-74A |
|
74LVC2G14GW,125IC INVERT SCHMITT 2CH 2IN 6TSSOP |
14,448 | 1.00 |
|
Datasheet |
74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | Inverter | 2 | 2 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.25V ~ 1.2V | 1.7V ~ 3.8V | 4.7ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-TSSOP |
|
SN74AHCT1G14DBVRIC INVERTER 1CH 1-INP SOT23-5 |
14,177 | 0.40 |
|
Datasheet |
74AHCT | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 0.6V | 2V | 8ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
|
|
74LVC1G27GW,125IC GATE NOR 1CH 3-INP 6TSSOP |
13,375 | 1.00 |
|
Datasheet |
74LVC | 6-TSSOP, SC-88, SOT-363 | Tape & Reel (TR) | Active | NOR Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 0.95V ~ 3.4V | 4.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-TSSOP |
|
|
SN74AHCT1G00DBVRIC GATE NAND 1CH 2-INP SOT23-5 |
13,216 | 0.40 |
|
Datasheet |
74AHCT | SC-74A, SOT-753 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 15pF | -40°C ~ 125°C | - | - | Surface Mount | SOT-23-5 |
.jpg)
|
74AHC1G14GW-Q100,1IC INVERT SCHMITT 1CH 1IN 5TSSOP |
11,168 | 0.39 |
|
Datasheet |
74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.9V ~ 1.65V | 2.2V ~ 3.85V | 10.6ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|
|
SN74AHC1G09DBVRIC GATE AND 1CH 2-INP SOT23-5 |
11,159 | 0.48 |
|
Datasheet |
74AHC | SC-74A, SOT-753 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | Open Drain | 2V ~ 5.5V | 1 µA | -, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -55°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
74AHC1G32GW,125IC GATE OR 1CH 2-INP 5TSSOP |
10,680 | 0.00 |
|
Datasheet |
74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
|
74HC1G14GW,125IC INVERT SCHMITT 1CH 1IN 5TSSOP |
10,441 | 0.35 |
|
Datasheet |
74HC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 2V ~ 6V | 20 µA | 2.6mA, 2.6mA | 0.3V ~ 1.2V | 1.5V ~ 4.2V | 32ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
|
74AHC1G09GW,125IC GATE AND 1CH 2-INP 5TSSOP |
10,321 | 0.00 |
|
Datasheet |
74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | Open Drain | 2V ~ 5.5V | 1 µA | -, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
|
74LVC1G14GW-Q100,1IC INVERT SCHMITT 1CH 1IN 5TSSOP |
8,097 | 0.37 |
|
Datasheet |
74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.46V ~ 1.58V | 1.14V ~ 2.79V | 6.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|
|
74LVC1G08GW-Q100,1IC GATE AND 1CH 2-INP 5TSSOP |
7,511 | 0.36 |
|
Datasheet |
74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|
|
74LVC1G04GW-Q100HIC INVERTER 1CH 1-INP 5TSSOP |
4,021 | 0.36 |
|
Datasheet |
74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|
|
74AHC1G08GW-Q100,1IC GATE AND 1CH 2-INP 5TSSOP |
3,816 | 0.37 |
|
Datasheet |
74AHC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.9ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 5-TSSOP |
|
|
74LVC1G08GV-Q100,1IC GATE AND 1CH 2-INP SC74A |
2,795 | 0.08 |
|
Datasheet |
74LVC | SC-74A, SOT-753 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | SC-74A |
|

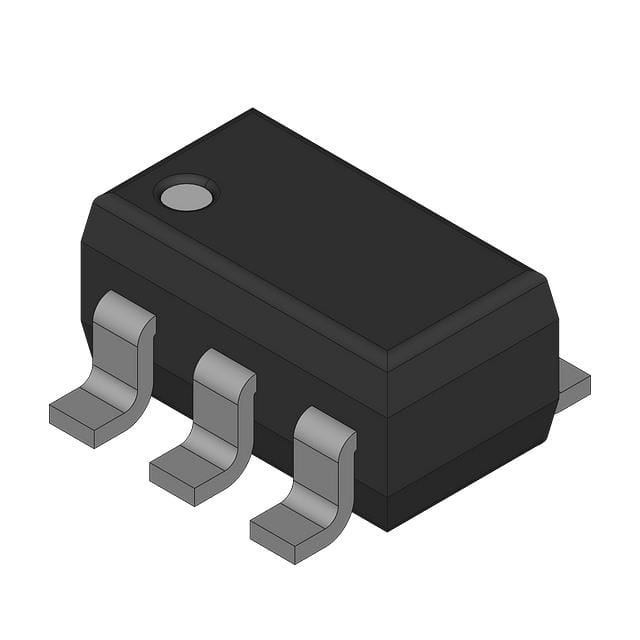

74HC1G00GV,125IC GATE NAND 1CH 2-INP SC74A |
2,450 | 1.00 |
|
Datasheet |
74HC | SC-74A, SOT-753 | Tape & Reel (TR) | Active | NAND Gate | 1 | 2 | - | 2V ~ 6V | 20 µA | 2.6mA, 2.6mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 23ns @ 6V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | SC-74A |
|
|
74LVC1G02GW,125IC GATE NOR 1CH 2-INP 5TSSOP |
1,303 | 0.00 |
|
Datasheet |
74LVC | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | NOR Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
|
74LVC1G08GV,125IC GATE AND 1CH 2-INP SC74A |
890,678 | 0.38 |
|
Datasheet |
74LVC | SC-74A, SOT-753 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | SC-74A |
|
|
SN74AHC1GU04DBVRIC INVERTER 1CH 1-INP SOT23-5 |
16,999 | 0.46 |
|
Datasheet |
74AHC | SC-74A, SOT-753 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.3V ~ 1.1V | 1.7V ~ 4.4V | 7ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SOT-23-5 |
|
SN74AHCT1G32DCKRIC GATE OR 1CH 2-INP SC70-5 |
5,931 | 0.39 |
|
Datasheet |
74AHCT | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | OR Gate | 1 | 2 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | SC-70-5 |
