Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

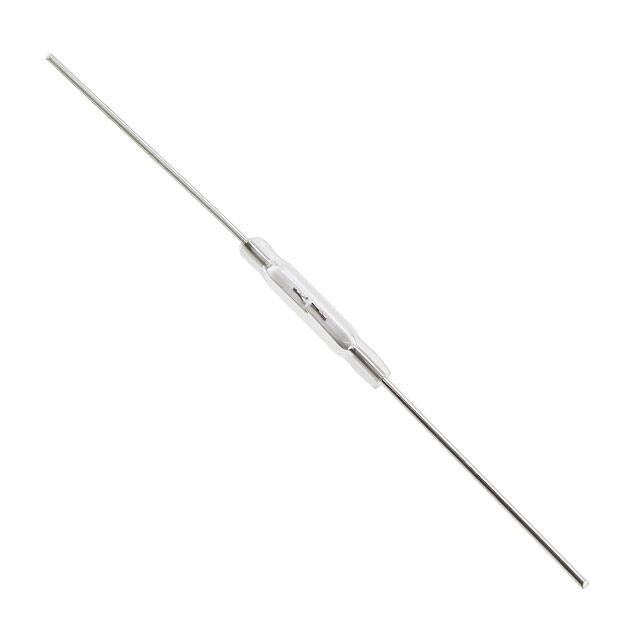

SW GR560/10-15 ATSWITCH REED SPST-NO 1A 125V |
4,044 | 0.00 |
|
Datasheet |
GR560 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 10 ~ 15AT | 6 ~ 21AT | 1A (AC/DC) | 125 V | 100 V | 10VA | 0.6 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -40°C ~ 125°C | 0.2 pF | 1.5A (AC/DC) |
|
SW GR560/15-20 ATSWITCH REED SPST-NO 1A 125V |
1,626 | 0.00 |
|
Datasheet |
GR560 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 15 ~ 20AT | 6 ~ 21AT | 1A (AC/DC) | 125 V | 100 V | 10VA | 0.6 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -40°C ~ 125°C | 0.2 pF | 1.5A (AC/DC) |
|

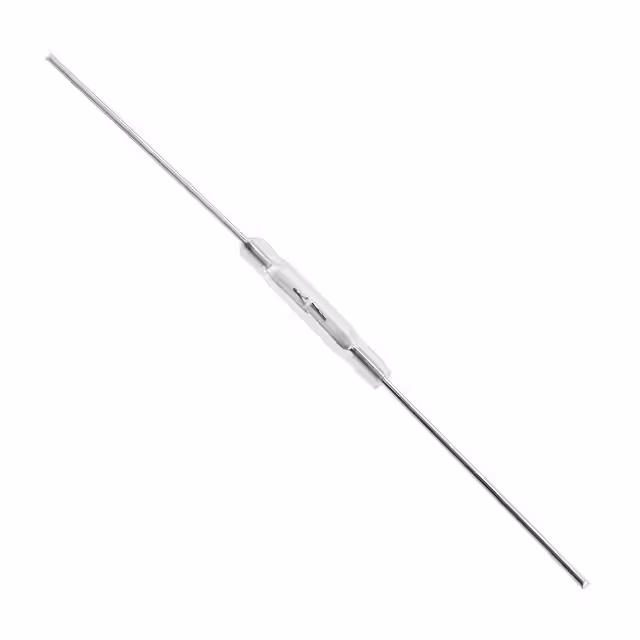

SW GR560/20-25 ATSWITCH REED SPST-NO 1A 125V |
2,999 | 0.00 |
|
Datasheet |
GR560 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 25AT | 6 ~ 21AT | 1A (AC/DC) | 125 V | 100 V | 10VA | 0.6 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -40°C ~ 125°C | 0.2 pF | 1.5A (AC/DC) |
|

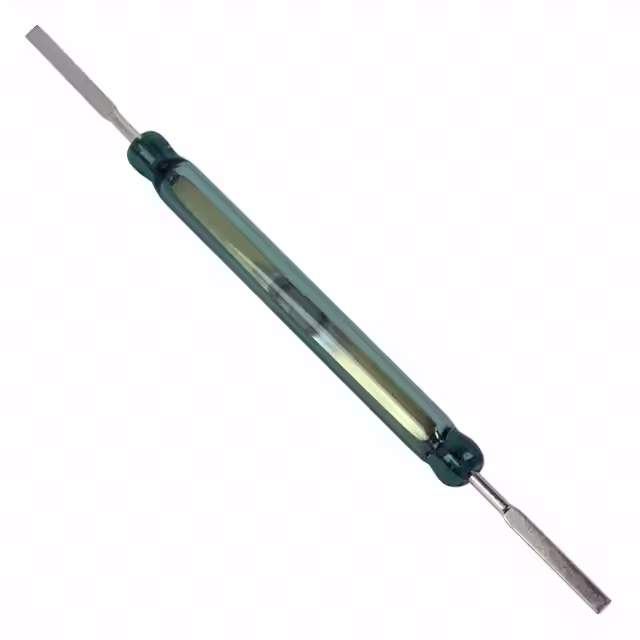

DRR-129-42-83SWITCH REED SPST-NO 2.1A 280V |
1,117 | 0.00 |
|
Datasheet |
DRR-129 | Box | Obsolete | Glass Body Reed | SPST-NO | 42 ~ 83AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
59045-1-U-00-0SWITCH REED SPST-NO 350MA 140V |
3,591 | 0.00 |
|
Datasheet |
59045 | Box | Active | Molded Body Reed | SPST-NO | 25 ~ 30AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.700" (17.78mm) | 0.700" L x 0.130" W x 0.170" H (17.78mm x 3.30mm x 4.32mm) | 0.170" (4.33mm) | -40°C ~ 105°C | 0.3 pF | 1.2A (DC) |
|
|
59050-2-S-00-0SWITCH REED SPST-NO 300MA 265V |
1,602 | 0.00 |
|
- |
59050 | Box | Active | Molded Body Reed | SPST-NO | 12 ~ 18AT | - | 300mA (AC), 400mA (DC) | 265 V | 300 V | 10W | 1 ms | 1 ms | Through Hole | PC Pin | 0.900" (22.86mm) | 0.900" L x 0.170" W x 0.180" H (22.86mm x 4.32mm x 4.57mm) | 0.180" (4.57mm) | -20°C ~ 105°C | 0.2 pF | 1.4A (DC) |
|
|
DRR-129-42-58SWITCH REED SPST-NO 2.1A 280V |
4,238 | 0.00 |
|
Datasheet |
DRR-129 | Box | Active | Glass Body Reed | SPST-NO | 42 ~ 58AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRR-129-47-78SWITCH REED SPST-NO 2.1A 280V |
3,386 | 0.00 |
|
Datasheet |
DRR-129 | Box | Active | Glass Body Reed | SPST-NO | 47 ~ 78AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRR-129-52-78SWITCH REED SPST-NO 2.1A 280V |
3,217 | 0.00 |
|
Datasheet |
DRR-129 | Box | Active | Glass Body Reed | SPST-NO | 52 ~ 78AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRR-129-57-78SWITCH REED SPST-NO 2.1A 280V |
4,926 | 0.00 |
|
Datasheet |
DRR-129 | Box | Active | Glass Body Reed | SPST-NO | 57 ~ 78AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRR-DTH-50-80SWITCH REED SPDT 350MA 350V |
1,979 | 0.00 |
|
Datasheet |
DRR-DTH | Box | Obsolete | Glass Body Reed | SPDT | 50 ~ 80AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
|
|
DRT-DTH-50-70SWITCH REED SPDT 1A 350V |
2,120 | 0.00 |
|
Datasheet |
DRT-DTH | Box | Active | Glass Body Reed | SPDT | 50 ~ 70AT | - | 1A (AC), 1.5A (DC) | 350 V | 500 V | 50W | 5.5 ms | 8 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 2A (DC) |
|
|
HA15-2-22-33SWITCH REED SPST-NO 350MA 265V |
3,661 | 0.00 |
|
Datasheet |
HA15-2 | Box | Active | Glass Body Reed | SPST-NO | 22 ~ 33AT | - | 350mA (AC), 500mA (DC) | 265 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -20°C ~ 125°C | 0.2 pF | 1.5A (DC) |
|
MDSM-DTB-25-30SWITCH REED SPDT 180MA 120V |
2,946 | 0.00 |
|
Datasheet |
MDSM-DT | Box | Active | Glass Body Reed | SPDT | 25 ~ 30AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | 0.101" (2.56mm) | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
MDSR-10-10-25SWITCH REED SPST-NO 350MA 140V |
2,749 | 0.00 |
|
Datasheet |
MDSR-10 | Box | Active | Glass Body Reed | SPST-NO | 10 ~ 25AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.071" Dia x 0.400" L (1.80mm x 10.16mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
|
MRPR-3-22-33SWITCH REED SPST-NO 1.1A 140V |
3,908 | 0.00 |
|
Datasheet |
MRPR-3 | Box | Obsolete | Glass Body Reed | SPST-NO | 22 ~ 33AT | - | 1.1A (AC), 1.5A (DC) | 140 V | 200 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | - | -40°C ~ 125°C | 0.2 pF | 3A (DC) |
|
|
MRPR-3-22-38SWITCH REED SPST-NO 1.1A 140V |
2,291 | 0.00 |
|
Datasheet |
MRPR-3 | Box | Active | Glass Body Reed | SPST-NO | 22 ~ 38AT | - | 1.1A (AC), 1.5A (DC) | 140 V | 200 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | - | -40°C ~ 125°C | 0.2 pF | 3A (DC) |
|
MDSM-4R-12-28SWITCH REED SPST-NO 350MA 140V |
2,731 | 0.00 |
|
Datasheet |
MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 12 ~ 28AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDSM-4R-12-38SWITCH REED SPST-NO 350MA 140V |
1,785 | 0.00 |
|
Datasheet |
MDSM-4 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 12 ~ 38AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Surface Mount | Gull Wing | 0.760" (19.30mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | 0.112" (2.85mm) | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
|
MDSM-DTR-15-30SWITCH REED SPDT 180MA 120V |
3,730 | 0.00 |
|
Datasheet |
MDSM-DT | Tape & Reel (TR) | Active | Glass Body Reed | SPDT | 15 ~ 30AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | 0.101" (2.56mm) | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
