Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDSM-DTR-25-30SWITCH REED SPDT 180MA 120V |
4,298 | 0.00 |
|
Datasheet |
MDSM-DT | Tape & Reel (TR) | Active | Glass Body Reed | SPDT | 25 ~ 30AT | - | 180mA (AC), 250mA (DC) | 120 V | 175 V | 5W | 0.7 ms | 1 ms | Surface Mount | Gull Wing | 1.000" (25.40mm) | 0.100" Dia x 0.580" L (2.54mm x 14.73mm) | 0.101" (2.56mm) | -40°C ~ 125°C | 1 pF | 1.5A (DC) |
|
KSK-1A35/1-2025SWITCH REED SPST-NO 700MA 1000V |
1,300 | 0.00 |
|
Datasheet |
KSK | Bulk | Obsolete | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 700mA (AC/DC) | 1000 V | 1000 V | 20W | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.358" (34.50mm) | 0.413" L x 0.087" W x 0.077" H (10.50mm x 2.20mm x 1.95mm) | - | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|

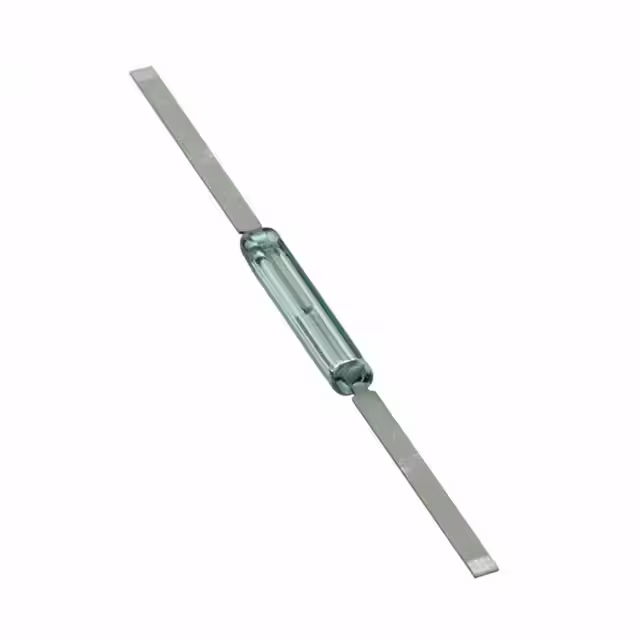

KSK-1A35/1-2530SWITCH REED SPST-NO 700MA 1000V |
4,605 | 0.00 |
|
Datasheet |
KSK | Bulk | Obsolete | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 700mA (AC/DC) | 1000 V | 1000 V | 20W | 0.5 ms | 0.2 ms | Surface Mount | Axial, Flat | 1.358" (34.50mm) | 0.413" L x 0.087" W x 0.077" H (10.50mm x 2.20mm x 1.95mm) | - | -40°C ~ 130°C | 0.3 pF | 1.25A (AC/DC) |
|
MDSR-7-Q2496-1SWITCH MAG REED SPST CUSTOM |
2,127 | 1.10 |
|
Datasheet |
MDSR-7 | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MRPR-3-12-18SWITCH REED SPST-NO 1.1A 140V |
3,818 | 0.00 |
|
Datasheet |
MRPR-3 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 12 ~ 18AT | - | 1.1A (AC), 1.5A (DC) | 140 V | 200 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | - | -40°C ~ 125°C | 0.2 pF | 3A (DC) |
|
|
MRPR-3-32-43SWITCH REED SPST-NO 1.1A 140V |
3,712 | 0.00 |
|
Datasheet |
MRPR-3 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 32 ~ 43AT | - | 1.1A (AC), 1.5A (DC) | 140 V | 200 V | 50W | 0.75 ms | 0.3 ms | Through Hole | Axial | 2.230" (56.64mm) | 0.112" Dia x 0.775" L (2.84mm x 19.69mm) | - | -40°C ~ 125°C | 0.2 pF | 3A (DC) |
|
|
59166-1-S-00-ASWITCH REED SPST-NO 350MA 140V |
2,105 | 0.00 |
|
Datasheet |
59166 | Bulk | Obsolete | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.630" L x 0.095" W x 0.095" H (16.00mm x 2.40mm x 2.40mm) | - | -40°C ~ 125°C | 0.3 pF | 800mA (DC) |
|
DRS-50-42-48SWITCH REED SPST-NO 2.1A 280V |
2,389 | 0.00 |
|
Datasheet |
DRS-50 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 42 ~ 48AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRS-50-42-83SWITCH REED SPST-NO 2.1A 280V |
4,630 | 0.00 |
|
Datasheet |
DRS-50 | Box | Obsolete | Glass Body Reed | SPST-NO | 42 ~ 83AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRS-50-47-63SWITCH REED SPST-NO 2.1A 280V |
2,983 | 0.00 |
|
Datasheet |
DRS-50 | Box | Obsolete | Glass Body Reed | SPST-NO | 47 ~ 63AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRS-50-47-68SWITCH REED SPST-NO 2.1A 280V |
4,026 | 0.00 |
|
Datasheet |
DRS-50 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 47 ~ 68AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRS-50-52-58SWITCH REED SPST-NO 2.1A 280V |
2,184 | 0.00 |
|
Datasheet |
DRS-50 | Box | Obsolete | Glass Body Reed | SPST-NO | 52 ~ 58AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRS-50-52-63SWITCH REED SPST-NO 2.1A 280V |
1,839 | 0.00 |
|
Datasheet |
DRS-50 | Box | Obsolete | Glass Body Reed | SPST-NO | 52 ~ 63AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRS-50-52-73SWITCH REED SPST-NO 2.1A 280V |
1,645 | 0.00 |
|
Datasheet |
DRS-50 | Box | Obsolete | Glass Body Reed | SPST-NO | 52 ~ 73AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRS-50-57-63SWITCH REED SPST-NO 2.1A 280V |
1,708 | 0.00 |
|
Datasheet |
DRS-50 | Box | Obsolete | Glass Body Reed | SPST-NO | 57 ~ 63AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRS-50-57-68SWITCH REED SPST-NO 2.1A 280V |
2,606 | 0.00 |
|
Datasheet |
DRS-50 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 57 ~ 68AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRS-50-62-68SWITCH REED SPST-NO 2.1A 280V |
2,907 | 0.00 |
|
Datasheet |
DRS-50 | Box | Obsolete | Glass Body Reed | SPST-NO | 62 ~ 68AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRS-50-62-73SWITCH REED SPST-NO 2.1A 280V |
1,716 | 0.00 |
|
Datasheet |
DRS-50 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 62 ~ 73AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRS-50-62-78SWITCH REED SPST-NO 2.1A 280V |
2,859 | 0.00 |
|
Datasheet |
DRS-50 | Bulk | Obsolete | Glass Body Reed | SPST-NO | 62 ~ 78AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
|
|
DRS-50-62-83SWITCH REED SPST-NO 2.1A 280V |
4,149 | 0.00 |
|
Datasheet |
DRS-50 | Box | Obsolete | Glass Body Reed | SPST-NO | 62 ~ 83AT | - | 2.1A (AC), 3A (DC) | 280 V | 400 V | 100W | 4.5 ms | 2.5 ms | Surface Mount | Axial, Flat | 3.250" (82.55mm) | 0.207" Dia x 2.000" L (5.25mm x 50.80mm) | - | -40°C ~ 125°C | 0.6 pF | 6A (DC) |
