Motors - AC, DC
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Motor Type | Voltage - Rated | RPM | Torque - Rated (oz-in / mNm) | Power - Rated | Encoder Type | Size / Dimension | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Features | Gear Reduction Ratio | Torque - Max Momentary (oz-in / mNm) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MQMA041P1SSERVOMOTOR 3000 RPM 100V |
3,131 | 0.00 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 184.1 / 1300 | 400W | Incremental | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | 0.551" (14.00mm) | 1.181" (30.00mm) | 3.543" (90.00mm) | Connector | Key | - | 541 / 3820 | 0°C ~ 40°C |
|
MQMA042P1SSERVOMOTOR 3000 RPM 200V |
1,498 | 0.00 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 184.1 / 1300 | 400W | Incremental | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | 0.551" (14.00mm) | 1.181" (30.00mm) | 3.543" (90.00mm) | Connector | Key | - | 541 / 3820 | 0°C ~ 40°C |
|
|
MSMA102P1GSERVOMOTOR 3000 RPM 200V |
1,098 | 0.00 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 450.3 / 3180 | 1kW | Incremental | Square - 3.543" x 3.543" (90.00mm x 90.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 3.937" (100.00mm) | Connector | Key, Oil Seal | - | 1345 / 9500 | 0°C ~ 40°C |
|
|
MSMA102P1HSERVOMOTOR 3000 RPM 200V |
3,997 | 0.00 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 450.3 / 3180 | 1kW | Incremental | Square - 3.543" x 3.543" (90.00mm x 90.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 3.937" (100.00mm) | Connector | Brake, Key, Oil Seal | - | 1345 / 9500 | 0°C ~ 40°C |
|

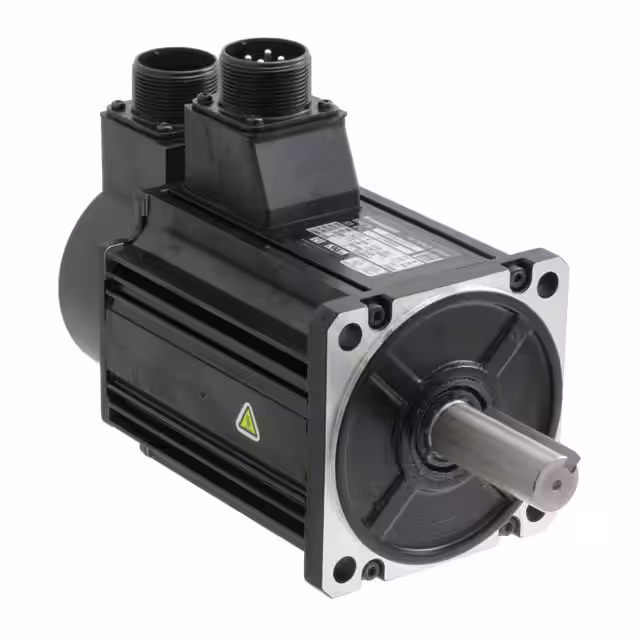

MSMA152P1GSERVOMOTOR 3000 RPM 200V |
3,692 | 0.00 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 675.5 / 4770 | 1.5kW | Incremental | Square - 3.937" x 3.937" (100.00mm x 100.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 4.528" (115.00mm) | Connector | Key, Oil Seal | - | 2025 / 14300 | 0°C ~ 40°C |
|
MSMA152P1HSERVOMOTOR 3000 RPM 200V |
1,471 | 0.00 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 675.5 / 4770 | 1.5kW | Incremental | Square - 3.937" x 3.937" (100.00mm x 100.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 4.528" (115.00mm) | Connector | Brake, Key, Oil Seal | - | 2025 / 14300 | 0°C ~ 40°C |
|
|
MSMA152S1GSERVOMOTOR 3000 RPM 200V |
3,276 | 0.00 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 675.5 / 4770 | 1.5kW | Absolute | Square - 3.937" x 3.937" (100.00mm x 100.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 4.528" (115.00mm) | Connector | Key, Oil Seal | - | 2025 / 14300 | 0°C ~ 40°C |
|
|
MSMA302P1GSERVOMOTOR 3000 RPM 200V |
2,971 | 0.00 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 1351 / 9540 | 3kW | Incremental | Square - 4.724" x 4.724" (120.00mm x 120.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 4050 / 28600 | 0°C ~ 40°C |
|
|
MSMA502S1DSERVOMOTOR 3000 RPM 200V |
4,025 | 0.00 |
|
- |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 2238 / 15800 | 5kW | Absolute | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.945" (24.00mm) | 2.559" (65.00mm) | 5.709" (145.00mm) | Connector | Brake, Oil Seal | - | 6741 / 47600 | 0°C ~ 40°C |
|
MSMD011P1SSERVOMOTOR 3000 RPM 100V |
2,215 | 0.00 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 45.32 / 320 | 100W | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.945" (24.00mm) | 2.559" (65.00mm) | 5.709" (145.00mm) | Wire Leads | Key | - | 134.5 / 950 | 0°C ~ 40°C |
|

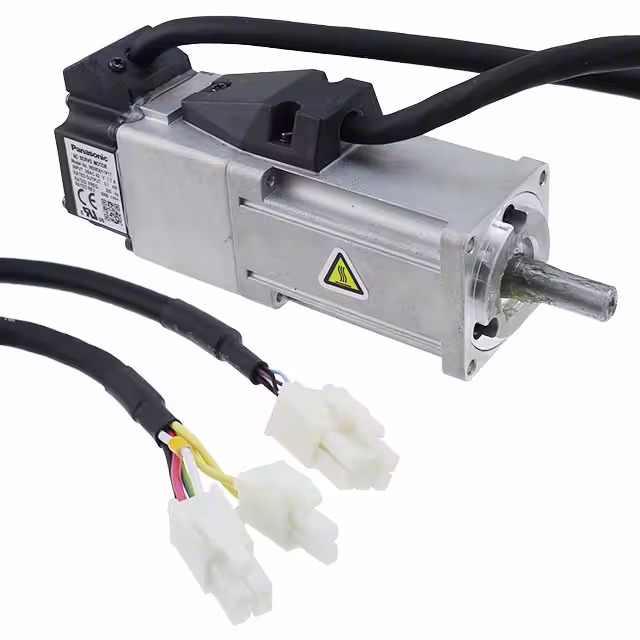

MSMD011P1TSERVOMOTOR 3000 RPM 100V |
2,000 | 0.00 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 45.32 / 320 | 100W | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.945" (24.00mm) | 2.559" (65.00mm) | 5.709" (145.00mm) | Wire Leads | Brake, Key | - | 134.5 / 950 | 0°C ~ 40°C |
|
|
MSMD011S1SSERVOMOTOR 3000 RPM 100V |
2,356 | 895.44 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 45.32 / 320 | 100W | Absolute | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.945" (24.00mm) | 2.559" (65.00mm) | 5.709" (145.00mm) | Wire Leads | Key | - | 134.5 / 950 | 0°C ~ 40°C |
|

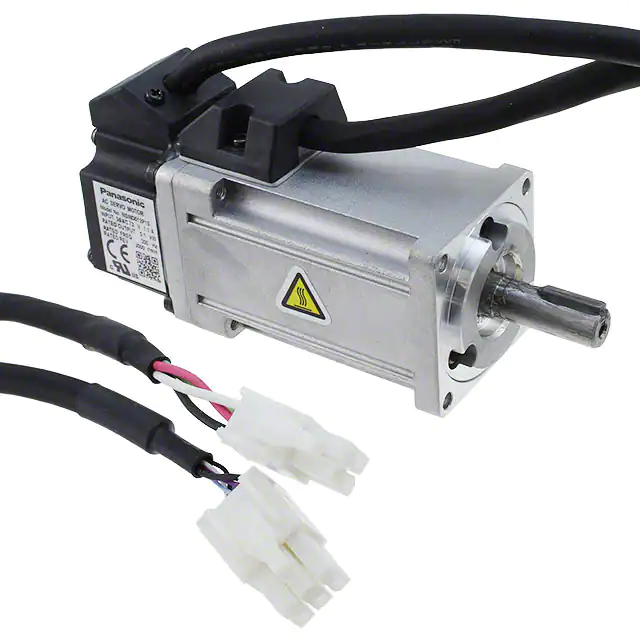

MSMD012P1SSERVOMOTOR 3000 RPM 200V |
4,779 | 0.00 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 45.32 / 320 | 100W | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.945" (24.00mm) | 2.559" (65.00mm) | 5.709" (145.00mm) | Wire Leads | Key | - | 134.5 / 950 | 0°C ~ 40°C |
|

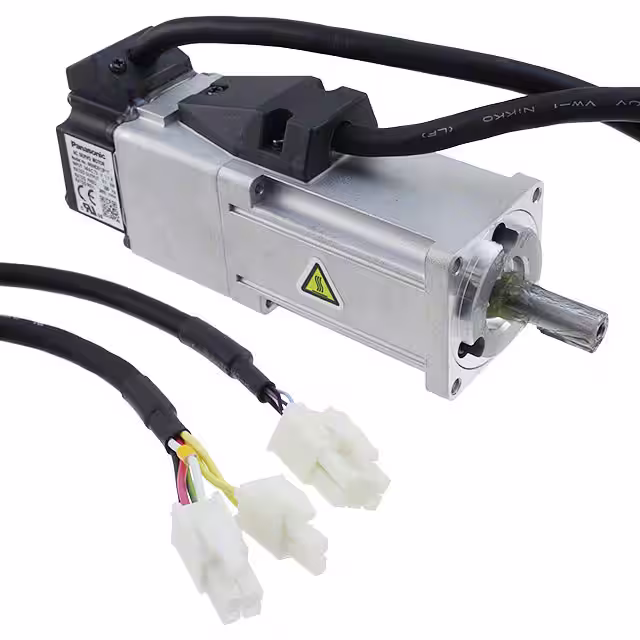

MSMD012P1TSERVOMOTOR 3000 RPM 200V |
3,830 | 0.00 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 45.32 / 320 | 100W | Incremental | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.945" (24.00mm) | 2.559" (65.00mm) | 5.709" (145.00mm) | Wire Leads | Brake, Key | - | 134.5 / 950 | 0°C ~ 40°C |
|
|
MSMD012S1SSERVOMOTOR 3000 RPM 200V |
3,811 | 895.44 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 45.32 / 320 | 100W | Absolute | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.945" (24.00mm) | 2.559" (65.00mm) | 5.709" (145.00mm) | Wire Leads | Key | - | 134.5 / 950 | 0°C ~ 40°C |
|
|
MSMD012S1TSERVOMOTOR 3000 RPM 200V |
2,566 | 1188.72 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 45.32 / 320 | 100W | Absolute | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | 0.945" (24.00mm) | 2.559" (65.00mm) | 5.709" (145.00mm) | Wire Leads | Brake, Key | - | 134.5 / 950 | 0°C ~ 40°C |
|
MSMD021P1SSERVOMOTOR 3000 RPM 100V |
4,397 | 0.00 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Wire Leads | Key | - | 270.5 / 1910 | 0°C ~ 40°C |
|
MSMD021P1TSERVOMOTOR 3000 RPM 100V |
1,288 | 0.00 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Wire Leads | Brake, Key | - | 270.5 / 1910 | 0°C ~ 40°C |
|

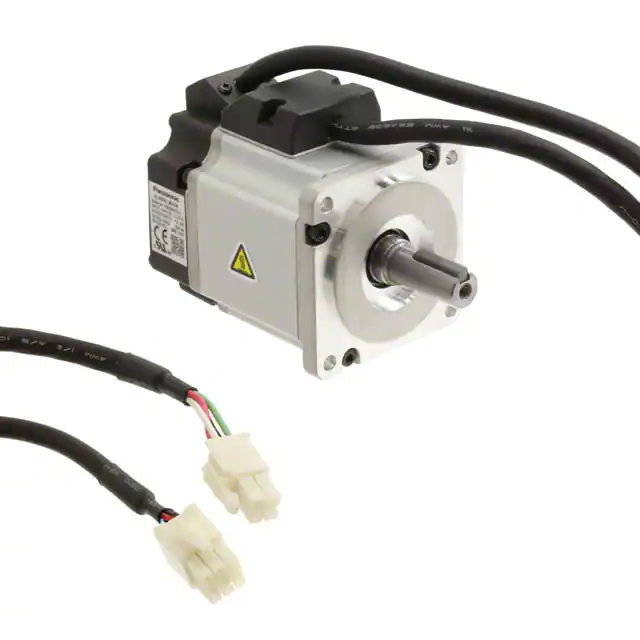

MSMD021S1SSERVOMOTOR 3000 RPM 100V |
4,250 | 934.96 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Absolute | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Wire Leads | Key | - | 270.5 / 1910 | 0°C ~ 40°C |
|

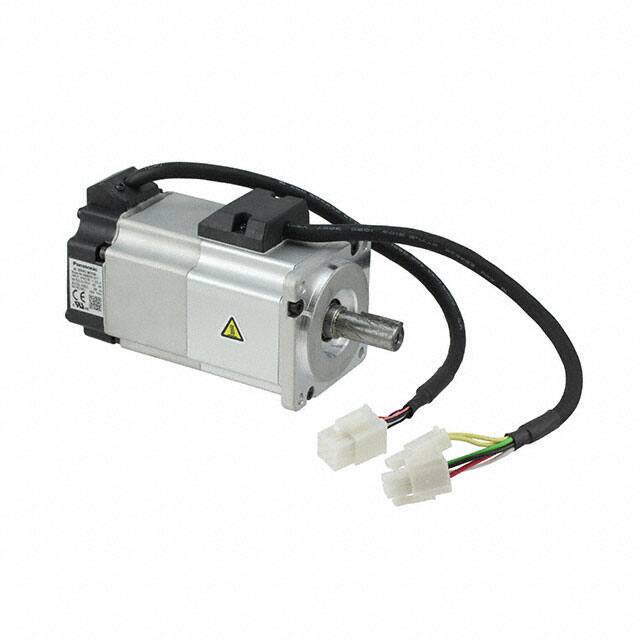

MSMD021S1TSERVOMOTOR 3000 RPM 100V |
4,387 | 1229.28 |
|
Datasheet |
MINAS A4 | Box | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Absolute | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Wire Leads | Brake, Key | - | 270.5 / 1910 | 0°C ~ 40°C |
