Motors - AC, DC
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Function | Motor Type | Voltage - Rated | RPM | Torque - Rated (oz-in / mNm) | Power - Rated | Encoder Type | Size / Dimension | Diameter - Shaft | Length - Shaft and Bearing | Mounting Hole Spacing | Termination Style | Features | Gear Reduction Ratio | Torque - Max Momentary (oz-in / mNm) | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSME021G1USERVOMOTOR 3000 RPM 100V |
1,170 | 507.52 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Key, Oil Seal | - | 270.5 / 1910 | 0°C ~ 40°C |
|
|
MSME022G1USERVOMOTOR 3000 RPM 200V |
1,041 | 507.52 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Key, Oil Seal | - | 270.5 / 1910 | 0°C ~ 40°C |
|
|
MSME022G1VSERVOMOTOR 3000 RPM 200V |
4,694 | 667.68 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 90.65 / 640 | 200W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.433" (11.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Brake, Key, Oil Seal | - | 270.5 / 1910 | 0°C ~ 40°C |
|

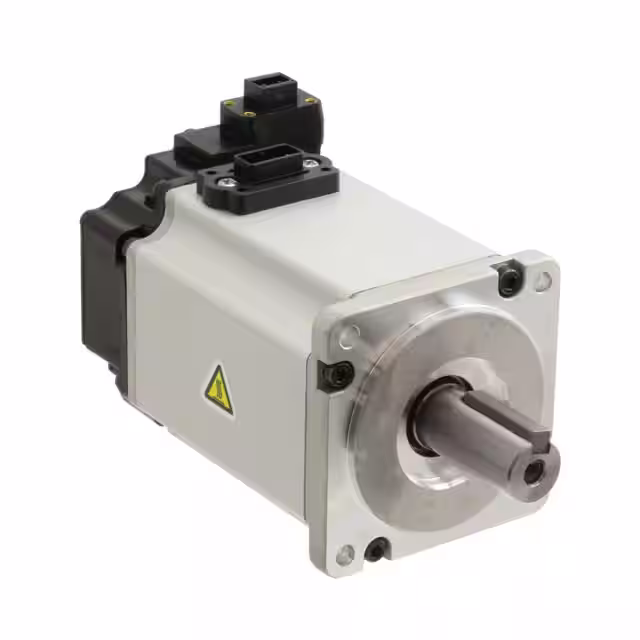

MSME041G1SSERVOMOTOR 3000 RPM 100V |
3,348 | 560.56 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 100VAC | 3000 RPM | 184.1 / 1300 | 400W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.551" (14.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Key | - | 538.1 / 3800 | 0°C ~ 40°C |
|
MSME042G1TSERVOMOTOR 3000 RPM 200V |
1,660 | 734.24 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 184.1 / 1300 | 400W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.551" (14.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Brake, Key | - | 538.1 / 3800 | 0°C ~ 40°C |
|
|
MSME042G1USERVOMOTOR 3000 RPM 200V |
1,256 | 574.08 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 184.1 / 1300 | 400W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.551" (14.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Key, Oil Seal | - | 538.1 / 3800 | 0°C ~ 40°C |
|
|
MSME042G1VSERVOMOTOR 3000 RPM 200V |
4,299 | 734.24 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 184.1 / 1300 | 400W | Incremental | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | 0.551" (14.00mm) | 1.181" (30.00mm) | 2.756" (70.00mm) | Connector | Brake, Key, Oil Seal | - | 538.1 / 3800 | 0°C ~ 40°C |
|
|
MSME082G1CSERVOMOTOR 3000 RPM 200V |
4,728 | 694.72 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 339.9 / 2400 | 750W | Incremental | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | 0.748" (19.00mm) | 1.378" (35.00mm) | 3.543" (90.00mm) | Connector | Oil Seal | - | 1005 / 7100 | 0°C ~ 40°C |
|

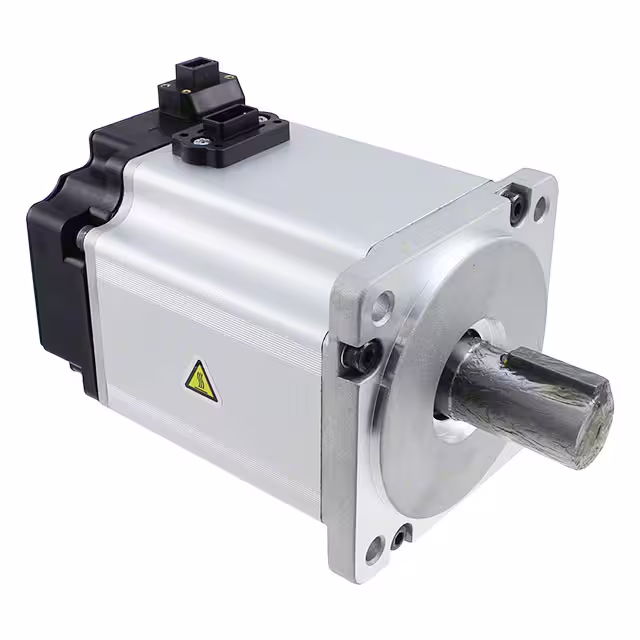

MSME082G1SSERVOMOTOR 3000 RPM 200V |
1,746 | 694.72 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 339.9 / 2400 | 750W | Incremental | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | 0.748" (19.00mm) | 1.378" (35.00mm) | 3.543" (90.00mm) | Connector | Key | - | 1005 / 7100 | 0°C ~ 40°C |
|
|
MSME082G1VSERVOMOTOR 3000 RPM 200V |
1,543 | 881.92 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 339.9 / 2400 | 750W | Incremental | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | 0.748" (19.00mm) | 1.378" (35.00mm) | 3.543" (90.00mm) | Connector | Brake, Key, Oil Seal | - | 1005 / 7100 | 0°C ~ 40°C |
|
|
MSME082S1VSERVOMOTOR 3000 RPM 200V |
1,481 | 988.00 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 339.9 / 2400 | 750W | Absolute | Square - 3.150" x 3.150" (80.00mm x 80.00mm) | 0.748" (19.00mm) | 1.378" (35.00mm) | 3.543" (90.00mm) | Connector | Brake, Key, Oil Seal | - | 1005 / 7100 | 0°C ~ 40°C |
|
MSME102G1GSERVOMOTOR 3000 RPM 200V |
1,774 | 1001.52 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 450.3 / 3180 | 1kW | Incremental | Square - 3.937" x 3.937" (100.00mm x 100.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 4.528" (115.00mm) | Connector | Key, Oil Seal | - | 1352 / 9550 | 0°C ~ 40°C |
|

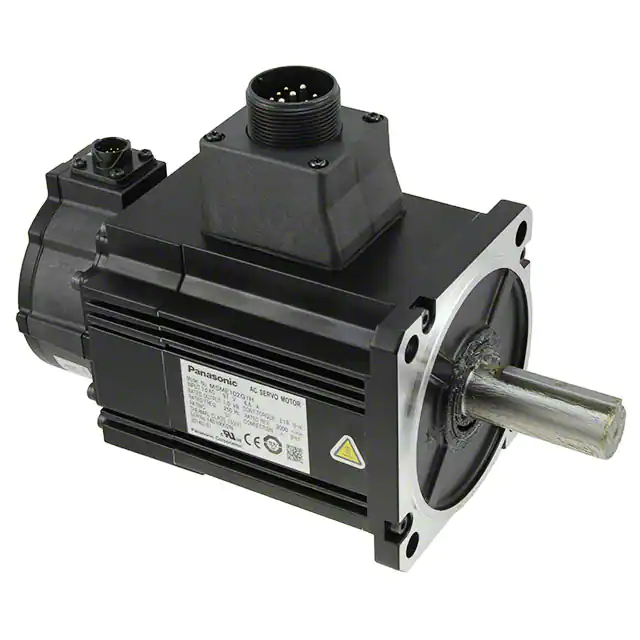

MSME102G1HSERVOMOTOR 3000 RPM 200V |
3,426 | 1255.28 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 450.3 / 3180 | 1kW | Incremental | Square - 3.937" x 3.937" (100.00mm x 100.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 4.528" (115.00mm) | Connector | Brake, Key, Oil Seal | - | 1352 / 9550 | 0°C ~ 40°C |
|

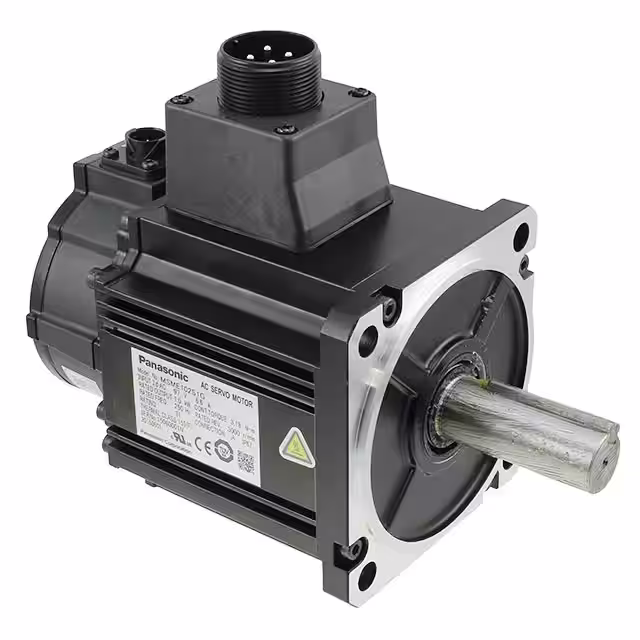

MSME102S1GSERVOMOTOR 3000 RPM 200V |
2,812 | 1095.12 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 450.3 / 3180 | 1kW | Absolute | Square - 3.937" x 3.937" (100.00mm x 100.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 4.528" (115.00mm) | Connector | Key, Oil Seal | - | 1352 / 9550 | 0°C ~ 40°C |
|

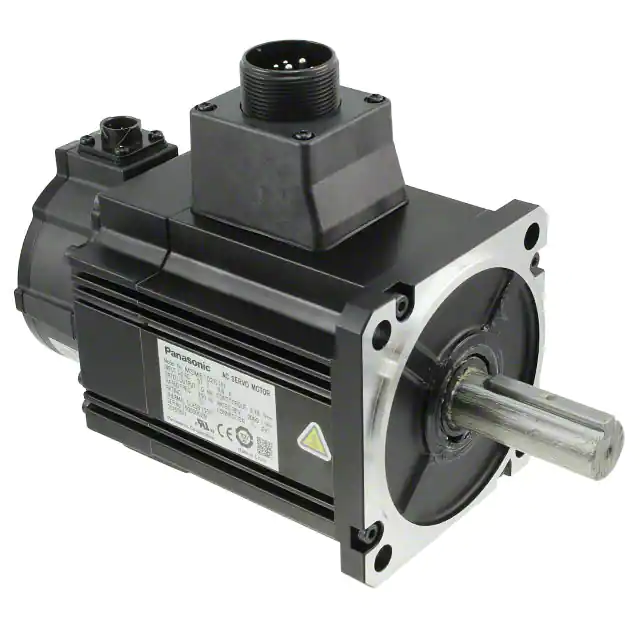

MSME102S1HSERVOMOTOR 3000 RPM 200V |
2,780 | 1348.89 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 450.3 / 3180 | 1kW | Absolute | Square - 3.937" x 3.937" (100.00mm x 100.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 4.528" (115.00mm) | Connector | Brake, Key, Oil Seal | - | 1352 / 9550 | 0°C ~ 40°C |
|
MSME152G1GSERVOMOTOR 3000 RPM 200V |
4,465 | 1095.12 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 675.5 / 4770 | 1.5kW | Incremental | Square - 3.937" x 3.937" (100.00mm x 100.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 4.528" (115.00mm) | Connector | Key, Oil Seal | - | 2025 / 14300 | 0°C ~ 40°C |
|
MSME152G1HSERVOMOTOR 3000 RPM 200V |
4,986 | 1348.89 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 675.5 / 4770 | 1.5kW | Incremental | Square - 3.937" x 3.937" (100.00mm x 100.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 4.528" (115.00mm) | Connector | Brake, Key, Oil Seal | - | 2025 / 14300 | 0°C ~ 40°C |
|
|
MSME202G1GSERVOMOTOR 3000 RPM 200V |
2,536 | 1188.72 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 902.1 / 6370 | 2kW | Incremental | Square - 3.937" x 3.937" (100.00mm x 100.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 4.528" (115.00mm) | Connector | Key, Oil Seal | - | 2705 / 19100 | 0°C ~ 40°C |
|
|
MSME204G1GSERVOMOTOR 3000 RPM 400V |
4,720 | 1188.72 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 400VAC | 3000 RPM | 902.1 / 6370 | 2kW | Incremental | Square - 3.937" x 3.937" (100.00mm x 100.00mm) | 0.748" (19.00mm) | 2.165" (55.00mm) | 4.528" (115.00mm) | Connector | Key, Oil Seal | - | 2705 / 19100 | 0°C ~ 40°C |
|

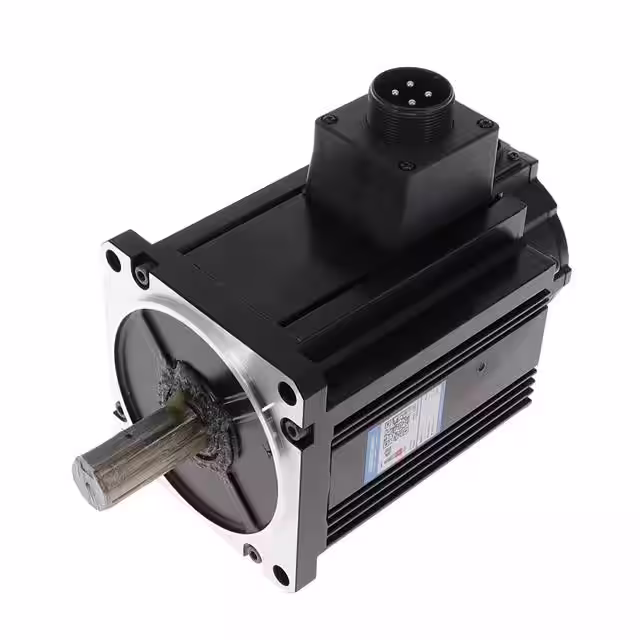

MSME302G1GSERVOMOTOR 3000 RPM 200V |
2,995 | 1362.40 |
|
Datasheet |
MINAS A5 | Box | Obsolete | AC Motor | Servomotor | - | 200VAC | 3000 RPM | 1352 / 9550 | 3kW | Incremental | Square - 4.724" x 4.724" (120.00mm x 120.00mm) | 0.866" (22.00mm) | 2.165" (55.00mm) | 5.709" (145.00mm) | Connector | Key, Oil Seal | - | 4050 / 28600 | 0°C ~ 40°C |
