Logic Output Optoisolators

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Channels	Inputs - Side 1/Side 2	Voltage - Isolation	Common Mode Transient Immunity (Min)	Input Type	Output Type	Current - Output / Channel	Data Rate	Propagation Delay tpLH / tpHL (Max)	Rise / Fall Time (Typ)	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Voltage - Supply	Grade	Qualification	Operating Temperature	Mounting Type	Supplier Device Package
FOD2200 OPTOISO 5KV TRI-STATE 8DIP onsemi	4,570	1.87	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Obsolete	1	1/0	5000Vrms	10kV/µs	DC	Tri-State	25 mA	2.5MBd	300ns, 300ns	80ns, 25ns	1.4V	10mA	4.5V ~ 20V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
HCPL-7601-000E OPTOISO 3.75KV OPEN COLL 8DIP Broadcom Limited	3,745	0.00	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Obsolete	1	1/0	3750Vrms	1kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	75ns, 75ns	24ns, 10ns	1.5V	20mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
PC411L0NIP0F OPTOISO 3.75KV PUSH PULL 5MFP Sharp Microelectronics	4,013	0.00	RFQ	Datasheet	OPIC™	6-SOIC (0.173", 4.40mm Width), 5 Leads	Tape & Reel (TR)	Obsolete	1	1/0	3750Vrms	15kV/µs	DC	Push-Pull, Totem Pole	2 mA	15Mbps	60ns, 60ns	4ns, 3ns	1.6V	20mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	5-MFP
PC411L0YIP0F OPTOISO 3.75KV PUSH PULL 5MFP Sharp Microelectronics	3,830	0.00	RFQ	Datasheet	OPIC™	6-SOIC (0.173", 4.40mm Width), 5 Leads	Tape & Reel (TR)	Obsolete	1	1/0	3750Vrms	15kV/µs	DC	Push-Pull, Totem Pole	2 mA	15Mbps	60ns, 60ns	4ns, 3ns	1.6V	20mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	5-MFP
PC956L0NSZ0F OPTOISO 5KV OPEN COLLECTOR 8DIP Sharp Microelectronics	2,113	0.00	RFQ	Datasheet	OPIC™	8-DIP (0.300", 7.62mm)	Tube	Obsolete	1	1/0	5000Vrms	15kV/µs	DC	Open Collector	15 mA	2Mbps	550ns, 400ns	-	1.6V	25mA	4.5V ~ 35V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
PC401TJ0000F OPTOISO 3.75KV OPEN COLL 5MFP Sharp Microelectronics	2,074	0.00	RFQ	-	OPIC™	6-SOIC (0.173", 4.40mm Width), 5 Leads	Tape & Reel (TR)	Obsolete	1	1/0	3750Vrms	-	DC	Open Collector	50 mA	-	3µs, 6µs	100ns, 50ns	1.1V	50mA	3V ~ 15V	-	-	-25°C ~ 85°C	Surface Mount	5-MFP
PC911L0NSZ0F OPTOISO 5KV PUSH PULL 8DIP Sharp Microelectronics	3,034	0.00	RFQ	Datasheet	OPIC™	8-DIP (0.300", 7.62mm)	Tube	Obsolete	1	1/0	5000Vrms	15kV/µs	DC	Push-Pull, Totem Pole	2 mA	15Mbps	60ns, 60ns	4ns, 3ns	1.6V	20mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
6N137F OPTOISO 2.5KV 1CH OPEN COLL 8DIP Toshiba Semiconductor and Storage	3,947	0.00	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	1	1/0	2500Vrms	200V/µs, 500V/µs (Typ)	DC	Open Collector	50 mA	10MBd	75ns, 75ns	30ns, 30ns	1.65V	20mA	4.5V ~ 5.5V	-	-	0°C ~ 70°C	Through Hole	8-DIP
TLP2200(TP1,F) OPTOISO 2.5KV TRI-STATE 8SMD Toshiba Semiconductor and Storage	1,633	0.00	RFQ	-	-	8-SMD, Gull Wing	Tape & Reel (TR)	Obsolete	1	1/0	2500Vrms	1kV/µs	DC	Tri-State	25 mA	2.5MBd	400ns, 400ns	35ns, 20ns	1.55V	10mA	4.5V ~ 20V	-	-	-40°C ~ 85°C	Surface Mount	8-SMD
TLP2601(F) OPTOISO 2.5KV OPN COLLECTOR 8DIP Toshiba Semiconductor and Storage	3,325	0.00	RFQ	-	-	8-DIP (0.300", 7.62mm)	Tube	Active	1	1/0	2500Vrms	1kV/µs	DC	Open Collector, Schottky Clamped	25 mA	10MBd	75ns, 75ns	30ns, 30ns	1.65V	20mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
TLP2630(F) OPTOISO 2.5KV 2CH OPEN COLL 8DIP Toshiba Semiconductor and Storage	2,725	0.00	RFQ	-	-	8-DIP (0.300", 7.62mm)	Tube	Obsolete	2	2/0	2500Vrms	200V/µs, 500V/µs (Typ)	DC	Open Collector, Schottky Clamped	16 mA	10MBd	75ns, 75ns	30ns, 30ns	1.65V	20mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
TLP2631(F) OPTOISO 2.5KV 2CH OPEN COLL 8DIP Toshiba Semiconductor and Storage	2,651	0.00	RFQ	-	-	8-DIP (0.300", 7.62mm)	Tube	Obsolete	2	2/0	2500Vrms	1kV/µs	DC	Open Collector, Schottky Clamped	16 mA	10MBd	75ns, 75ns	30ns, 30ns	1.65V	20mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
TLP2631TP1F OPTOISO 2.5KV 2CH OPEN COLL 8SMD Toshiba Semiconductor and Storage	4,079	0.00	RFQ	-	-	8-SMD, Gull Wing	Tape & Reel (TR)	Obsolete	2	2/0	2500Vrms	1kV/µs	DC	Open Collector, Schottky Clamped	16 mA	10MBd	75ns, 75ns	30ns, 30ns	1.65V	20mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	8-SMD
6N137SDV OPTOISO 2.5KV 1CH OPEN COLL 8SMD onsemi	3,444	0.00	RFQ	Datasheet	-	8-SMD, Gull Wing	Tape & Reel (TR)	Obsolete	1	1/0	2500Vrms	10kV/µs (Typ)	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	50ns, 12ns	1.4V	50mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	8-SMD
6N137SV OPTOISO 2.5KV 1CH OPEN COLL 8SMD onsemi	3,985	1.00	RFQ	Datasheet	-	8-SMD, Gull Wing	Bulk	Obsolete	1	1/0	2500Vrms	10kV/µs (Typ)	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	50ns, 12ns	1.4V	50mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	8-SMD

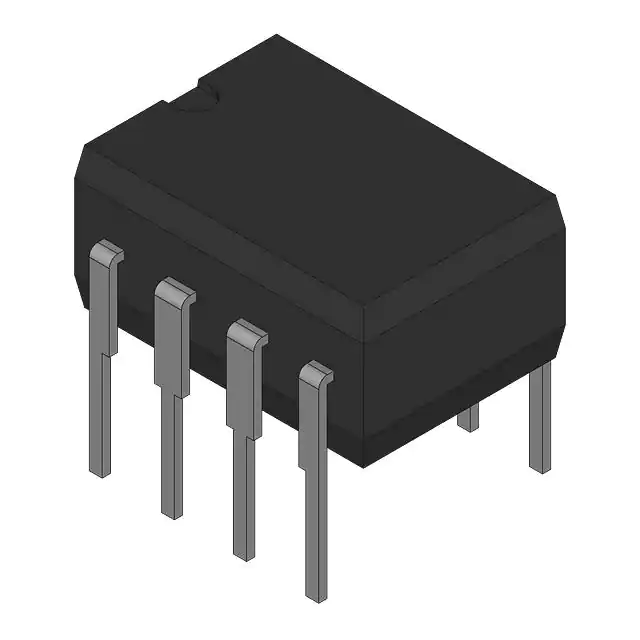

6N137V OPTOISO 2.5KV 1CH OPEN COLL 8DIP onsemi	4,590	0.61	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Bulk	Obsolete	1	1/0	2500Vrms	10kV/µs (Typ)	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	50ns, 12ns	1.4V	50mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
6N137WV OPTOISO 2.5KV 1CH OPEN COLL 8DIP onsemi	1,999	0.60	RFQ	Datasheet	-	8-DIP (0.400", 10.16mm)	Bulk	Obsolete	1	1/0	2500Vrms	10kV/µs (Typ)	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	50ns, 12ns	1.4V	50mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Through Hole	8-MDIP
PS9117-A OPTOISO 3.75KV OPN COLLECTOR 5SO CEL	3,224	0.00	RFQ	Datasheet	NEPOC	6-SOIC (0.173", 4.40mm Width), 5 Leads	Bulk	Obsolete	1	1/0	3750Vrms	15kV/µs	DC	Open Collector	25 mA	10Mbps	75ns, 75ns	20ns, 5ns	1.65V	30mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	5-SO
FOD816300W OPTOISOLATOR 5KV DARLINGTON 4DIP onsemi	1,125	0.00	RFQ	Datasheet	-	4-DIP (0.400", 10.16mm)	Tube	Obsolete	1	-	5000Vrms	-	AC, DC	Darlington	80 mA	-	-	60µs, 53µs	1.2V	50mA	-	-	-	-30°C ~ 100°C	Through Hole	4-DIP
FOD8163S OPTOISOLATOR 5KV DARLINGTON 4SMD onsemi	2,952	0.18	RFQ	Datasheet	-	4-SMD, Gull Wing	Tube	Obsolete	1	-	5000Vrms	-	AC, DC	Darlington	80 mA	-	-	60µs, 53µs	1.2V	50mA	-	-	-	-30°C ~ 100°C	Surface Mount	4-SMD

Total 2459 Record«Prev 1... 99 100 101 102103104 105 106...123 Next»
