Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL2631SDVOPTOISO 2.5KV 2CH OPEN COLL 8DIP |
1,504 | 3.37 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
FOD0708OPTOISO 2.5KV PUSH PULL 8SO |
4,299 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Box | Obsolete | 1 | 1/0 | 2500Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15MBd | 60ns, 60ns | 12ns, 8ns | 1.45V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
|
FOD0738OPTOISO 2.5KV 2CH PUSH PULL 8SO |
3,987 | 3.27 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Box | Obsolete | 2 | 2/0 | 2500Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15MBd | 60ns, 60ns | 12ns, 8ns | 1.45V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
PS9114-V-AOPTOISO 2.5KV OPN COLLECTOR 5SOP |
2,036 | 0.00 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
|
PS9115-F4-AOPTOISO 3.75KV PUSH PULL 5SO |
1,222 | 0.00 |
|
- |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 13 mA | 10Mbps | 65ns, 65ns | - | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
|
PS9117-F3-AOPTOISO 3.75KV OPN COLLECTOR 5SO |
2,999 | 0.00 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
|
PS9117-V-F3-AOPTOISO 3.75KV OPN COLLECTOR 5SO |
2,332 | 0.00 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
|
PS9213-AOPTOISO 2.5KV OPN COLLECTOR 5SOP |
1,663 | 0.00 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Bulk | Obsolete | 1 | 1/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
|
PS9213-F3-AOPTOISO 2.5KV OPN COLLECTOR 5SOP |
4,319 | 0.00 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
|
PS9214-AOPTOISO 2.5KV OPN COLLECTOR 5SOP |
3,605 | 0.00 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Bulk | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|

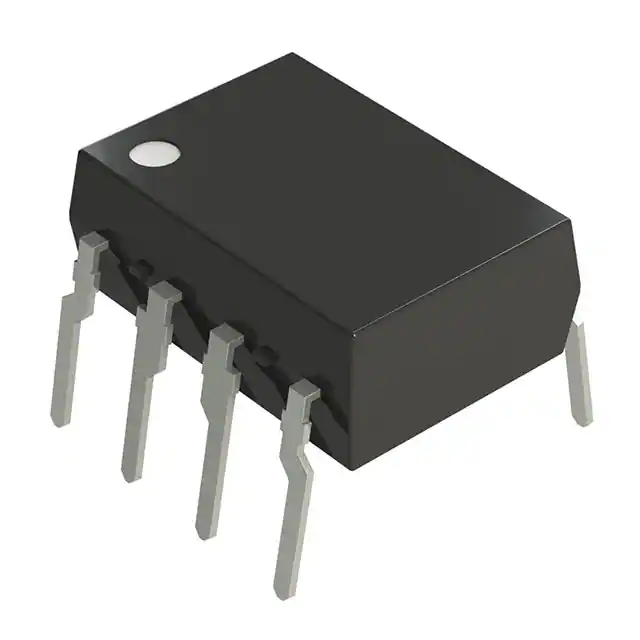

PS9617-AOPTOISO 5KV OPEN COLLECTOR 8DIP |
4,069 | 0.00 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
PS9617L-V-E3-AOPTOISO 5KV OPEN COLL 8SMD GW |
4,531 | 0.00 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
PS9617-V-AOPTOISO 5KV OPEN COLLECTOR 8DIP |
1,447 | 0.00 |
|
Datasheet |
NEPOC | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
PS9687L2-AOPTOISO 5KV OPEN COLL 8SMD GW |
4,644 | 0.00 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
PS9687L2-E3-AOPTOISO 5KV OPEN COLL 8SMD GW |
1,879 | 0.00 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
PS9687L2-V-E3-AOPTOISO 5KV OPEN COLL 8SMD GW |
2,464 | 0.00 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
PS9814-1-AOPTOISO 2.5KV OPEN COLL 8SSOP |
1,683 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
|
|
PS9814-1-F4-AOPTOISO 2.5KV OPEN COLL 8SSOP |
4,024 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
|
|
PS9814-2-AOPTOISO 2.5KV 2CH OPEN COL 8SSOP |
2,072 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | 2 | 2/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
|
|
PS9814-2-F4-AOPTOISO 2.5KV 2CH OPEN COL 8SSOP |
1,290 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 2500Vrms | 10kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
