Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL-5231OPTOISO 1.5KV 2CH PUSH PULL 8DIP |
131 | 177.16 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Bulk | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
H11L1TVMOPTOISO 4.17KV OPN COLL 6DIP |
671 | 1.03 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
.JPG)
|
TLP2362(E)OPTOISO 3.75KV OPEN COLL SO6-5 |
1,086 | 1.05 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10MBd | 100ns, 100ns | 30ns, 30ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
H11L1OPTOISO 5KV OPEN COLLECTOR 6DIP |
5,224 | 1.10 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 1MHz | 6µs, 3µs | 100ns, 50ns | - | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Through Hole | 6-DIP |
|
6N137OPTOISO 5KV 1CH OPEN COLL 8DIP |
4,131 | 0.80 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -55°C ~ 85°C | Through Hole | 8-DIP |
|
|
TLP155E(TPL,E)OPTOISO 3.75KV PSH PULL 6SO-5 |
3,905 | 1.10 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | - | - | 170ns, 170ns | 35ns, 15ns | 1.55V | 20mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2361(EOPTOISO 3.75KV PSH PULL SO6-5 |
10,675 | 1.12 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
TLP2363(TPR,EHIGH SPEED PHOTOCOUPLER; 10MBD; |
7,061 | 0.34 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10Mbps | 80ns, 80ns | 23ns, 7ns | 1.5V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2363(V4-TPR,EHIGH SPEED PHOTOCOUPLER; 10MBD; |
4,484 | 1.02 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 200kV/µs | DC | Open Collector | 25 mA | 10Mbps | 80ns, 80ns | 23ns, 7ns | 1.5V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2361(TPR,E15MBPS HIGH SPEED COUPLER; SO6; |
4,436 | 0.34 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2355(TPR,E5MBPS COUPLER; SO6; ROHS; T&R |
1,258 | 0.34 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 250ns, 250ns | 15ns, 12ns | 1.55V | 20mA | 3V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|

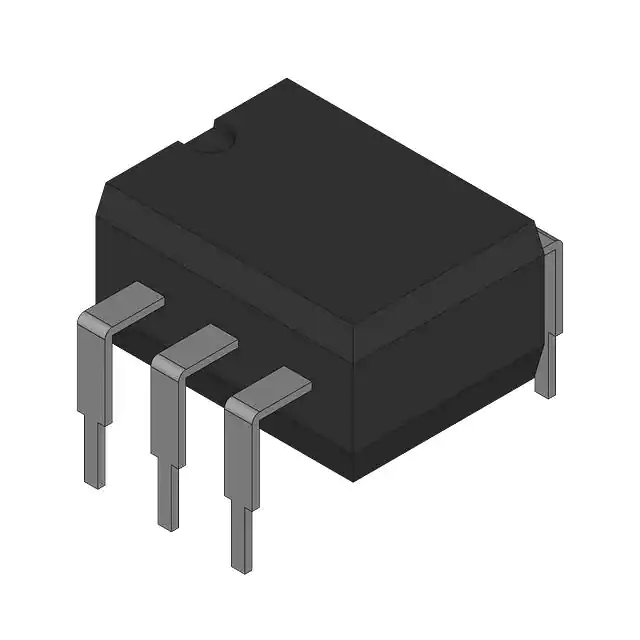

H11L3MOPTOISO 4.17KV OPN COLL 6DIP |
1,167 | 0.35 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
|
|
TLP2361(V4,EOPTOISO 3.75KV PSH PULL SO6-5 |
2,570 | 1.04 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
H11L1SMOPTOISO 5KV OPEN COLLECTOR 6SMD |
4,865 | 1.06 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 1MHz | 6µs, 3µs | 100ns, 50ns | - | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Surface Mount | 6-SMD |
|
|
6N137SMT&ROPTOISO 5KV 1CH OPEN COLL 8SMD |
1,503 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -55°C ~ 85°C | Surface Mount | 8-SMD |
|

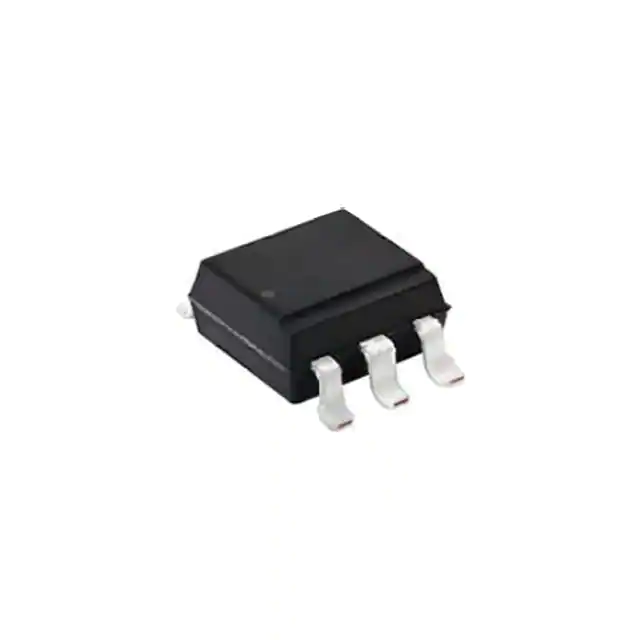

VOH1016AB-TOPTOISO 5KV OPEN COLLECTOR 6-SMD |
2,830 | 1.10 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 2MHz | 2µs, 1.2µs | 50ns, 40ns | 1.1V | 50mA | 16V | - | - | -40°C ~ 100°C | Surface Mount | 6-SMD |
|
VOH1016ADOPTOISO 5KV OPEN COLLECTOR 6-DIP |
1,169 | 1.10 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 2MHz | 2µs, 1.2µs | 50ns, 40ns | 1.1V | 50mA | 16V | - | - | -40°C ~ 100°C | Through Hole | 6-DIP |
|
H11L1VMOPTOISO 4.17KV OPN COLL 6DIP |
3,847 | 1.19 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
|
H11L1SVMOPTOISO 4.17KV OPN COLL 6SMD |
1,375 | 1.27 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
|
H11L1MOPTOISO 5KV OPEN COLLECTOR 6DIP |
1,172 | 1.08 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.15V | 60mA | 3V ~ 16V | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
