Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP5701(D4-TP,EX36 PB-F DRIVER COUPLER 0.6A SO6 |
1,725 | 0.45 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 600 mA | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 25mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
|
TLP5701(TP,EX36 PB-F DRIVER COUPLER 0.6A SO6 |
295 | 0.45 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 600 mA | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 25mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
|
TLP5701(EX36 PB-F DRIVER COUPLER 0.6A SO6 |
113 | 0.59 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 600 mA | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 25mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
TLP2962(F)OPTOISO 5KV OPEN COLLECTOR 8DIP |
1,070 | 1.27 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 50 mA | 15MBd | 75ns, 75ns | 3ns, 12ns | 1.55V | 20mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP |
|
TLP2368B(TPL,E(THIGH SPEED LOGIC COUPLER; ROHS |
2,127 | 0.00 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 50kV/µs | DC | Open Drain | 25 mA | 20Mbps | 60ns, 60ns | 14ns, 1ns | 1.57V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|

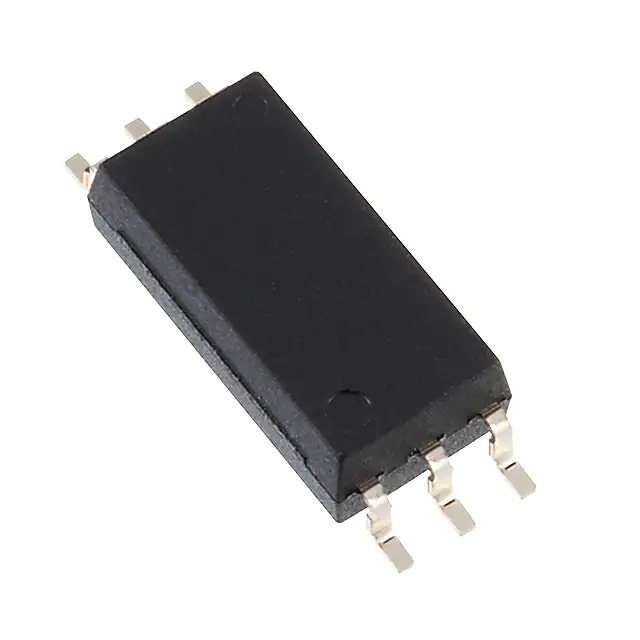

TLP2768A(TP,EZSOL6ICTST20M,ACTIVE, |
1,307 | 0.00 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 25 mA | 20MBd | 60ns, 60ns | 30ns, 30ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
H11L2MOPTOISO 4.17KV OPN COLL 6DIP |
4,044 | 1.35 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
.JPG)
|
TLP2304(TPR,EPHOTOCOUPLER HIGH SPEED 5PIN |
3,416 | 1.41 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 15 mA | 1MBd | 550ns, 400ns | - | 1.55V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2304(TPL,EHIGH SPEED PHOTOCOUPLER; 5PIN SO |
1,201 | 0.48 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 15 mA | 1MBd | 550ns, 400ns | - | 1.55V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP5702(TP,EX36 PB-F DRIVER COUPLER 2.5A FAS |
917 | 0.50 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 1 A | - | 200ns, 200ns | 15ns, 8ns | 1.55V | 20mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
|
TLP2366(E)OPTOISO 3.75KV PUSH PULL SO6-5 |
513 | 1.42 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 40ns, 40ns | 15ns, 15ns | 1.61V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP5702(EX36 PB-F DRIVER COUPLER 2.5A FAS |
174 | 0.67 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 1 A | - | 200ns, 200ns | 15ns, 8ns | 1.55V | 20mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
|
TLP2366(V4-TPL,EOPTOISO 3.75KV PSH PULL SO6-5 |
24,896 | 1.51 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 40ns, 40ns | 15ns, 15ns | 1.61V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP104(TPL,EOPTOISO 3.75KV OPEN COLL SO6-5 |
4,688 | 1.51 |
|
- |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Last Time Buy | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 8 mA | 1Mbps | 550ns, 400ns | - | 1.61V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP104(V4-TPL,EOPTOISO 3.75KV OPEN COLL SO6 |
1,701 | 1.51 |
|
- |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Last Time Buy | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 8 mA | 1Mbps | 550ns, 400ns | - | 1.61V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2310(TPL,EHIGH SPEED LOGIC OUTPUT OPTOCOUP |
3,414 | 1.55 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5Mbps | 250ns, 250ns | 11ns, 13ns | 1.53V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2710(TP4,EOPTOCOUPLER HI SPEED LOGIC OUTPU |
5,508 | 1.60 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 13ns | 1.9V (Max) | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
6N137S(TA)OPTOISO 5KV 1CH OPEN COLL 8SMD |
7,165 | 0.95 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
6N137OPTOISO 5KV 1CH OPEN COLL 8DIP |
4,111 | 0.80 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
TLP2766A(TP4,ECOUPLER HIGH SPEED LOGIC OUTPUT |
2,368 | 1.67 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 55ns, 55ns | 5ns, 4ns | 1.8V (Max) | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
