Logic Output Optoisolators

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Channels	Inputs - Side 1/Side 2	Voltage - Isolation	Common Mode Transient Immunity (Min)	Input Type	Output Type	Current - Output / Channel	Data Rate	Propagation Delay tpLH / tpHL (Max)	Rise / Fall Time (Typ)	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Voltage - Supply	Grade	Qualification	Operating Temperature	Mounting Type	Supplier Device Package
TLP716(F) OPTOISO 5KV PUSH PULL 6DIP GW Toshiba Semiconductor and Storage	2,808	0.00	RFQ	-	-	6-SOIC (0.268", 6.80mm Width)	Tube	Obsolete	1	1/0	5000Vrms	10kV/µs	DC	Push-Pull, Totem Pole	10 mA	15MBd	75ns, 75ns	15ns, 15ns	1.65V	20mA	4.5V ~ 5.5V	-	-	-40°C ~ 100°C	Surface Mount	6-SDIP Gull Wing
6N137M-V OPTOISO 5KV 1CH OPEN COLL 8DIP Everlight Electronics Co Ltd	2,080	0.32	RFQ	Datasheet	-	8-DIP (0.400", 10.16mm)	Tube	Active	1	1/0	5000Vrms	5kV/µs	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	40ns, 10ns	1.4V	50mA	7V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
6N137S1(TB) OPTOISO 5KV 1CH OPEN COLL 8SMD Everlight Electronics Co Ltd	4,975	0.30	RFQ	Datasheet	-	8-SMD, Gull Wing	Tape & Reel (TR)	Active	1	1/0	5000Vrms	5kV/µs	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	40ns, 10ns	1.4V	50mA	7V	-	-	-40°C ~ 85°C	Surface Mount	8-SMD
6N137S1(TB)-V OPTOISO 5KV 1CH OPEN COLL 8SMD Everlight Electronics Co Ltd	1,635	0.30	RFQ	Datasheet	-	8-SMD, Gull Wing	Tape & Reel (TR)	Active	1	1/0	5000Vrms	5kV/µs	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	40ns, 10ns	1.4V	50mA	7V	-	-	-40°C ~ 85°C	Surface Mount	8-SMD
H11L1S1(TB) OPTOISO 5KV OPEN COLLECTOR 6SMD Everlight Electronics Co Ltd	4,250	0.28	RFQ	Datasheet	-	6-SMD, Gull Wing	Tape & Reel (TR)	Active	1	1/0	5000Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.15V	60mA	3V ~ 16V	-	-	-55°C ~ 100°C	Surface Mount	6-SMD
H11L1S(TB) OPTOISO 5KV OPEN COLLECTOR 6SMD Everlight Electronics Co Ltd	3,347	0.28	RFQ	Datasheet	-	6-SMD, Gull Wing	Tape & Reel (TR)	Active	1	1/0	5000Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.15V	60mA	3V ~ 16V	-	-	-55°C ~ 100°C	Surface Mount	6-SMD

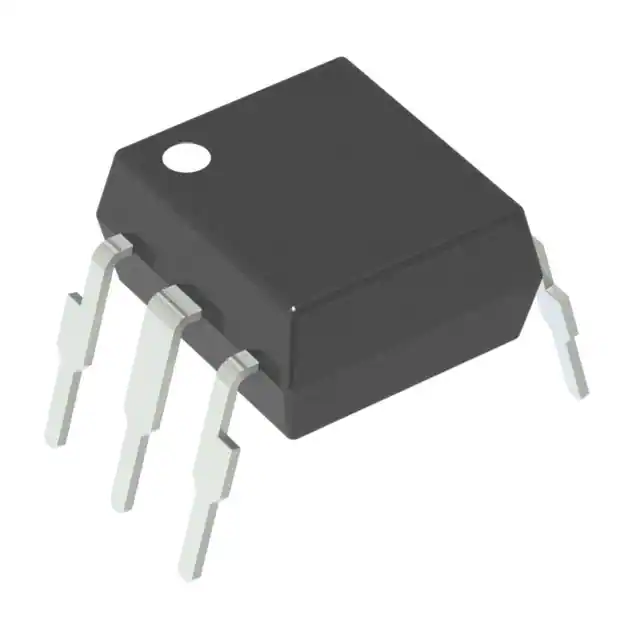

H11L2-V OPTOISO 5KV OPEN COLLECTOR 6DIP Everlight Electronics Co Ltd	2,987	0.28	RFQ	Datasheet	-	6-DIP (0.300", 7.62mm)	Tube	Active	1	1/0	5000Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.15V	60mA	3V ~ 16V	-	-	-55°C ~ 100°C	Through Hole	6-DIP
H11L2S1(TA)-V OPTOISO 5KV OPEN COLLECTOR 6SMD Everlight Electronics Co Ltd	3,891	0.28	RFQ	Datasheet	-	6-SMD, Gull Wing	Tape & Reel (TR)	Active	1	1/0	5000Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.15V	60mA	3V ~ 16V	-	-	-55°C ~ 100°C	Surface Mount	6-SMD
H11L2S1(TB) OPTOISO 5KV OPEN COLLECTOR 6SMD Everlight Electronics Co Ltd	1,497	0.28	RFQ	Datasheet	-	6-SMD, Gull Wing	Tape & Reel (TR)	Active	1	1/0	5000Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.15V	60mA	3V ~ 16V	-	-	-55°C ~ 100°C	Surface Mount	6-SMD
H11L2S(TA) OPTOISO 5KV OPEN COLLECTOR 6SMD Everlight Electronics Co Ltd	2,811	0.30	RFQ	Datasheet	-	6-SMD, Gull Wing	Tape & Reel (TR)	Active	1	1/0	5000Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.15V	60mA	3V ~ 16V	-	-	-55°C ~ 100°C	Surface Mount	6-SMD
H11L2S(TB) OPTOISO 5KV OPEN COLLECTOR 6SMD Everlight Electronics Co Ltd	4,563	0.28	RFQ	Datasheet	-	6-SMD, Gull Wing	Tape & Reel (TR)	Active	1	1/0	5000Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.15V	60mA	3V ~ 16V	-	-	-55°C ~ 100°C	Surface Mount	6-SMD
H11L3-V OPTOISO 5KV OPEN COLLECTOR 6DIP Everlight Electronics Co Ltd	1,386	0.30	RFQ	Datasheet	-	6-DIP (0.300", 7.62mm)	Tube	Active	1	1/0	5000Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.15V	60mA	3V ~ 16V	-	-	-55°C ~ 100°C	Through Hole	6-DIP
TLP754(F) OPTOISO 5KV OPEN COLLECTOR 8DIP Toshiba Semiconductor and Storage	4,240	0.00	RFQ	-	-	8-DIP (0.300", 7.62mm)	Tube	Obsolete	1	1/0	5000Vrms	20kV/µs	DC	Open Collector	15 mA	1Mbps	550ns, 400ns	-	1.55V	20mA	4.5V ~ 30V	-	-	-40°C ~ 125°C	Through Hole	8-DIP
TLP555(F) OPTOISO 2.5KV TRI-STATE 8DIP Toshiba Semiconductor and Storage	4,043	0.00	RFQ	-	-	8-DIP (0.300", 7.62mm)	Tube	Obsolete	1	1/0	2500Vrms	1kV/µs	DC	Tri-State	40 mA	5Mbps	400ns, 400ns	35ns, 20ns	1.55V	10mA	4.5V ~ 20V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
TLP2408(F) OPTOISO 3.75KV PUSH PULL 8SO Toshiba Semiconductor and Storage	2,494	0.00	RFQ	Datasheet	-	8-SOIC (0.154", 3.90mm Width)	Tube	Active	1	1/0	3750Vrms	15kV/µs	DC	Push-Pull, Totem Pole	25 mA	5Mbps	250ns, 250ns	30ns, 30ns	1.57V	25mA	4.5V ~ 20V	-	-	-40°C ~ 100°C	Surface Mount	8-SO
TLP714(F) OPTOISO 5KV OPEN COLL 6DIP GW Toshiba Semiconductor and Storage	3,344	0.00	RFQ	-	-	6-SOIC (0.268", 6.80mm Width)	Tube	Obsolete	1	1/0	5000Vrms	20kV/µs	DC	Open Collector	15 mA	1Mbps	550ns, 400ns	-	1.55V	20mA	4.5V ~ 30V	-	-	-40°C ~ 125°C	Surface Mount	6-SDIP
TLP155E(E) OPTOISO 3.75KV PSH PULL 6SO-5 Toshiba Semiconductor and Storage	4,236	0.00	RFQ	Datasheet	-	6-SOIC (0.179", 4.55mm Width), 5 Leads	Tube	Active	1	1/0	3750Vrms	15kV/µs	DC	Push-Pull, Totem Pole	-	-	170ns, 170ns	35ns, 15ns	1.55V	20mA	10V ~ 30V	-	-	-40°C ~ 100°C	Surface Mount	6-SO, 5 Lead
TLP2160(F) OPTOISO 2.5KV 2CH PUSH PULL 8SO Toshiba Semiconductor and Storage	2,150	0.00	RFQ	-	-	8-SOIC (0.154", 3.90mm Width)	Tube	Active	2	2/0	2500Vrms	20kV/µs	DC	Push-Pull, Totem Pole	10 mA	20MBd	40ns, 40ns	15ns, 15ns	1.55V	25mA	2.7V ~ 5.5V	-	-	-40°C ~ 125°C	Surface Mount	8-SO
TLP2404(F) OPTOISO 3.75KV OPN COLLECTOR 8SO Toshiba Semiconductor and Storage	1,044	0.00	RFQ	Datasheet	-	8-SOIC (0.154", 3.90mm Width)	Tube	Active	1	1/0	3750Vrms	15kV/µs	DC	Open Collector	15 mA	1Mbps	550ns, 400ns	-	1.57V	25mA	4.5V ~ 30V	-	-	-40°C ~ 125°C	Surface Mount	8-SO
CPC5002G OPTOISO 3.75KV 2CH OPEN DRN 8DIP IXYS Integrated Circuits Division	1,767	0.00	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Obsolete	2	2/0	3750Vrms	5kV/µs, 7kV/µs	DC	Open Drain	10 mA	10MBd	120ns, 120ns	-, 15ns	1.2V	20mA	2.7V ~ 5.5V	-	-	-40°C ~ 85°C	Through Hole	8-DIP

Total 2459 Record«Prev 1... 110 111 112 113114115 116 117...123 Next»
