Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SFH6705OPTOISO 5.3KV OPN COLLECTOR 8DIP |
2,414 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Open Collector | 25 mA | 5MBd | 300ns, 300ns | 25ns, 4ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
SFH6705-X007OPTOISO 5.3KV OPN COLLECTOR 8SMD |
4,825 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Open Collector | 25 mA | 5MBd | 300ns, 300ns | 25ns, 4ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
|
SFH6711OPTOISO 5.3KV PUSH PULL 8DIP |
3,882 | 0.00 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 2.5kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
SFH6711-X007OPTOISO 5.3KV PUSH PULL 8SMD |
3,935 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | 1 | 1/0 | 5300Vrms | 2.5kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
PC4D10SYIP0FOPTOISO 3.75KV OPEN COLL 8MFLAT |
3,030 | 0.00 |
|
Datasheet |
OPIC™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-Miniflat |
|
PC456L0YIP0FOPTOISO 3.75KV OPN COL 5MINIFLAT |
2,344 | 0.00 |
|
- |
OPIC™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 15 mA | 2Mbps | 550ns, 400ns | - | 1.6V | 25mA | 4.5V ~ 35V | - | - | -40°C ~ 85°C | Surface Mount | 5-Mini-Flat |
|
CPC5001GOPTOISO 3.75KV 2CH OPEN DRN 8DIP |
1,631 | 3.75 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 1/1 | 3750Vrms | 5kV/µs, 7kV/µs | Logic | Open Drain | - | 5MBd | 250ns, 100ns | - | - | - | 2.7V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | - |
|
|
CPC5001GSOPTOISO 3.75KV 2CH OPEN DRN 8SMD |
4,123 | 3.75 |
|
Datasheet |
- | 8-SMD | Tube | Obsolete | 2 | 1/1 | 3750Vrms | 5kV/µs, 7kV/µs | Logic | Open Drain | - | 5MBd | 250ns, 100ns | - | - | - | 2.7V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | - |
|
|
CPC5002GSOPTOISO 3.75KV 2CH OPEN DRN 8SMD |
2,723 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Obsolete | 2 | 2/0 | 3750Vrms | 5kV/µs, 7kV/µs | DC | Open Drain | 10 mA | 10MBd | 120ns, 120ns | -, 15ns | 1.2V | 20mA | 2.7V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|

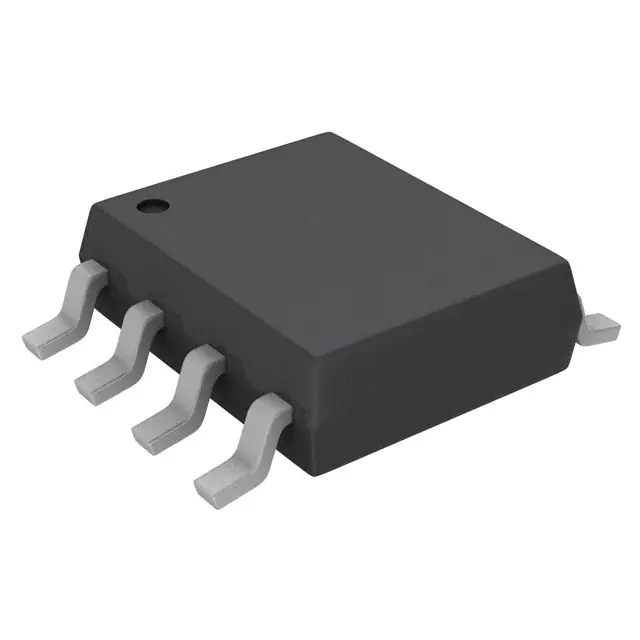

TLP2161(F)OPTOISO 2.5KV 2CH PUSH PULL 8SO |
4,245 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 2500Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO |
|
|
TLP2168(F)OPTOISO 2.5KV 2CH OPN COL 8SO |
4,056 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 20MBd | 60ns, 60ns | 30ns, 30ns | 1.57V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO |
|
|
TLP2405(F)OPTOISO 3.75KV PSH PULL 8SOIC |
2,548 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5Mbps | 250ns, 250ns | 30ns, 30ns | 1.57V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO |
|
|
TLP2468(F)OPTOISO 3.75KV OPN COLLECTOR 8SO |
3,572 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 20MBd | 60ns, 60ns | 30ns, 30ns | 1.57V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO |
|

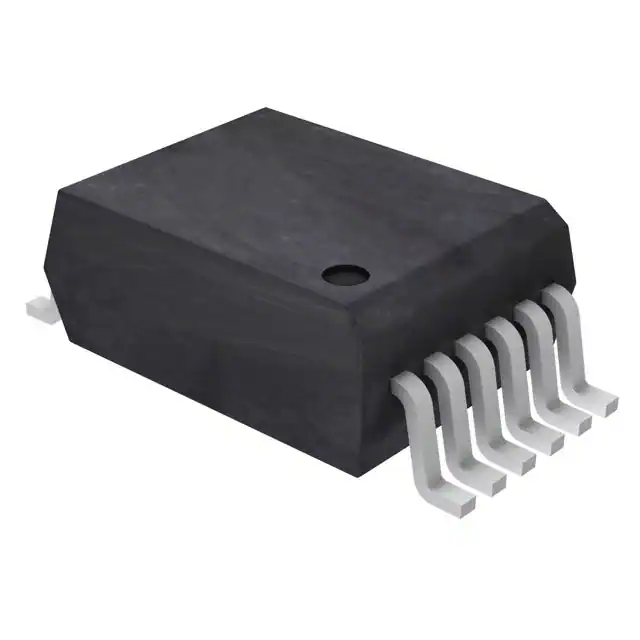

ACFL-6212T-000EOPTOISO 5KV 2CH PSH PULL SO12 |
1,218 | 0.00 |
|
Datasheet |
R²Coupler™ | 12-BSOP (0.295", 7.50mm Width) | Tube | Obsolete | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 12-SO |
|
|
PC410LENIP0FELECTRONIC COMPONENT OPTO |
2,371 | 0.00 |
|
Datasheet |
- | - | Bulk | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | - |
|
|
PC410LKNIP0FELECTRONIC COMPONENT OPTO |
3,204 | 0.00 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC410LRNIP0FELECTRONIC COMPONENT OPTO |
3,907 | 0.00 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC4D10SNIPSFELECTRONIC COMPONENT OPTO |
4,922 | 0.00 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PC400J000007OPTOISO 5KV OPEN COLLECTOR SMD |
3,889 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Discontinued at Digi-Key | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6N137-560OPTOCOUPLER(10MBD) T/R+VDE |
3,681 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.8V (Max) | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
