Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RV1S9184QKCSP-1000#SC0PS23 |
2,662 | 5.18 |
|
- |
* | - | Strip | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
-V.jpg)
|

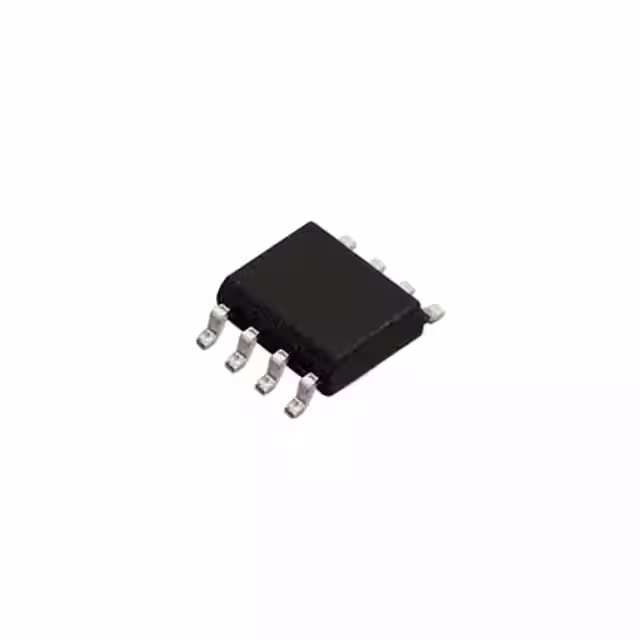

EL2631S(TA)-VOPTOISO 5KV 2CH OPN COLL 8-SMD |
2,623 | 2.67 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
HCPL-0601-560EOPTOISO 3.75KV OPN COLLECTOR 8SO |
4,099 | 2.82 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
FOD260LSOPTOISO 5KV OPEN COLLECTOR 8SMD |
1,035 | 1.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 75ns | 22ns, 3ns | 1.4V | 50mA | 3V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
FOD8163R2OPTOISO 5KV OPEN COLLECTOR 6SOP |
1,241 | 1.00 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 20ns, 10ns | 1.45V | 25mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOP |
|
|
FOD8163VSSO6 3.3V 10MB VDE |
1,174 | 3.04 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 20ns, 10ns | 1.45V | 25mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOP |
|
|
FOD8163TR2OPTOISO 5KV OPEN COLLECTOR 6SOP |
948 | 1.21 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 20ns, 10ns | 1.45V | 25mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 6-SOP |
|
VO0601-X001TOPTOISO 4KV OPEN DRAIN 8SOIC |
1,290 | 2.98 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 4000Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|

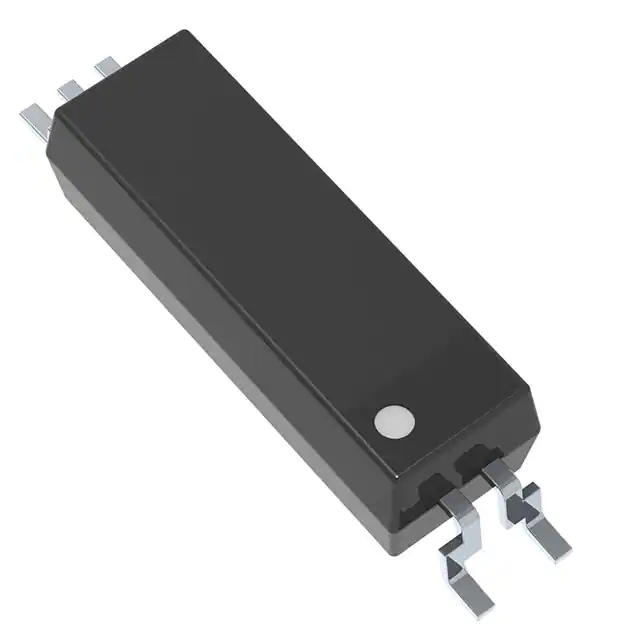

RV1S9209ACCSP-10YC#SC0IPM DRIVER (ACTIVE HIGH OUTPUT), |
840 | 0.00 |
|
Datasheet |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 200ns, 200ns | 25ns, 5ns | 1.56V | 20mA | 4.5V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
ACPL-W483-000EOPTOISO 5KV PUSH PULL 6SO |
3,337 | 4.25 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 120ns | 6ns, 6ns | 1.5V | 10mA | 4.5V ~ 30V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO |
|

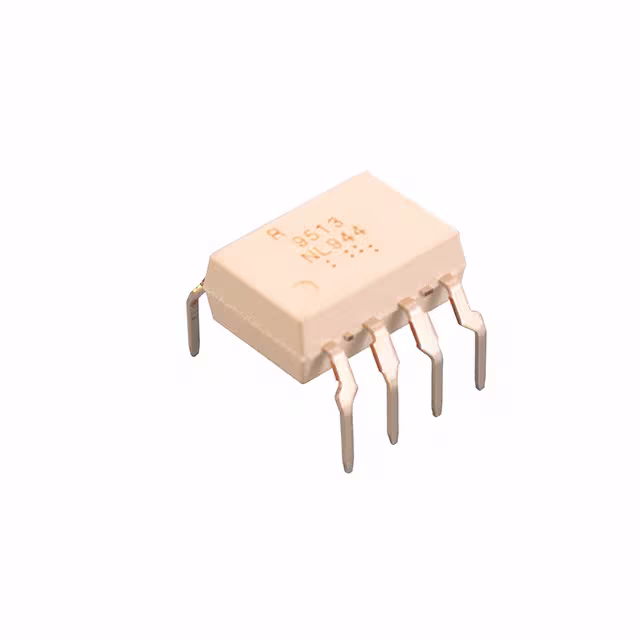

PS9513L1-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
780 | 4.09 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
|
ACPL-P611-000EOPTOISO 3.75KV OPN COLLECTOR 6SO |
8,800 | 4.37 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO |
|
ACPL-M71U-000EOPTOISO 3.75KV PUSH PULL 5SO |
1,434 | 3.64 |
|
Datasheet |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | - | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
|
RV1S9209ACCSP-10YV#SC0IPM DRIVER (ACTIVE HIGH OUTPUT), |
1,000 | 0.00 |
|
Datasheet |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 200ns, 200ns | 25ns, 5ns | 1.56V | 20mA | 4.5V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
|
ACPL-C61L-060EOPTOISO 5KV TRI-STATE 8SO |
2,265 | 4.52 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Tri-State | 10 mA | 10MBd | 90ns, 90ns | 12ns, 12ns | 1.5V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|

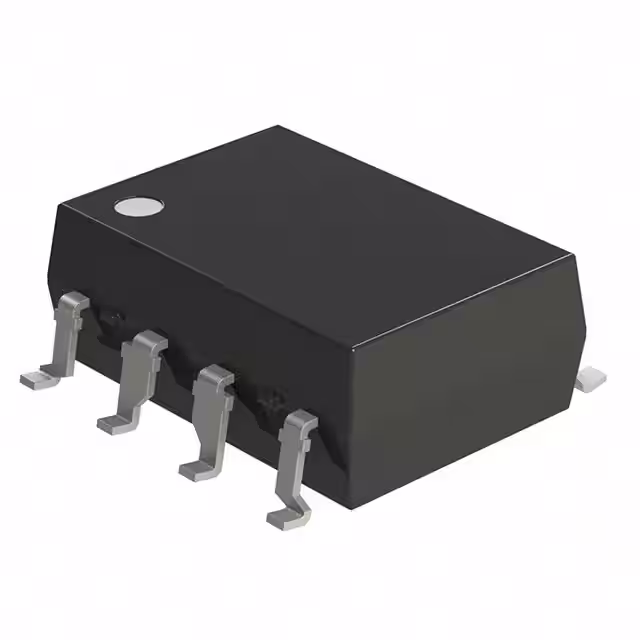

PS9513L3-AXOPTOISO 5KV OPEN COLL 8DIP GW |
760 | 4.41 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
VO2631-X007TOPTOISO 5.3KV 2CH OPEN DRN 8SMD |
239 | 3.41 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 5300Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.42V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
|
RV1S9260ACCSP-10YV#SC0OPTO COUPLER IN 5PIN SSOP |
880 | 4.47 |
|
Datasheet |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 20mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
|
ACPL-W60L-000EOPTOISO 5KV OPN COLL 6SO |
1,998 | 4.05 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO |
|

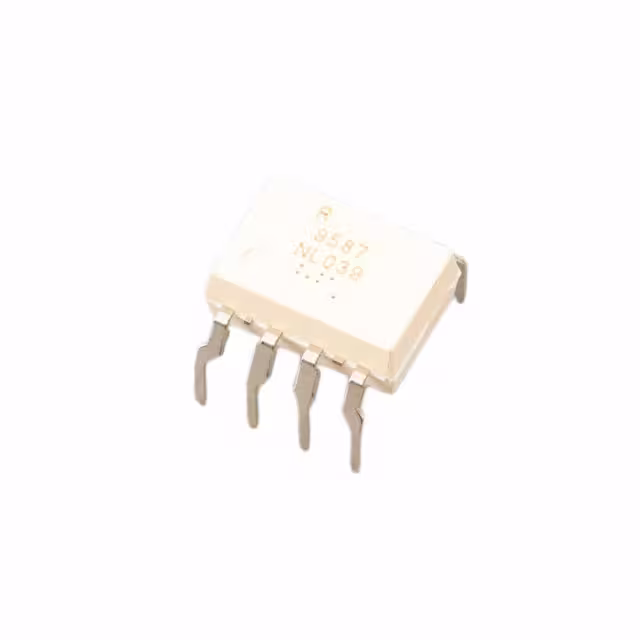

PS9587L1-AXOPTOISO 5KV OPEN COLLECTOR 8DIP |
600 | 4.72 |
|
Datasheet |
NEPOC | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
