Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-M75L-500EOPTOISO 3.75KV PUSH PULL 5SO |
9,700 | 3.52 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 5-SO |
|
RV1S9160ACCSP-100C#SC0HI-SPEED OPTOCPLR SO-5 |
4,236 | 4.63 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 3750Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
FOD0720OPTOISO 3.75KV PUSH PULL 8SO |
979 | 3.80 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25Mbps | 40ns, 40ns | 5ns, 4.5ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
ACPL-C61L-500EOPTOISO 5KV TRI-STATE 8SO |
6,600 | 4.52 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Tri-State | 10 mA | 10MBd | 90ns, 90ns | 12ns, 12ns | 1.5V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
|
ACPL-C61L-560EOPTOISO 5KV TRI-STATE 8SO |
7,882 | 4.60 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Tri-State | 10 mA | 10MBd | 90ns, 90ns | 12ns, 12ns | 1.5V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
RV1S9213ACCSP-10YC#SC0OPTO COUPLER IN 5PIN SSOP |
1,324 | 3.75 |
|
Datasheet |
- | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 1Mbps | 750ns, 500ns | - | 1.56V | 20mA | 4.5V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
.jpg)
|
ACNW261L-000EOPTOISO 5KV TRI-STATE 8DIP |
4,851 | 6.33 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Tri-State | 10 mA | 10MBd | 95ns, 95ns | 12ns, 12ns | 1.5V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Through Hole | 8-DIP |
|
|
HCPL0638OPTOISO 3.75KV 2CH OPEN COLL 8SO |
2,751 | 4.12 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 10Mbps | 75ns, 75ns | 17ns, 5ns | 1.75V (Max) | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
HCNW2601-500EOPTOISO 5KV OPEN COLL 8DIP GW |
2,811 | 3.98 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
.jpg)
|
FOD8160OPTOISO 5KV OPEN COLLECTOR 5SOP |
1,804 | 4.27 |
|
Datasheet |
- | 6-SOIC (0.362", 9.20mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 22ns, 9ns | 1.45V | 25mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 5-SOP |
|
|
FOD8160R2OPTOISO 5KV OPEN COLLECTOR 5SOP |
1,000 | 1.91 |
|
Datasheet |
- | 6-SOIC (0.362", 9.20mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 90ns, 80ns | 22ns, 9ns | 1.45V | 25mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 5-SOP |
|
|
FOD0710R2OPTOISO 3.75KV PUSH PULL 8SO |
1,813 | 1.84 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5Mbps | 40ns, 40ns | 5ns, 4.5ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
PS9123-F3-AXOPTOISO 3.75KV PUSH PULL 5SO |
3,747 | 4.09 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 13 mA | 15Mbps | 60ns, 60ns | - | 1.55V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|

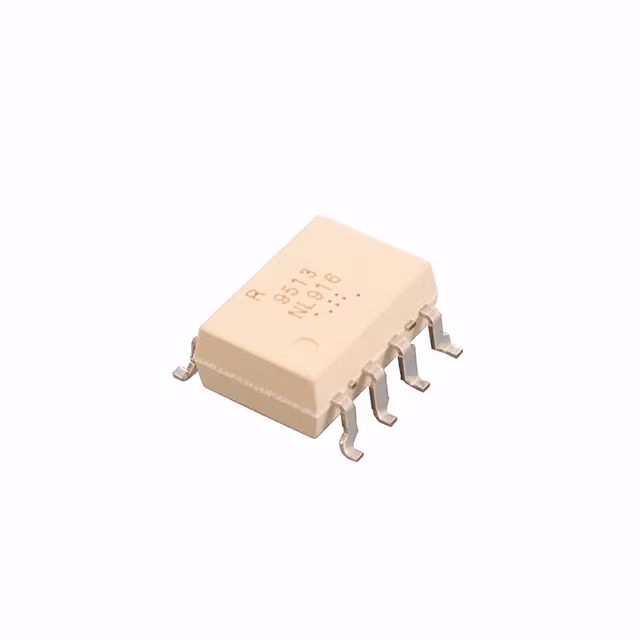

PS9513L3-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
680 | 4.09 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
PS9587L3-AXOPTOISO 5KV OPEN COLL 8DIP GW |
494 | 4.19 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
PS9587L2-V-AXHI-SPD OPTOCPLR 8-PIN DIP |
378 | 4.19 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
|
HCPL0639OPTOISO 3.75KV 2CH OPEN COLL 8SO |
2,933 | 2.87 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 10Mbps | 75ns, 75ns | 17ns, 5ns | 1.75V (Max) | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
RV1S9160ACCSP-100V#SC0HI-SPEED OPTOCPLR SO-5 |
628 | 4.56 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 3750Vrms | 50kV/µs | - | CMOS | 10 mA | 15Mbps | 60ns, 60ns | 5ns, 5ns | 1.55V | 6mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
ACPL-K24L-500EOPTOISO 5KV 2CH PUSH PULL 8SO |
1,890 | 5.00 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 11ns | 1.5V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
HCPL-263A-000EOPTOISO 3.75KV 2CH OPEN COL 8DIP |
846 | 6.86 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
