Logic Output Optoisolators

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Channels	Inputs - Side 1/Side 2	Voltage - Isolation	Common Mode Transient Immunity (Min)	Input Type	Output Type	Current - Output / Channel	Data Rate	Propagation Delay tpLH / tpHL (Max)	Rise / Fall Time (Typ)	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Voltage - Supply	Grade	Qualification	Operating Temperature	Mounting Type	Supplier Device Package
H11L2TVM LOGIC IC OUTPUT OPTOCOUPLER, 750 Fairchild Semiconductor	605	1.49	RFQ	Datasheet	-	6-DIP (0.400", 10.16mm)	Bulk	Active	1	1/0	4170Vrms	-	DC	Open Collector	50 mA	1MHz	4µs, 4µs	100ns, 100ns	1.2V	30mA	3V ~ 15V	-	-	-40°C ~ 85°C	Through Hole	6-DIP
6N137TSVM HIGH SPEED 10MBIT/S LOGIC GATE O Fairchild Semiconductor	1,000	1.75	RFQ	Datasheet	-	8-SMD, Gull Wing	Bulk	Active	1	1/0	5000Vrms	10kV/µs (Typ)	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	30ns, 10ns	1.45V	50mA	4.5V ~ 5.5V	-	-	-40°C ~ 100°C	Surface Mount	8-SMD
TLP2748(TP,E OPTOISO 5KV PUSH PULL SO6L Toshiba Semiconductor and Storage	2,311	1.15	RFQ	Datasheet	-	6-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Active	1	1/0	5000Vrms	30kV/µs	DC	Push-Pull, Totem Pole	50 mA	-	120ns, 120ns	3ns, 3ns	1.55V	15mA	4.5V ~ 30V	-	-	-40°C ~ 110°C	Surface Mount	6-SO
HCNW2601-000E OPTOISO 5KV OPEN COLLECTOR 8DIP Broadcom Limited	4,297	3.91	RFQ	Datasheet	-	8-DIP (0.400", 10.16mm)	Tube	Active	1	1/0	5000Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.64V	20mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
HCPL-2631-000E OPTOISO 3.75KV 2CH OPEN COL 8DIP Broadcom Limited	2,042	4.75	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	2	2/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	10MBd	100ns, 100ns	24ns, 10ns	1.5V	15mA	4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
ACPL-064L-000E OPTOISO 3.75KV 2CH PUSH PULL 8SO Broadcom Limited	2,278	4.93	RFQ	Datasheet	-	8-SOIC (0.154", 3.90mm Width)	Tube	Active	2	2/0	3750Vrms	20kV/µs	DC	Push-Pull, Totem Pole	10 mA	10MBd	80ns, 80ns	12ns, 12ns	1.3V	8mA	2.7V ~ 5.5V	-	-	-40°C ~ 105°C	Surface Mount	8-SO Tall
ACNT-H61L-000E OPTOISO 7.5KV PUSH PULL 8SO Broadcom Limited	4,262	6.68	RFQ	Datasheet	-	8-SOIC (0.535", 13.60mm Width)	Tube	Active	1	1/0	7500Vrms	20kV/µs	DC	Push-Pull, Totem Pole	-	10MBd	-	-	-	-	2.7V ~ 5.5V	-	-	-40°C ~ 105°C	Surface Mount	8-SO Stretched
HCPL-5200 OPTOISO 1.5KV TRI-STATE 8DIP Broadcom Limited	1,478	100.90	RFQ	Datasheet	-	8-CDIP (0.300", 7.62mm)	Tube	Active	1	1/0	1500VDC	1kV/µs	DC	Tri-State	15 mA	5MBd	350ns, 350ns	45ns, 10ns	1.3V	8mA	4.5V ~ 20V	-	-	-55°C ~ 125°C	Through Hole	8-DIP
TLP2761(D4-TP,E HIGH SPEED LOGIC OUTPUT OPTOCOUP Toshiba Semiconductor and Storage	1,605	0.42	RFQ	Datasheet	-	6-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Active	1	1/0	5000Vrms	20kV/µs	AC, DC	Push-Pull, Totem Pole	10 mA	15MBd	80ns, 80ns	3ns, 3ns	1.5V	10mA	2.7V ~ 5.5V	-	-	-40°C ~ 125°C	Surface Mount	6-SO
TLP250H(F) X36 PB-F DRIVER COUPLER DIP 8 TH Toshiba Semiconductor and Storage	2,589	1.78	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	1	1/0	3750Vrms	40kV/µs	DC	Push-Pull, Totem Pole	2.5 A	-	500ns, 500ns	50ns, 50ns	1.57V	20mA	10V ~ 30V	-	-	-40°C ~ 125°C	Through Hole	8-DIP
TLP2662(F) OPTOISO 5KV 2CH OPN COL 8DIP Toshiba Semiconductor and Storage	1,167	1.84	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	2	2/0	5000Vrms	20kV/µs	DC	Open Collector	25 mA	10MBd	75ns, 75ns	12ns, 3ns	1.55V	20mA	2.7V ~ 5.5V	-	-	-40°C ~ 125°C	Through Hole	8-DIP
HCPL-060L OPTOISO 3.75KV OPN COLLECTOR 8SO Broadcom Limited	3,132	1.73	RFQ	Datasheet	-	8-SOIC (0.154", 3.90mm Width)	Tube	Active	1	1/0	3750Vrms	10kV/µs	DC	Open Collector, Schottky Clamped	50 mA	15MBd	75ns, 75ns	24ns, 10ns	1.5V	20mA	2.7V ~ 3.6V, 4.5V ~ 5.5V	-	-	-40°C ~ 85°C	Surface Mount	8-SO Tall
5962-88769022A OPTOISO 1.5KV PUSH PULL 20LCCC Broadcom Limited	2,894	209.96	RFQ	Datasheet	-	20-CLCC	Tube	Active	2	2/0	1500VDC	1kV/µs	DC	Push-Pull, Totem Pole	15 mA	5MBd	350ns, 350ns	45ns, 10ns	1.3V	8mA	4.5V ~ 20V	-	-	-55°C ~ 125°C	Surface Mount	20-LCCC (8.89x8.89)
TLP5772(TP,E OPTOISO 5KV 1CH PSH PULL 6SO Toshiba Semiconductor and Storage	4,073	2.38	RFQ	Datasheet	-	6-SOIC (0.295", 7.50mm Width)	Tape & Reel (TR)	Active	1	1/0	5000Vrms	35kV/µs	DC	Push-Pull, Totem Pole	-	-	150ns, 150ns	15ns, 8ns	1.65V	8mA	10V ~ 30V	-	-	-40°C ~ 110°C	Surface Mount	6-SO
VO0611T OPTOISO 4KV OPEN DRAIN 8SOIC Vishay Semiconductor Opto Division	2,684	3.08	RFQ	Datasheet	-	8-SOIC (0.154", 3.90mm Width)	Tape & Reel (TR)	Active	1	1/0	4000Vrms	15kV/µs	DC	Open Drain	50 mA	10MBd	100ns, 100ns	23ns, 7ns	1.4V	20mA	4.5V ~ 5.5V	-	-	-40°C ~ 100°C	Surface Mount	8-SOIC
APS1551SZ OPTOISO 3.75KV PUSH PULL Panasonic Electric Works	4,201	5.85	RFQ	Datasheet	-	6-SOIC (0.173", 4.40mm Width), 5 Leads	Tape & Reel (TR)	Active	1	1/0	3750Vrms	15kV/µs	DC	Push-Pull, Totem Pole	10 mA	50Mbps	30ns, 30ns	4ns, 5ns	1.6V	25mA	4.5V ~ 5.5V	-	-	-40°C ~ 105°C	Surface Mount	6-SO, 5 Lead
TLP104(E) OPTOISO 3.75KV OPEN COLL SO6-5 Toshiba Semiconductor and Storage	3,956	1.51	RFQ	Datasheet	-	6-SOIC (0.179", 4.55mm Width), 5 Leads	Tube	Active	1	1/0	3750Vrms	15kV/µs	DC	Open Collector	8 mA	1Mbps	550ns, 400ns	-	1.61V	25mA	4.5V ~ 30V	-	-	-40°C ~ 125°C	Surface Mount	6-SO, 5 Lead
TLP2366(V4,E OPTOISO 3.75KV PSH PULL SO6-5 Toshiba Semiconductor and Storage	2,175	1.51	RFQ	Datasheet	-	6-SOIC (0.179", 4.55mm Width), 5 Leads	Tube	Active	1	1/0	3750Vrms	20kV/µs	DC	Push-Pull, Totem Pole	10 mA	20MBd	40ns, 40ns	15ns, 15ns	1.61V	25mA	2.7V ~ 5.5V	-	-	-40°C ~ 125°C	Surface Mount	6-SO, 5 Lead

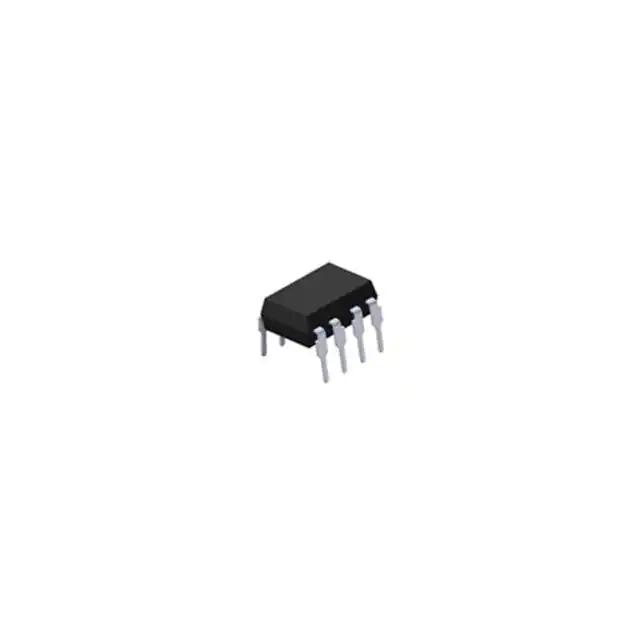

EL2601 OPTOISO 5KV OPEN COLLECTOR 8DIP Everlight Electronics Co Ltd	2,009	1.31	RFQ	Datasheet	-	8-DIP (0.300", 7.62mm)	Tube	Active	1	1/0	5000Vrms	5kV/µs	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	40ns, 10ns	1.4V	50mA	7V	-	-	-40°C ~ 85°C	Through Hole	8-DIP
6N137 8 PIN 10 MBITS HIGH SPEED LOGIC QT Brightek (QTB)	2,521	0.80	RFQ	Datasheet	Optocoupler	8-DIP (0.300", 7.62mm)	Tube	Active	1	1/0	5000Vrms	5kV/µs	DC	Open Collector	50 mA	10Mbps	75ns, 75ns	37ns, 10ns	1.4V	50mA	7V	-	-	-55°C ~ 85°C	Through Hole	8-DIP

Total 2459 Record«Prev 1... 49 50 51 525354 55 56...123 Next»
