Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ICPL0601SMT&ROPTOISO 3.75KV OPN COLLECTOR |
1,579 | 1.87 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.4V | 20mA | 7V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
EL2631OPTOISO 5KV 2CH OPN COLL 8-DIP |
3,330 | 2.58 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
TLP250H(LF1,F)X36 PB-F DRIVER COUPLER 8 GULL W |
2,913 | 1.78 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD |
|
6N137-X006OPTOISO 5.3KV 1CH OPN DRAIN 8DIP |
1,484 | 1.89 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Open Drain | 50 mA | 10MBd | 75ns, 75ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
ELW137OPTOISO 5KV OPEN COLLECTOR 8DIP |
3,578 | 2.86 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|

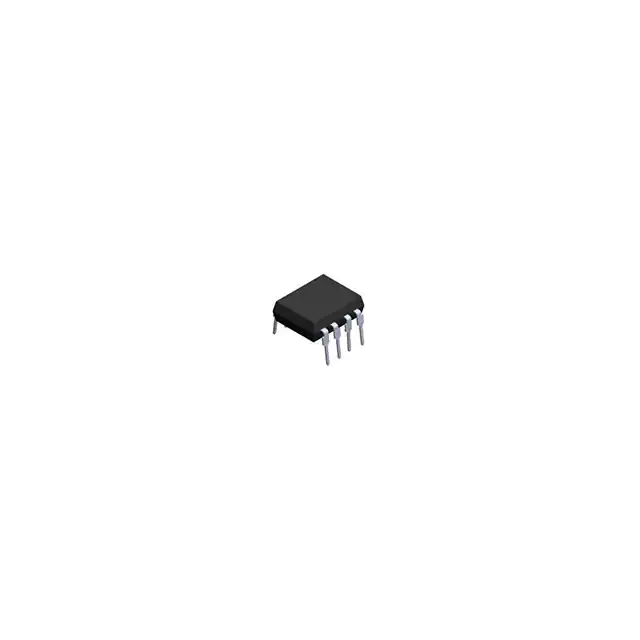

ELW2601OPTOISO 5KV OPEN COLLECTOR 8DIP |
4,149 | 2.86 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
-V.jpg)
|
EL2630S(TA)OPTOISO 5KV 2CH OPN COLL 8-SMD |
1,014 | 2.37 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
QT26018 PIN 10 MBITS HIGH SPEED LOGIC |
4,296 | 4.59 |
|
Datasheet |
Optocoupler | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 37ns, 10ns | 1.4V | 50mA | 7V | - | - | -55°C ~ 85°C | Through Hole | 8-DIP |
|
HCPL-7710-320EOPTOISO 5KV PUSH PULL 8DIP GW |
3,621 | 6.85 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
ACNV260E-000EOPTOISO 5KV OPEN COLLECTOR 10DIP |
2,063 | 13.19 |
|
Datasheet |
- | 10-DIP (0.512", 13.01mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 80ns, 80ns | 25ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Through Hole | 10-DIP |
|
|
HCPL-5600OPTOISO 1.5KV OPN COLLECTOR 8DIP |
2,454 | 82.10 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
|
IS6096PIN SCHMITT TRIGGER, SINGLE OPT |
2,519 | 0.00 |
|
Datasheet |
IS609 | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5300Vrms | - | DC | Tri-State | 50 mA | 1MHz | - | 50ns, 90ns | 1.5V (Max) | 50mA | 16V | - | - | -25°C ~ 85°C | Through Hole | 6-DIP |
|
H11L36PIN SCHMITT TRIGGER, SINGLE OPT |
1,943 | 0.00 |
|
Datasheet |
H11L3 | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5300Vrms | - | DC | Open Collector | 50 mA | 1MHz | 6µs, 3µs | 100ns, 100ns | 1.5V (Max) | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Through Hole | 6-DIP |
|
|
6N137VSM8PIN LOGIC OUTPUT, HIGH SPEED OP |
1,993 | 0.00 |
|
Datasheet |
6N137 | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
|
6N137VG8PIN LOGIC OUTPUT, HIGH SPEED OP |
2,761 | 0.00 |
|
Datasheet |
6N137 | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
.JPG)
|
TLP2366(TPR,E20MBPS HIGH SPEED COUPLER; SO6; |
1,080 | 0.48 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 40ns, 40ns | 15ns, 15ns | 1.61V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
6N137-020EOPTOISO 5KV 1CH OPEN COLL 8DIP |
1,039 | 0.65 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
6N137-560EOPTOISO 3.75KV 1CH OPN COLL 8SMD |
4,957 | 0.66 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.8V (Max) | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
VOWH260A-X017T10 MBD OPTOCOUPLER - SINGLE CHAN |
4,666 | 0.00 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 15kV/µs | Logic | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 10ns | 1.38V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-SMD |
|
HCPL2630SDVM8PW 10MB 2-CH SMD VDE T&R |
3,460 | 1.01 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
