Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

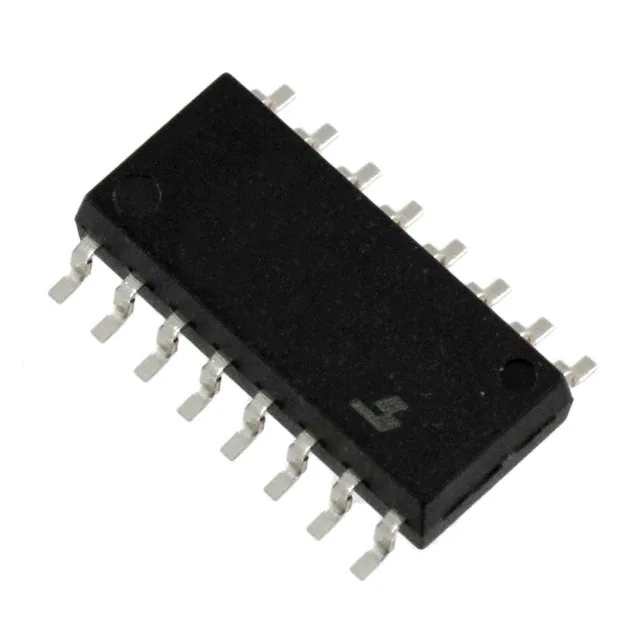

TLP293-4(LGBTP,EOPTOISOLATOR 3.75KV TRANS SO16 |
9,335 | 1.27 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP293-4(TP,EOPTOISOLATOR 3.75KV TRANS SO16 |
6,134 | 1.27 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
FOD2712AR2OPTOISO 2.5KV TRANSISTOR 8SOIC |
5,323 | 1.57 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
TLP293-4(GB,EOPTOISOLATOR 3.75KV TRANS SO16 |
4,918 | 1.27 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tube | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP293-4(GB-TP,EOPTOISOLATOR 3.75KV TRANS SO16 |
3,730 | 1.27 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP290-4(TP,EOPTOISOLTR 2.5KV 4CH TRANS 16-SO |
2,348 | 1.22 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 2500Vrms | 50% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|
|
TLP290-4(GB-TP,E)OPTOISOLTR 2.5KV 4CH TRANS 16-SO |
476 | 1.22 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 2500Vrms | 100% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|

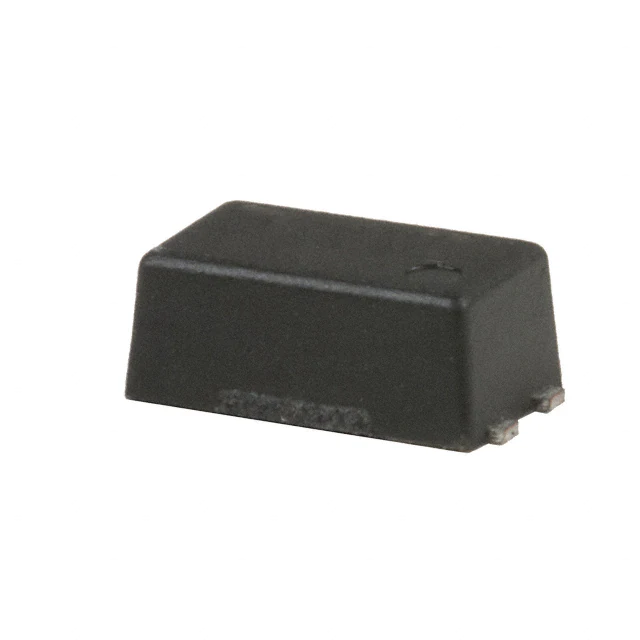

APV2111VYOPTOISO 1.5KV PHOTOVOLTAIC 4SSOP |
9,146 | 1.69 |
|
Datasheet |
- | 4-SMD, Flat Leads | Tape & Reel (TR) | Active | 1 | 1500Vrms | - | - | 800µs, 100µs | - | DC | Photovoltaic | 8.2V | 8µA | 1.15V | 50 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 4-SSOP |
|
6N139-000EOPTOISO 3.75KV DARL W/BASE 8DIP |
9,837 | 1.64 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
FODM8801CR2OPTOISO 3.75KV TRANS 4-MINI-FLAT |
7,055 | 1.78 |
|
Datasheet |
OptoHit™ | 4-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 200% @ 1mA | 400% @ 1mA | 6µs, 6µs | 5µs, 5.5µs | DC | Transistor | 75V | 30mA | 1.35V | 20 mA | 400mV | - | - | -40°C ~ 125°C | Surface Mount | 4-Mini-Flat |
|
|
TLP292-4(GB-TP,EOPTOISOLATOR 3.75KV TRANS SO16 |
43,953 | 1.34 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP292-4(LGBTR,EOPTOISOLATOR 3.75KV TRANS SO16 |
4,772 | 1.34 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
|
TLP292-4(LGBTP,EOPTOISOLATOR 3.75KV TRANS SO16 |
781 | 1.34 |
|
Datasheet |
- | 16-SOIC (0.179", 4.55mm Width) | Tape & Reel (TR) | Active | 4 | 3750Vrms | 100% @ 500µA | 600% @ 500µA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.25V | 50 mA | 300mV | - | - | -55°C ~ 125°C | Surface Mount | 16-SO |
|
6N136SDMOPTOISO 5KV TRANS W/BASE 8SMD |
3,567 | 1.68 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 250ns, 260ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
|
6N136-000EOPTOISO 3.75KV TRANS W/BASE 8DIP |
6,176 | 1.78 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Through Hole | 8-DIP |
|
TLP3905(TPR,EPHOTORVOLTAIC; 3.75KV BV; SO6; 1 |
2,874 | 0.62 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | - | - | 300µs, 1ms | - | DC | Photovoltaic | 7V | 30µA (Typ) | 1.65V | 30 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 6-SOP |
|
PS2501-4XSMOPTOISO 5.3KV 4CH TRANS 16SMD |
1,768 | 1.71 |
|
Datasheet |
- | 16-SMD, Gull Wing | Tube | Active | 4 | 5300Vrms | 80% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | - | 1.2V | 50 mA | 300mV | - | - | -30°C ~ 100°C | Surface Mount | - |
|
|
TLP3905(TPL,EPHOTORVOLTAIC; 3.75KV BV; SO6; 1 |
384 | 0.62 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | - | - | 300µs, 1ms | - | DC | Photovoltaic | 7V | 30µA (Typ) | 1.65V | 30 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 6-SOP |
|
PC452J00000FOPTOISOLATOR 3.75KV DARL 4SMD |
20,880 | 1.94 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 150mA | 1.2V | 50 mA | 1.2V | - | - | -30°C ~ 100°C | Surface Mount | 4-Mini-Flat |
|
ILD256TOPTOISOLTR 4KV 2CH TRANS 8-SOIC |
3,406 | 1.91 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Last Time Buy | 2 | 4000Vrms | 20% @ 10mA | - | - | - | AC, DC | Transistor | 70V | - | 1.2V | 30 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 8-SOIC |
