Transistor, Photovoltaic Output Optoisolators
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Voltage - Isolation | Current Transfer Ratio (Min) | Current Transfer Ratio (Max) | Turn On / Turn Off Time (Typ) | Rise / Fall Time (Typ) | Input Type | Output Type | Voltage - Output (Max) | Current - Output / Channel | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Vce Saturation (Max) | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-M50L-500EOPTOISOLATOR 3.75KV TRANS 5-SO |
15,283 | 2.54 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 100% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | - | - | -40°C ~ 105°C | Surface Mount | 5-SO |
|

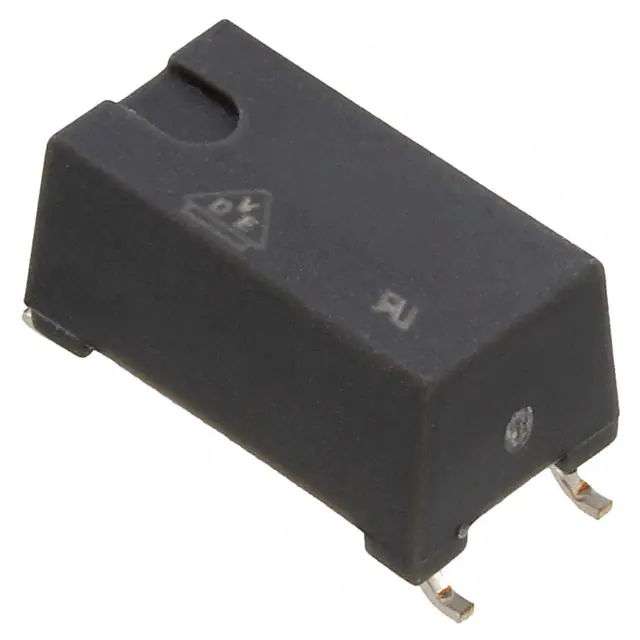

CNY64BOPTOISOLATOR 8.2KV TRANS 4-DIP |
734 | 2.62 |
|
Datasheet |
- | 4-DIP (0.200", 5.08mm) | Tube | Active | 1 | 8200Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.25V | 75 mA | 300mV | - | - | -55°C ~ 85°C | Through Hole | 4-DIP |
|
PS2801C-4-F3-AOPTOISO 2.5KV 4CH TRANS 16-SSOP |
38,346 | 2.49 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 4 | 2500Vrms | 50% @ 5mA | 400% @ 5mA | 10µs, 7µs | 5µs, 7µs | DC | Transistor | 80V | 30mA | 1.2V | 30 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 16-SSOP |
|
ACPL-244-500EOPTOISOLATOR 3KV 4CH TRANS 16-SO |
37,837 | 2.62 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 4 | 3000Vrms | 20% @ 1mA | 400% @ 1mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|
HCPL-4503-500EOPTOISOLTR 3.75KV TRANS 8-DIP GW |
77,418 | 2.70 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
HCPL-0701-000EOPTOISO 3.75KV DARL W/BASE 8SOIC |
4,339 | 2.70 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SO |
|
|
ACPL-244-560EOPTOISO 3KV 4CH TRANS 16SOIC |
8,571 | 2.78 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | 4 | 3000Vrms | 20% @ 1mA | 400% @ 1mA | 3µs, 3µs | 2µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | - | - | -55°C ~ 110°C | Surface Mount | 16-SO |
|
|
HCPL-0701-500EOPTOISO 3.75KV DARL W/BASE 8SOIC |
871 | 2.78 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SO |
|
HCPL0453R2OPTOCOUPLR TRANS 1CHAN HS 8SOIC |
2,570 | 3.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 2500Vrms | 19% @ 16mA | 50% @ 16mA | 450ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.45V | 25 mA | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
PS2505L-4-AOPTOISOLTR 5KV 4CH TRANS 16-SMD |
2,136 | 2.74 |
|
Datasheet |
NEPOC | 16-SMD, Gull Wing | Tube | Not For New Designs | 4 | 5000Vrms | 80% @ 5mA | 600% @ 5mA | - | 3µs, 5µs | AC, DC | Transistor | 80V | 50mA | 1.17V | 80 mA | 300mV | - | - | -55°C ~ 100°C | Surface Mount | 16-SMD |
|
PS8101-F3-AXOPTOISOLATOR 3.75KV TRANS 6SO |
3,256 | 2.78 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 15% @ 16mA | 35% @ 16mA | 500ns, 600ns | - | DC | Transistor | 35V | 8mA | 1.7V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 5-SOP |
|
|
HCPL-M452-500EOPTOISO 3.75KV TRANSISTOR 6SOIC |
762 | 2.91 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 3750Vrms | 20% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | - | - | -55°C ~ 100°C | Surface Mount | 5-SO |
|

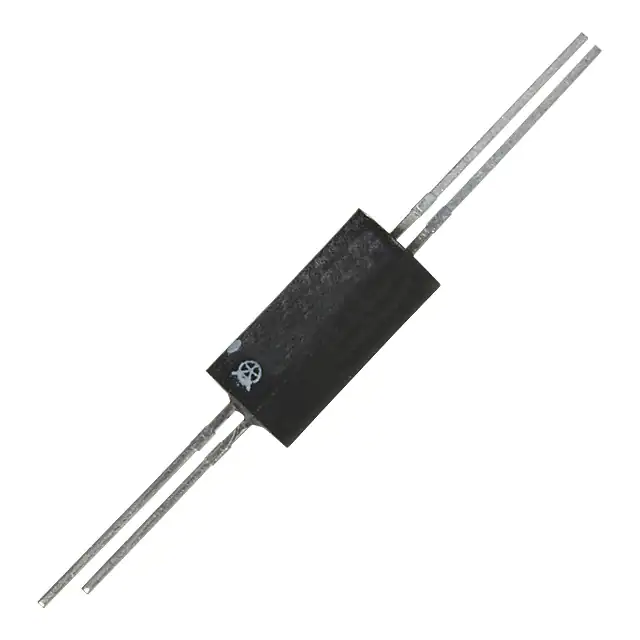

OPI1264COPTOISOLATOR 15KV TRANS AXIAL |
5,732 | 2.72 |
|
Datasheet |
- | Axial - 4 Leads | Bulk | Active | 1 | 15000VDC | 100% @ 10mA | - | - | - | DC | Transistor | 30V | - | 1.6V (Max) | 40 mA | 400mV | - | - | -40°C ~ 85°C | Through Hole | Axial |
|
|
OPI1264BOPTOISOLATOR 15KV TRANS AXIAL |
3,424 | 2.72 |
|
Datasheet |
- | Axial - 4 Leads | Bulk | Active | 1 | 15000VDC | 50% @ 10mA | 125% @ 10mA | - | - | DC | Transistor | 30V | - | 1.6V (Max) | 40 mA | 400mV | - | - | -40°C ~ 85°C | Through Hole | Axial |
|
|
SFH6916OPTOISO 3.75KV 4CH TRANS 16-SOP |
6,777 | 3.02 |
|
Datasheet |
- | 16-SOIC (0.173", 4.40mm Width) | Tube | Active | 4 | 3750Vrms | 50% @ 5mA | 300% @ 5mA | 5µs, 4µs | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.15V | 50 mA | 400mV | - | - | -55°C ~ 100°C | Surface Mount | 16-SOP |
|
|
CNY64AGRSTOPTOISOLATOR 8.2KV TRANS 4-SMD |
4,838 | 3.09 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 8200Vrms | 100% @ 5mA | 300% @ 5mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.32V | 75 mA | 300mV | - | - | -55°C ~ 85°C | Surface Mount | 4-SMD |
|
ACPL-W50L-000EOPTOISO 5KV TRANS 6-SO STRETCHED |
3,266 | 3.06 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 5000Vrms | 93% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | - | - | -40°C ~ 105°C | Surface Mount | 6-SO Stretched |
|
|
ACPL-M49T-000EOPTOISOLATOR 4KV TRANSISTOR 5-SO |
2,903 | 3.27 |
|
Datasheet |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 4000Vrms | 32% @ 10mA | 80% @ 10mA | - | - | DC | Transistor | 20V | 8mA | 1.5V | 20 mA | - | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|

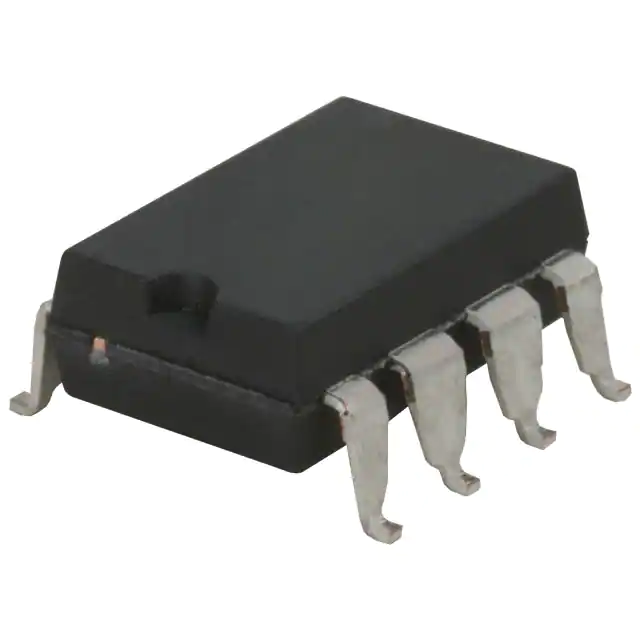

LOC110STROPTOISO 3.75KV PHVOLT 8SMD |
15,578 | 3.25 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 3750Vrms | - | - | - | - | DC | Photovoltaic, Linearized | - | - | 1.2V | - | - | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
|
CNY65AGRSTOPTOISOLATOR 8200V TRANS 4SMD |
17,505 | 3.09 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 8200Vrms | 100% @ 5mA | 300% @ 5mA | 5µs, 3µs | 2.4µs, 2.7µs | DC | Transistor | 32V | 50mA | 1.32V | 75 mA | 300mV | - | - | -55°C ~ 85°C | Surface Mount | 4-SMD |
