Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP86952GMJ-PIC HALF BRIDGE DRIVER 70A 41LGA |
1,500 | 0.00 |
|
Datasheet |
Intelli-Phase™ | 41-PowerVFLGA | Tape & Reel (TR) | Active | Half Bridge | Buck Converters | Logic, PWM | Inductive, Capacitive | Power MOSFET | - | 70A | 125A | 3V ~ 3.6V | 3V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Current Limiting, ESD, Over Temperature | Surface Mount | 41-LGA (5x6) |
.jpg)
|

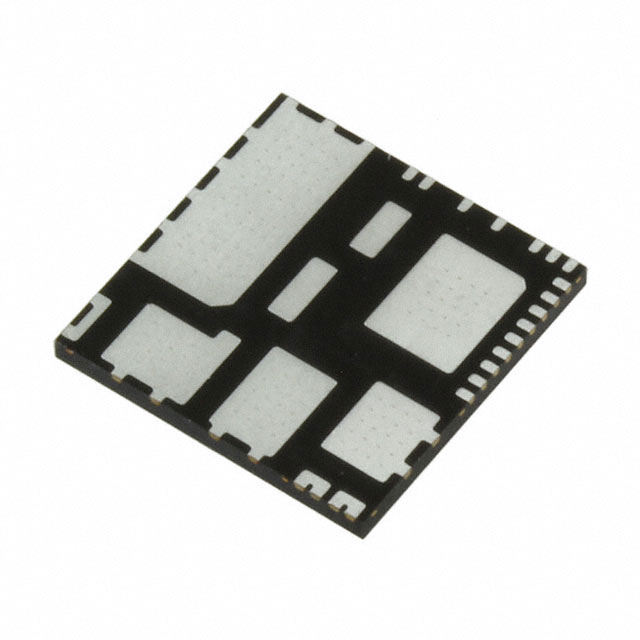

IRSM836-084MAIC HALF BRIDGE DRIVER 7A 36QFN |
864 | 9.06 |
|
Datasheet |
µIPM™ | 36-PowerVQFN | Tray | Active | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 310mOhm | 7A | 27A | 10V ~ 20V | 200V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 36-PQFN (12x12) |
|
MASTERGAN3TRIC HALF BRIDGE DRV 6.5A/4A 31QFN |
481 | 13.98 |
|
Datasheet |
- | 31-VQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | DC-DC Converters | Logic | Inductive, Capacitive, Resistive | DMOS | 225mOhm LS, 450mOhm HS | 6.5A, 4A | 6.5A, 4A | 3.3V ~ 15V | 3.3V ~ 15V | -40°C ~ 125°C | - | - | Bootstrap Circuit | Over Temperature, UVLO | Surface Mount | 31-QFN (9x9) |
|
CSD96497Q5MCTIC BRIDGE DRIVER 30A 12VSON |
250 | 6.72 |
|
Datasheet |
NexFET™ | 12-PowerTFDFN | Tape & Reel (TR) | Active | - | DC-DC Converters, Synchronous Buck Converter | PWM | Inductive, Capacitive, Resistive | Power MOSFET | - | 30A | 65A | 3.3V ~ 5V | 3.3V ~ 5V | -55°C ~ 150°C | - | - | Bootstrap Circuit, Diode Emulation | Over Current, Over Temperature, Shoot-Through, Short Circuit | Surface Mount | 12-VSON-CLIP (5x6) |
|

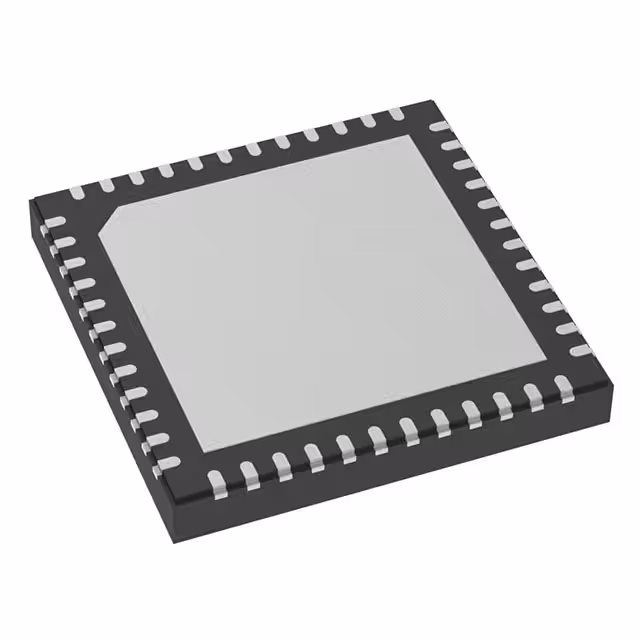

NCV7547MWTXGIC HALF BRIDGE DRIVER 48QFNW |
2,475 | 6.94 |
|
Datasheet |
- | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (7) | General Purpose | PWM, SPI | Capacitive and Resistive | NMOS | - | - | - | 4.5V ~ 5.5V | 7V ~ 18V | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Charge Pump | Over Load | Surface Mount, Wettable Flank | 48-QFNW (7x7) |
|
MP86957GMJ-ZIC HALF BRIDGE DRIVER 70A 41LGA |
4,441 | 8.75 |
|
Datasheet |
- | 41-PowerVFLGA | Tape & Reel (TR) | Active | Half Bridge | General Purpose | Analog, Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | - | 70A | 70A | 3V ~ 16V | 3V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Diode Emulation | Current Limiting, Over Current, Over Temperature | Surface Mount | 41-LGA (5x6) |
|
|
TPM8837E-DF4RH-BRIDGE DRIVER 17V 1A 8-DFN |
2,955 | 0.00 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, Relays, Solenoids, Stepper Motors | PWM | Inductive | MOSFET (Metal Oxide) | 1.1Ohm LS + HS | 1A | - | 1.8V ~ 5.5V | 2V ~ 11V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 8-DFN (2x2) |
|
|
TPM8837C-DF4RMOTOR DRIVER NMOS PWM 8-DFN (2X2 |
2,450 | 0.00 |
|
Datasheet |
- | 8-UFDFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, Relays, Solenoids, Stepper Motors | PWM | Inductive | MOSFET (Metal Oxide) | 850mOhm LS + HS | 1A | - | 2.5V ~ 17V | 2.5V ~ 17V | -40°C ~ 125°C (TA) | - | - | - | Current Limiting, ESD, Over Temperature, Short Circuit, UVLO | Surface Mount | 8-DFN (2x2) |
|
|
LM2005DR105-V, 0.5-A/0.8-A HALF-BRIDGE G |
2,737 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge | General Purpose | Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET, IGBT | - | 500mA, 800mA | 500mA, 800mA | 9V ~ 18V | 9V ~ 18V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 8-SOIC |
|
|
LM2005DSGR107-V, 0.5-A/0.8-A HALF-BRIDGE G |
2,632 | 0.00 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | General Purpose | Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET, IGBT | - | 500mA, 800mA | 500mA, 800mA | 9V ~ 18V | 9V ~ 18V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 8-WSON (2x2) |
|
|
TPM0596-TS3RLOW-SIDE DRIVER ARRAY IC 16-TSSO |
2,995 | 0.00 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Low Side | DC Motors, Relays, Solenoids, Stepper Motors | Logic | Inductive | NMOS | 2.03Ohm | 500mA | - | 4.5V ~ 50V | 0V ~ 50V | -40°C ~ 125°C (TA) | - | - | - | ESD, Over Temperature, UVLO | Surface Mount | 16-TSSOP |
|
|
UCC27289DRMRIC HALF BRIDGE DRIVER 8VSON |
2,872 | 0.00 |
|
Datasheet |
- | 8-VDFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | General Purpose | Analog, Logic, PWM | Inductive, Capacitive, Resistive | NMOS | - | - | 3A | 8V ~ 16V | 8V ~ 16V | -40°C ~ 125°C | - | - | Bootstrap Circuit | Current Limiting, Over Voltage, Short Circuit, UVLO | Surface Mount | 8-VSON (4x4) |
|
|
UCC27289DRCRIC HALF BRIDGE DRIVER 10VSON |
2,151 | 0.00 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | General Purpose | Analog, Logic, PWM | Inductive, Capacitive, Resistive | NMOS | - | - | 3A | 8V ~ 16V | 8V ~ 16V | -40°C ~ 125°C | - | - | Bootstrap Circuit | Current Limiting, Over Voltage, Short Circuit, UVLO | Surface Mount | 10-VSON (3x3) |
|
TLE94003EPXUMA1IC HALF BRIDGE DRVR 2A TSDSO-14 |
8,823 | 1.16 |
|
Datasheet |
- | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (3) | DC Motors, General Purpose | Direct | Inductive | DMOS | 825mOhm LS, 825mOhm HS | 2A | - | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TSDSO-14 |
|
UCC27289DIC HALF BRIDGE DRIVER 8SOIC |
578 | 1.77 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Half Bridge | General Purpose | Analog, Logic, PWM | Inductive, Capacitive, Resistive | NMOS, PMOS, Power MOSFET | - | - | 3.5A, 2.5A | 8V ~ 16V | 8V ~ 16V | -40°C ~ 125°C | - | - | Bootstrap Circuit | Current Limiting, Over Voltage, Short Circuit, UVLO | Surface Mount | 8-SOIC |
|
|
TLE94103EPXUMA1IC HALF BRIDGE DRVR 2A TSDSO-14 |
2,659 | 1.22 |
|
Datasheet |
- | 14-TSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (3) | DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 825mOhm LS, 825mOhm HS | 2A | - | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | PG-TSDSO-14 |
|
STDRIVE101TRIC HALF BRIDGE DRIVER 24VFQFPN |
3,010 | 1.59 |
|
Datasheet |
- | 24-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (3) | DC Motors, General Purpose | Analog, Logic | Capacitive and Resistive | Power MOSFET, IGBT | 35Ohm | - | 430mA | 9V ~ 20V | - | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Over Current, Over Temperature, UVLO | Surface Mount | 24-VFQFPN (4x4) |
|
SIC651CD-T1-GE3IC HALF BRIDGE DRIVER 50A PPAK |
2,986 | 1.52 |
|
Datasheet |
VRPower® | PowerPAK® MLP55-31L | Tape & Reel (TR) | Active | Half Bridge | General Purpose | Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | - | 50A | 100A | 4.5V ~ 5.5V | 24V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Over Current, Over Temperature, Shoot-Through, UVLO | Surface Mount | PowerPAK® MLP55-31L |
|
|
AOZ5611BQI60A/20V DRMOS POWER MODULE |
3,000 | 0.00 |
|
Datasheet |
- | 31-PowerVFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | Logic | Inductive, Capacitive | NMOS | - | 60A | 120A | 4.5V ~ 5.5V | 4.5V ~ 20V | -40°C ~ 125°C (TA) | - | - | Slew Rate Controlled | UVLO | Surface Mount | 31-QFN (5x5) |
|
ISL55110IRZ-TIC HALF BRIDGE DRVR 100MA 16QFN |
660 | 1.60 |
|
Datasheet |
- | 16-TFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (2) | Digital Imaging | Logic | Capacitive and Resistive | Power MOSFET | 3Ohm | 100mA | 3.5A | 2.7V ~ 5.5V | 5V ~ 13.2V | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 16-QFN (4x4) |
