Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP6610GS-ZIC HALF BRIDGE DRIVER 3A 8SOIC |
2,050 | 2.31 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge | DC Motors, General Purpose, Solenoids | Analog, Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | 120mOhm LS, 100mOhm HS | 3A | 3A | 4V ~ 55V | 4V ~ 55V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit, Charge Pump | Over Current, Over Temperature, Over Voltage, UVLO | Surface Mount | 8-SOIC |
|
MP8040DN-LF-ZIC HALF BRIDGE DRVR 4.25A 8SOICE |
2,490 | 1.10 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | General Purpose | PWM | Inductive | Power MOSFET | 100mOhm | 4.25A | 9A | 7.5V ~ 24V | 7.5V ~ 24V | -40°C ~ 85°C (TA) | - | - | Status Flag | Current Limiting, Over Temperature, UVLO | Surface Mount | 8-SOICE |
|
L2293QIC HALF BRIDG DRV 600MA 32VFQFPN |
5,186 | 4.86 |
|
Datasheet |
- | 32-VFQFN Exposed Pad | Tray | Active | Half Bridge (4) | DC Motors, Relays, Solenoids, Stepper Motors | Logic | Inductive | - | - | 600mA | 1.2A | 2.8V ~ 36V | 2.8V ~ 36V | -20°C ~ 125°C (TJ) | - | - | - | Over Temperature | Surface Mount | 32-VFQFPN (5x5) |
|
A5929KLPTR-TIC HALF BRIDGE DRIVER 24TSSOP |
7,986 | 1.00 |
|
Datasheet |
- | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | - | - | - | 5.5V ~ 50V | 5.5V ~ 50V | -40°C ~ 165°C (TJ) | - | - | Status Flag | Over Temperature, UVLO | Surface Mount | 24-TSSOP-EP |
|
|
TPM1525-SO1R-SH-BRIDGE DRIVER 150V 8-SOP |
7,955 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Capacitive and Resistive | DrMOS | 320mOhm LS, 310mOhm HS | 15A | 15A | 3V ~ 6V | 7V ~ 150V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 8-SOP |
|
|
LCS700LGIC HALF BRIDGE DRIVER ESIP16K |
295 | 3.63 |
|
Datasheet |
HiperLCS™ | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | 1.53Ohm | - | 5.2A | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Auto Restart, Slew Rate Controlled | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Through Hole | eSIP-16K |
|
|
CSD95420RCBTPROTOTYPE |
222 | 0.00 |
|
Datasheet |
NexFET™ | 27-PowerTFQFN | Bulk | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 25A | 50A | 4.5V ~ 5.5V | 4.5V ~ 14.5V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 27-QFN (4x5) |
|
|
AOZ5278QIQFN5X6 SPS WITH PROGRAMMABLE OCP |
2,653 | 0.00 |
|
Datasheet |
- | 39-PowerWFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | MOSFET (Metal Oxide) | - | 55A | 150A | 3V ~ 20V | 3V ~ 20V | -40°C ~ 125°C (TA) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Current Limiting, Over Temperature, Short Circuit, UVLO | Surface Mount | 39-QFN (5x6) |
|

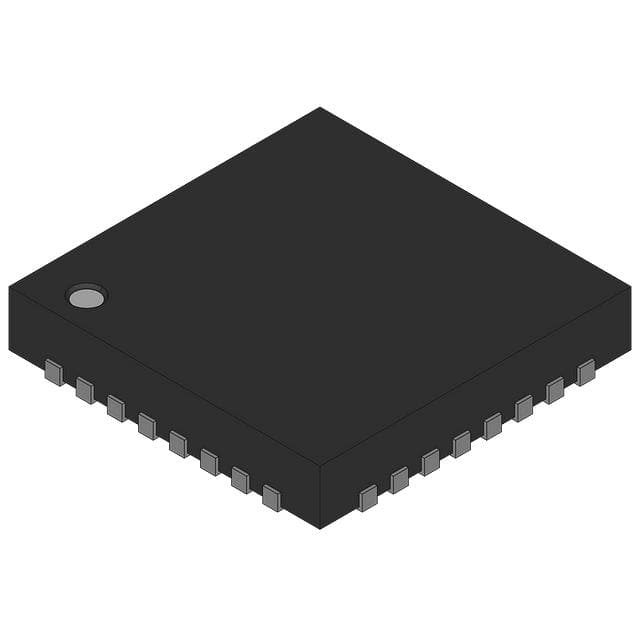

IRSM807-045MHIC HALF BRIDGE DRIVER 4A 31PQFN |
1,300 | 2.33 |
|
Datasheet |
- | 31-PowerVQFN | Tray | Active | Half Bridge | AC Motors | Logic | Inductive | UMOS | 1.5Ohm | 4A | 35A | 12V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 31-PQFN (8x9) |
|
|
MAX22256CATB+36V H-BRIDGE TRANSFORMER DRIVER |
3,978 | 0.00 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tray | Active | Half Bridge | General Purpose | Logic | Inductive, Capacitive, Resistive | - | 260mOhm LS, 520mOhm HS | 1A | 1A | 5V ~ 36V | 5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | - | Over Current, Over Temperature, UVLO | Surface Mount | 10-TDFN (3x3) |
|
|
MAX22256BATB+36V H-BRIDGE TRANSFORMER DRIVER |
4,204 | 0.00 |
|
Datasheet |
- | 10-WFDFN Exposed Pad | Tray | Active | Half Bridge | General Purpose | Logic | Inductive, Capacitive, Resistive | - | 260mOhm LS, 520mOhm HS | 1A | 1A | 5V ~ 36V | 5V ~ 36V | -40°C ~ 150°C (TJ) | - | - | - | Over Current, Over Temperature, UVLO | Surface Mount | 10-TDFN (3x3) |
|
|
LCS701LGIC HALF BRIDGE DRIVER ESIP16K |
299 | 4.03 |
|
Datasheet |
HiperLCS™ | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | 1Ohm | - | 7.7A | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Auto Restart, Slew Rate Controlled | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Through Hole | eSIP-16K |
|
|
NCV7728DPAR2GIC HALF BRIDGE DRVR 550MA 24SSOP |
2,500 | 1.83 |
|
Datasheet |
- | 24-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | Half Bridge (6) | DC Motors, General Purpose | SPI | Capacitive | DMOS | 1Ohm LS + HS | 550mA | 550mA | 3.15V ~ 5.25V | 5.5V ~ 28V | -40°C ~ 125°C (TJ) | - | - | - | Current Limiting, Over Temperature, Over Voltage, UVLO | Surface Mount | 24-SSOP |
|

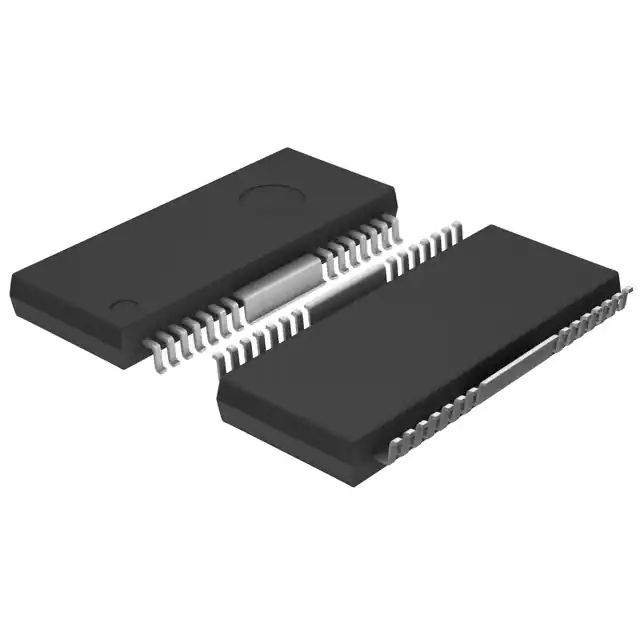

BA5826FP-E2IC HALF BRIDGE DRIVER 28HSOP |
1,490 | 3.72 |
|
Datasheet |
- | 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs | Tape & Reel (TR) | Not For New Designs | Half Bridge (8) | DC Motors, General Purpose, Voltage Regulators | Logic | Inductive | Bipolar | - | - | - | 4.5V ~ 9V | 5V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 28-HSOP-M |
|

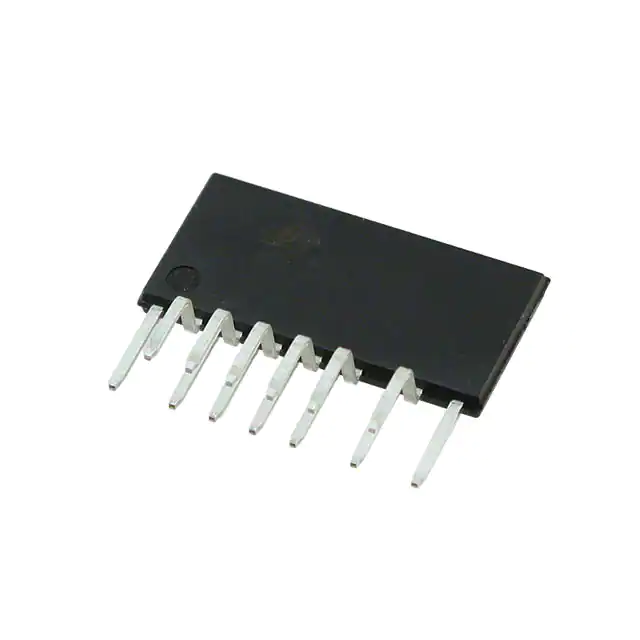

LCS702HGIC HALF BRIDGE DRIVER ESIP16J |
292 | 4.45 |
|
Datasheet |
HiperLCS™ | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | 740mOhm | - | 10.3A | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Auto Restart, Slew Rate Controlled | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Through Hole | eSIP-16J |
|
NCV7544MWTXGIC HALF BRIDGE DRIVER 12MA 32QFN |
5,000 | 2.04 |
|
Datasheet |
- | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Half Bridge (4) | General Purpose | PWM, SPI | Capacitive and Resistive | Power MOSFET | - | 12mA | - | 4.5V ~ 5.5V | 7V ~ 18V | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Charge Pump | Over/Under Voltage | Surface Mount | 32-QFN (5x5) |
|
CSD95495QVMIC HALF BRIDGE DRIVER 50A 18VSON |
1,398 | 2.54 |
|
Datasheet |
NexFET™ | 18-PowerTFDFN | Tape & Reel (TR) | Active | Half Bridge (3) | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 50A | 75A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 18-VSON (5x4) |
|
CSD95482RWJIC HALF BRIDGE DRIVER 40A 41VQFN |
2,500 | 2.63 |
|
Datasheet |
NexFET™ | 41-PowerTFQFN | Tape & Reel (TR) | Active | Half Bridge (3) | Synchronous Buck Converters | PWM | Inductive, Capacitive | Power MOSFET | - | 40A | 60A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through | Surface Mount | 41-VQFN-CLIP (5x6) |
|
IRSM807-045MHTRIC HALF BRIDGE DRIVER 4A 31PQFN |
1,970 | 3.06 |
|
Datasheet |
- | 31-PowerVQFN | Tape & Reel (TR) | Active | Half Bridge | AC Motors | Logic | Inductive | UMOS | 1.5Ohm | 4A | 35A | 12V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 31-PQFN (8x9) |
|
|
LCS703LGIC HALF BRIDGE DRIVER ESIP16K |
300 | 4.90 |
|
Datasheet |
HiperLCS™ | 16-SSIP, 13 Leads, Exposed Pad, Formed Leads | Tube | Active | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | 600mOhm | - | 12.9A | 11.4V ~ 15V | 11.4V ~ 15V | -40°C ~ 150°C (TJ) | - | - | Auto Restart, Slew Rate Controlled | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | Through Hole | eSIP-16K |
