Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

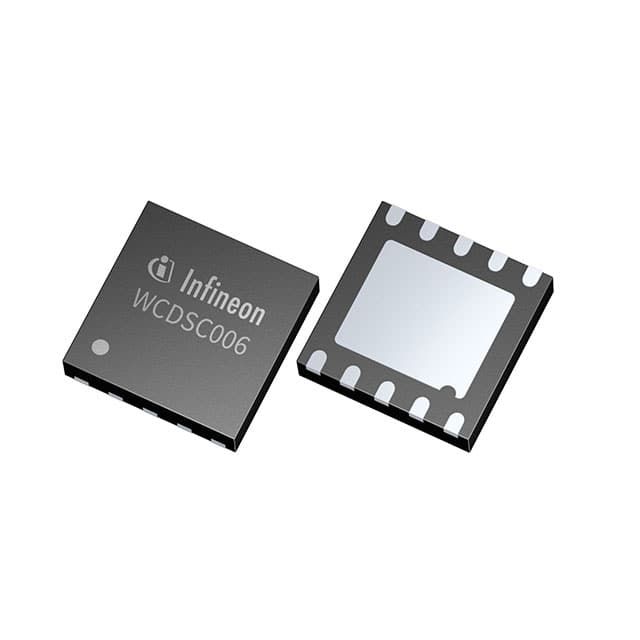

WCDSC006XUMA1IC HALF BRIDGE DRIVER 2A 10WSON |
4,032 | 1.81 |
|
Datasheet |
EiceDRIVER™ | 10-WDFN Exposed Pad | Tape & Reel (TR) | Last Time Buy | Half Bridge | General Purpose | Logic, PWM | Inductive, Capacitive, Resistive | Power MOSFET | 800mOhm LS (Max), 2Ohm HS (Max) | 2A | 2A | 4.75V ~ 5.5V | 4.75V ~ 5.5V | -40°C ~ 125°C (TJ) | - | - | - | Current Limiting, Shoot-Through, UVLO | Surface Mount | PG-WSON-10 |
|
LTC7068RMSE#TRPBF150V HALF BRIDGE MOSFET DRIVER |
2,049 | 0.00 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | DC-DC Converters | PWM | Inductive, Capacitive | NMOS | - | - | 3.6A | 4V ~ 14V | 150V (Max) | -40°C ~ 150°C (TJ) | - | - | - | Shoot-Through, UVLO | Surface Mount | 10-MSOP-EP |
|
MPQ8039GN-AEC1-ZIC HALF BRIDGE DRVR 4.25A 8SOIC |
1,151 | 1.59 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | General Purpose | PWM | Inductive | Power MOSFET | 100mOhm | 4.25A | 9A | 7.5V ~ 24V | 7.5V ~ 24V | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | - | Current Limiting, Over Temperature, UVLO | Surface Mount | 8-SOIC-EP |
|
STDRIVE601IC HALF BRIDGE DRIVER 28SO |
2,609 | 2.13 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tray | Active | Half Bridge (3) | DC Motors, General Purpose | Analog, Logic | Capacitive and Resistive | Power MOSFET, IGBT | 35Ohm | - | 350mA | 9V ~ 20V | - | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Over Current, Over Temperature, UVLO | Surface Mount | 28-SO |
|
LV8548MC-BHIC HALF BRIDGE DRIVER 1A 10SOIC |
4,591 | 0.00 |
|
- |
- | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | DMOS | 1Ohm | 1A | - | 4V ~ 16V | 4V ~ 16V | -30°C ~ 85°C (TA) | - | - | - | - | Surface Mount | 10-SOIC |
|
BD6884GUW-E2IC HALF BRIDGE DRVR VBGA035W040 |
2,130 | 0.00 |
|
Datasheet |
- | 35-VFBGA | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | - | 1.5Ohm | 500mA | - | 2.5V ~ 5.5V | 2.5V ~ 5.5V | -25°C ~ 150°C (TJ) | - | - | - | Over Temperature, UVLO | Surface Mount | VBGA035W040 |
|
ISL55110IVZ-TIC HALF BRIDGE DRVR 100MA 8TSSOP |
3,875 | 1.60 |
|
Datasheet |
- | 8-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Half Bridge (2) | Digital Imaging | Logic | Capacitive and Resistive | Power MOSFET | 3Ohm | 100mA | 3.5A | 2.7V ~ 5.5V | 5V ~ 13.2V | -40°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-TSSOP |
|
|
AOZ5313NQI20V/65A DRMOS FOR GPU |
3,987 | 0.00 |
|
Datasheet |
- | 31-PowerVFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 65A | 120A | 4.5V ~ 5.5V | 2.5V ~ 20V | -40°C ~ 125°C (TA) | - | - | Bootstrap Circuit, Diode Emulation, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 31-QFN (5x5) |
|
|
AOZ5518QI25V/65A 5X5 DRMOS POWER MODULE |
3,312 | 0.00 |
|
Datasheet |
- | 31-PowerVFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 65A | 120A | 4.5V ~ 5.5V | 4.5V ~ 25V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Diode Emulation | Over Temperature, Shoot-Through, UVLO | Surface Mount | 31-QFN (5x5) |
|
|
AOZ5318NQI25V/65A DRMOS FOR GPU |
3,596 | 0.00 |
|
Datasheet |
- | 31-PowerVFQFN Module | Tape & Reel (TR) | Active | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 65A | 120A | 4.5V ~ 5.5V | 2.5V ~ 25V | -40°C ~ 150°C (TA) | - | - | Bootstrap Circuit, Diode Emulation | Over Temperature, Shoot-Through, UVLO | Surface Mount | 31-QFN (5x5) |
|
LB1940U-TLM-EIC HALF BRIDGE DRVR 400MA 20MSOP |
3,048 | 0.00 |
|
- |
- | 20-VFSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 400mA | - | 1.9V ~ 6.5V | 1.6V ~ 7.5V | -20°C ~ 85°C (TA) | - | - | - | - | Surface Mount | 20-MSOP |
|
|
TDA7473AIC HALF BRIDGE DRIVER 28SO |
3,451 | 0.00 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Half Bridge (8) | DC Motors, Voltage Regulators | Logic | Inductive | - | - | - | 600mA | 6V ~ 15V | 6V ~ 15V | -25°C ~ 150°C (TJ) | - | - | - | Short Circuit | Surface Mount | 28-SO |
|
|
LA6585MC-AHIC HALF BRIDGE DRVR 700MA 10SOIC |
3,111 | 0.00 |
|
- |
- | 10-SOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 700mA | - | 2.2V ~ 14V | 2.2V ~ 14V | -30°C ~ 150°C (TJ) | - | - | Auto Restart | Over Temperature | Surface Mount | 10-SOIC |
|
|
LB1939T-TLM-EIC MOTOR DRIVER PAR 20TSSOP |
4,203 | 0.00 |
|
- |
- | 20-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 400mA | - | 1.9V ~ 6.5V | 1.6V ~ 7.5V | -20°C ~ 85°C (TA) | - | - | - | - | Surface Mount | 20-TSSOP |
|
|
MPQ8039GN-AEC1-PIC HALF BRIDGE DRVR 4.25A 8SOIC |
2,683 | 0.00 |
|
Datasheet |
MPQ | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | General Purpose | - | Capacitive and Resistive | NMOS | 100mOhm | 4.25A | 9A | 7.5V ~ 25V | 7.5V ~ 25V | -40°C ~ 125°C (TJ) | Automotive | AEC-Q100 | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | 8-SOIC-EP |
|
AOZ5007QIIC REG BUCK 50A 40QFN |
3,807 | 0.00 |
|
Datasheet |
DrMOS | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 30A | 80A | 4.5V ~ 5.5V | 4.5V ~ 25V | -40°C ~ 85°C (TA) | - | - | Bootstrap Circuit, Diode Emulation | Shoot Through, UVLO | Surface Mount | 40-QFN (6x6) |
|
|
AOZ5007QI-01IC REG BUCK 50A 40QFN |
1,988 | 0.00 |
|
Datasheet |
DrMOS | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive, Capacitive | DrMOS | - | 30A | 80A | 4.5V ~ 5.5V | 4.5V ~ 25V | -40°C ~ 85°C (TA) | - | - | Bootstrap Circuit, Diode Emulation | Shoot-Through, UVLO | Surface Mount | 40-QFN (6x6) |
|
|
MPQ8039GN-PIC HALF BRIDGE DRVR 4.25A 8SOIC |
1,517 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Half Bridge | DC Motors, DC-DC Converters | PWM | Capacitive and Resistive | NMOS | 100mOhm | 4.25A | 9A | 7.5V ~ 25V | 7.5V ~ 25V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Current Limiting, Over Temperature, UVLO | Surface Mount | 8-SOIC-EP |
|
BA5948FP-E2IC HALF BRIDGE DRIVER 28HSOP |
4,622 | 1.98 |
|
- |
- | 28-SOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Not For New Designs | Half Bridge (8) | DC Motors, General Purpose | Logic | Inductive | - | - | - | - | 4.5V ~ 14V | 5.1V ~ 6.1V | -35°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 28-HSOP |
|
|
MP1930GQN-ZMAX 75V, 10A, INTEGRATED HALF-BR |
1,558 | 0.00 |
|
- |
- | 26-PowerVQFN | Tape & Reel (TR) | Active | Half Bridge (3) | DC Motors, DC-DC Converters | Logic | Inductive | NMOS | 11mOhm | 10A | 10A | 9V ~ 18V | 9V ~ 18V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 26-QFN (7x7) |
