Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TDA21215AUMA1IC MOSFET DRIVER IQFN-40 |
3,230 | 0.00 |
|
Datasheet |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TDA21231AUMA1IC HALF BRIDGE DRIVER 55A 31IQFN |
4,065 | 0.00 |
|
Datasheet |
- | 31-PowerVFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | DrMOS | - | 55A | - | 4.5V ~ 7V | 5V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | PG-IQFN-31-2 |
|

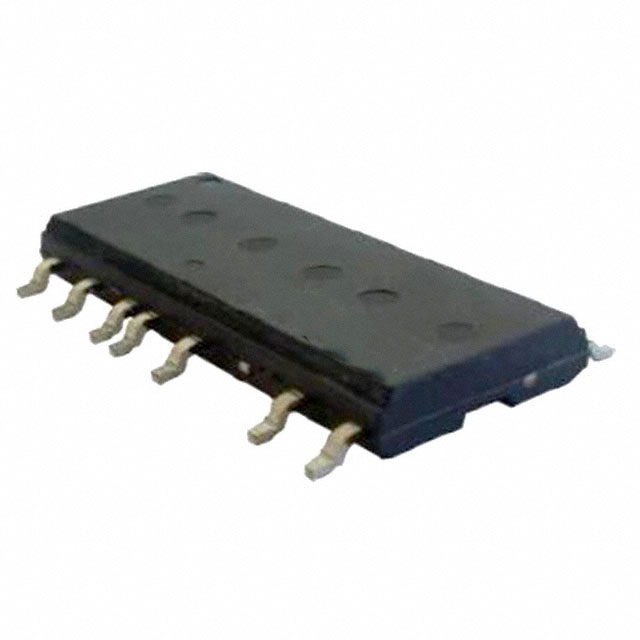

IRSM506-076PAIC HALF BRIDGE DRIVER 4A 23SOP |
1,638 | 1.00 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
|
|
STK534UC60A-E3PHASE INVERTER HIC |
2,992 | 0.00 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
STK534UC90A-E3PHASE INVERTER HIC |
1,049 | 0.00 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IRSM505-055PATRIC HALF BRIDGE DRIVER 2.4A 23SOP |
3,268 | 6.90 |
|
Datasheet |
µIPM™-DIP | 23-PowerSMD Module | Tape & Reel (TR) | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | UMOS | 1.3Ohm | 2.4A | 15A | 13.5V ~ 16.5V | 400V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Surface Mount | 23-SOP |
.jpg)
|

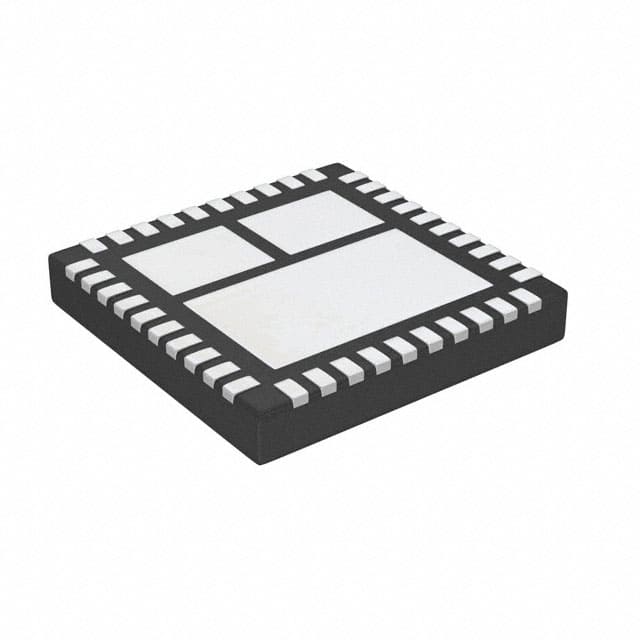

NCP5339MNTXGIC HALF BRIDGE DRIVER 50A 40QFN |
4,195 | 2.78 |
|
- |
- | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | DC-DC Converters | PWM | Inductive | NMOS | - | 50A | 80A | 4.5V ~ 5.5V | 4.5V ~ 16V | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, UVLO | Surface Mount | 40-QFN (6x6) |
|
|
HIP4082IBZTS2366AIC HALF/FULL BRIDGE DRVR 16SOIC |
2,173 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge, Full Bridge | DC Motors, General Purpose | Logic, PWM | Capacitive and Resistive | N-Channel MOSFET | - | - | 1.4A | 8.5V ~ 15V | 5V ~ 15V | -55°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | - | Surface Mount | 16-SOIC |
|
|
NWP2081T/1YNWP2081T/1Y |
1,279 | 0.00 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BTN8946TAAUMA1IC HALF BRIDGE DRVR 42A TO263-7 |
2,875 | 0.00 |
|
Datasheet |
NovalithIC™ | TO-263-7, D2PAK (6 Leads + Tab) | Tape & Reel (TR) | Discontinued at Digi-Key | Half Bridge | DC Motors, General Purpose | Logic, PWM | - | DMOS | 6.7mOhm LS + HS | 42A | - | 5.5V ~ 40V | 5.5V ~ 40V | - | - | - | Slew Rate Controlled | Current Limiting, Over Temperature, UVLO | Surface Mount | PG-TO263-7 |
|
L9960IC HALF BRIDGE DRIVER PWRSSO36 |
1,540 | 4.20 |
|
Datasheet |
- | 36-PowerBFSOP (0.295", 7.50mm Width) | Tube | Active | Half Bridge (2) | General Purpose | SPI | Inductive, Capacitive, Resistive | Power MOSFET | 400mOhm LS + HS | - | - | 4.5V ~ 5.5V | 4.5V ~ 28V | -40°C ~ 170°C (TJ) | Automotive | AEC-Q100 | Slew Rate Controlled | Over Temperature, Short Circuit | Surface Mount | PowerSSO-36 EPD |
|
|
L9960TIC HALF BRIDGE DRIVER PWRSSO36 |
2,074 | 8.41 |
|
Datasheet |
- | 36-PowerBFSOP (0.295", 7.50mm Width) | Tube | Active | Half Bridge (2) | General Purpose | SPI | Inductive, Capacitive, Resistive | Power MOSFET | 400mOhm LS + HS | - | - | 4.5V ~ 5.5V | 4.5V ~ 28V | -40°C ~ 170°C (TJ) | Automotive | AEC-Q100 | Slew Rate Controlled | Over Temperature, Short Circuit | Surface Mount | PowerSSO-36 EPD |
|

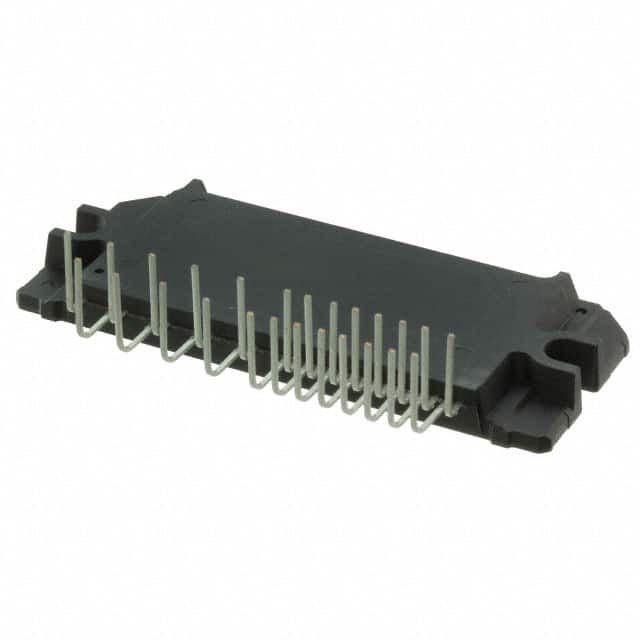

STK57FU394A-EIC HALF BRIDGE DRIVER 15A 35SIP |
4,751 | 1.00 |
|
Datasheet |
- | 35-SSIP, 25 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | - | Inductive | Bipolar | - | 15A | 30A | 12.5V ~ 17V | 400V (Max) | 150°C (TJ) | - | - | - | - | Through Hole | 35-SIP |
|

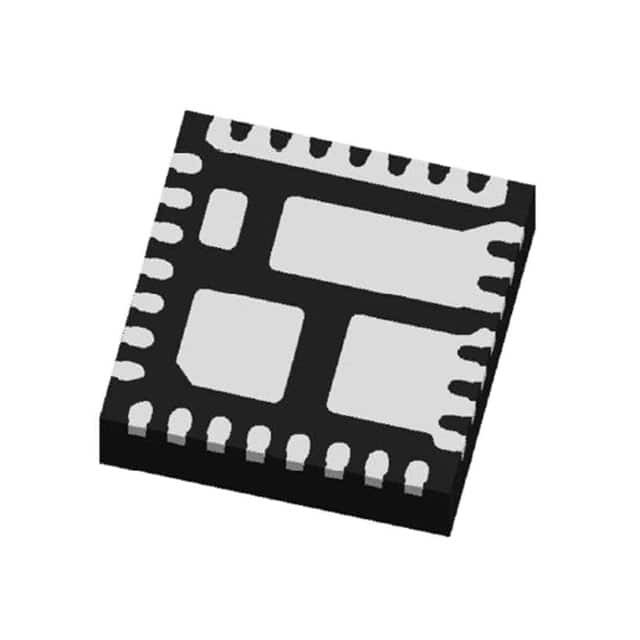

TDA21240AUMA1IC HALF BRIDGE DRIVER 40A 30IQFN |
4,534 | 4.69 |
|
- |
- | 30-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 40A | - | 4.5V ~ 7V | 5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Shoot-Through, UVLO | Surface Mount | PG-IQFN-30-2 |
|
|
TDA21241AUMA1IC HALF BRIDGE DRIVER 35A 30IQFN |
3,416 | 0.00 |
|
Datasheet |
- | 30-PowerTFQFN | Tape & Reel (TR) | Discontinued at Digi-Key | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 35A | - | 4.5V ~ 7V | 5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, Shoot-Through, UVLO | Surface Mount | PG-IQFN-30-2 |
|
|
TDA21242AUMA1IC HALF BRIDGE DRIVER 25A 30IQFN |
2,481 | 4.08 |
|
Datasheet |
- | 30-PowerTFQFN | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 25A | - | 4.5V ~ 7V | 4.5V ~ 16V | -40°C ~ 125°C (TJ) | - | - | Bootstrap Circuit | Over Temperature, Shoot-Through, UVLO | Surface Mount | PG-IQFN-30-2 |
|
TLE94106ELXUMA1IC HALF BRIDGE DRVR 500MA 24SSOP |
1,156 | 1.00 |
|
Datasheet |
- | 24-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge (6) | DC Motors, General Purpose | SPI | Inductive | Power MOSFET | 850mOhm LS, 850mOhm HS | 500mA | 2A | 3V ~ 5.5V | 5.5V ~ 20V | -40°C ~ 150°C (TJ) | - | - | - | Over Temperature, Over Voltage, UVLO | Surface Mount | PG-SSOP-24 |
.jpg)
|

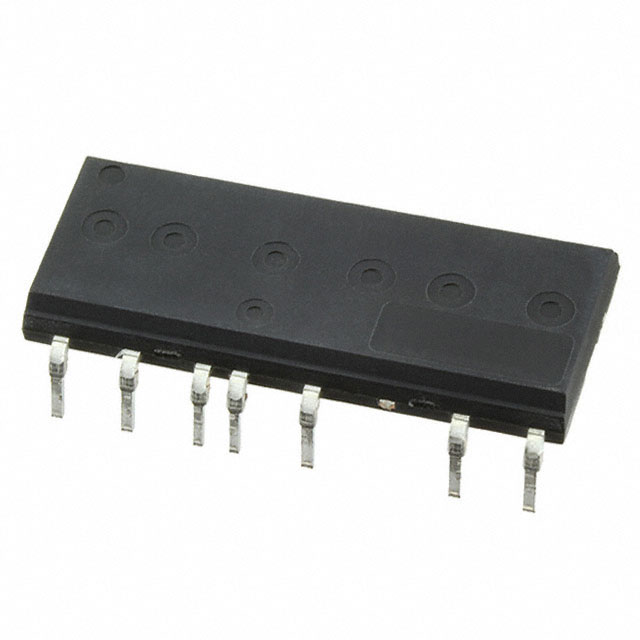

IRSM506-076DAIC HALF BRIDGE DRIVER 4A 23DIP |
1,339 | 0.00 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
|
|
IRSM516-076DAIC HALF BRIDGE DRIVER 4A 23DIP |
2,225 | 0.00 |
|
Datasheet |
µIPM™-DIP | 32-PowerDIP Module, 23 Leads | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIP |
.jpg)
|

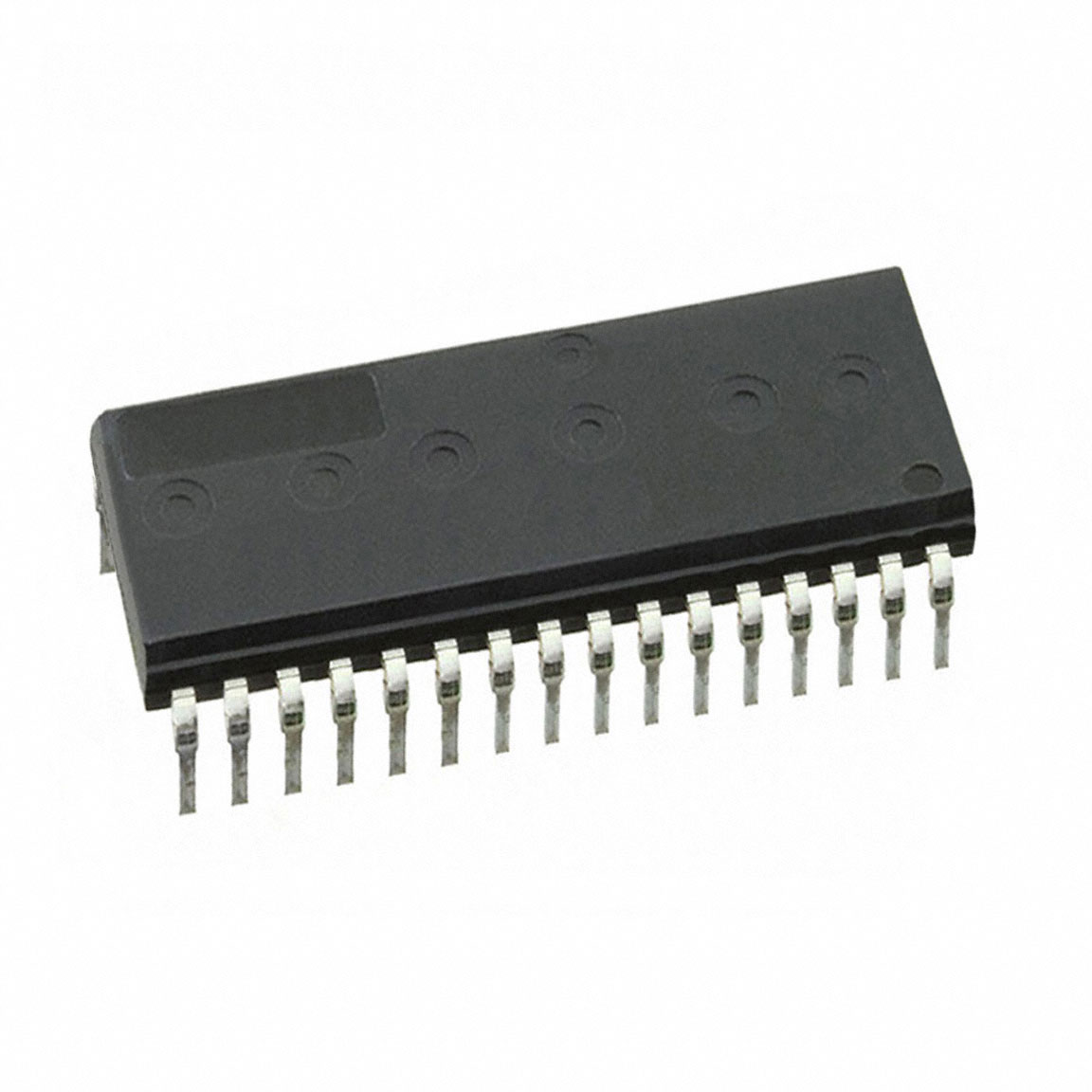

IRSM516-076DA2IC HALF BRIDGE DRIVER 4A 23DIP |
2,108 | 0.00 |
|
Datasheet |
µIPM™-DIP | 23-PowerDIP Module (0.551", 14.00mm) | Tube | Discontinued at Digi-Key | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 4A | 15A | 13.5V ~ 16.5V | 480V (Max) | -40°C ~ 150°C (TJ) | - | - | Bootstrap Circuit | UVLO | Through Hole | 23-DIPA |
