Full Half-Bridge (H Bridge) Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Configuration | Applications | Interface | Load Type | Technology | Rds On (Typ) | Current - Output / Channel | Current - Peak Output | Voltage - Supply | Voltage - Load | Operating Temperature | Grade | Qualification | Features | Fault Protection | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LA6584JA-ZHIC HALF BRIDGE DRVR 1.2A 20SSOP |
3,108 | 1.00 |
|
- |
- | 20-LSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1.2A | - | 2.8V ~ 14V | 2.8V ~ 14V | -30°C ~ 90°C (TA) | - | - | - | - | Surface Mount | 20-SSOP |
|
LA6588MC-BHIC HALF BRIDGE DRV 800MA 10MFPSK |
1,784 | 0.00 |
|
- |
- | 10-LSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 800mA | - | 8V ~ 26.4V | 8V ~ 26.4V | -30°C ~ 90°C (TA) | - | - | Auto Restart | Over Temperature, Short Circuit | Surface Mount | 10-MFPSK |
|
LA6595DMR2GIC HALF BRIDGE DRVR 500MA 8MSOP |
2,597 | 0.00 |
|
- |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 500mA | - | 2.2V ~ 14V | 2.2V ~ 14V | -30°C ~ 90°C (TA) | - | - | - | Over Temperature | Surface Mount | 8-MSOP |
|
LB1836ML-MPB-EIC HALF BRIDGE DRIVER 1A 14MFPS |
2,635 | 0.00 |
|
- |
- | 14-LSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1A | - | 2.5V ~ 9V | 1.8V ~ 9V | -40°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-MFPS |
|
|
LB1846MC-ZHIC HALF BRIDGE DRV 800MA 10MFPSK |
4,383 | 0.00 |
|
- |
- | 10-LSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 800mA | - | 2.5V ~ 7.5V | 2.5V ~ 7.5V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 10-MFPSK |
|
|
LB1867M-MPB-EIC HALF BRIDGE DRIVER 1A 14MFPS |
1,012 | 0.00 |
|
- |
- | 14-LSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Bipolar | - | 1A | - | 6.4V ~ 7V | 12V, 24V | -30°C ~ 80°C (TA) | - | - | - | Over Temperature | Surface Mount | 14-MFPS |
|
LB1937T-MPB-EIC HALF BRIDGE DRV 800MA 24TSSOP |
2,910 | 2.13 |
|
Datasheet |
- | 24-TFSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (8) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 800mA | - | 2.5V ~ 9.5V | 2.5V ~ 9.5V | -30°C ~ 85°C (TA) | - | - | - | Over Temperature | Surface Mount | 24-TSSOP |
|
LB1940T-MPB-EIC HALF BRIDGE DRV 400MA 20TSSOP |
2,515 | 1.00 |
|
- |
- | 20-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (4) | DC Motors, General Purpose, Stepper Motors | Logic | Inductive | Bipolar | - | 400mA | - | 1.9V ~ 6.5V | 1.6V ~ 7.5V | -20°C ~ 85°C (TA) | - | - | - | - | Surface Mount | 20-TSSOP |
|
|
LV8012T-MPB-EIC HALF BRIDGE DRVR 1.4A 24TSSOP |
2,846 | 1.39 |
|
Datasheet |
- | 24-TFSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (4) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 750mOhm | 1.4A | - | 2.7V ~ 5.5V | 2V ~ 7V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 24-TSSOP |
|
LV8013T-A-MPB-EIC HALF BRIDGE DRVR 1.2A 24TSSOP |
1,685 | 0.00 |
|
Datasheet |
- | 24-TFSOP (0.173", 4.40mm Width) | Tube | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | DMOS | 300mOhm | 1.2A | 2A, 3.8A | 2.7V ~ 5.5V | 2V ~ 15V | -20°C ~ 75°C (TA) | - | - | - | Over Temperature | Surface Mount | 24-TSSOP |
|
NCP5369MNTWGIC HALF BRIDGE DRIVER 35A 40QFN |
2,886 | 1.00 |
|
Datasheet |
- | 40-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Half Bridge | Synchronous Buck Converters | PWM | Inductive | Power MOSFET | - | 35A | 50A | 4.5V ~ 5.5V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Over Temperature, Shoot-Through, UVLO | Surface Mount | 40-QFN (6x6) |
|
STK611-721-EIC HALF BRIDGE DRIVER 2A 19SIP |
4,379 | 10.67 |
|
- |
- | 19-SSIP Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | Power MOSFET | - | 2A | 4A | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 150°C (TJ) | - | - | - | UVLO | Through Hole | 19-SIP |
|
STK621-015B-EIC HALF BRIDGE DRIVER 10A |
4,234 | 0.00 |
|
- |
- | - | Tube | Obsolete | Half Bridge (3) | - | Logic | - | - | - | 10A | - | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 100°C (TA) | - | - | - | - | - | - |
|
STK621-033N-EIC HALF BRIDGE DRIVER 15A 23SIP |
3,036 | 0.00 |
|
Datasheet |
- | 23-SIP, 19 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 15A | 30A | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 150°C (TJ) | - | - | Auto Restart, Bootstrap Circuit, Status Flag | Current Limiting, UVLO | Through Hole | 23-SIP |
|
|
STK621-041IC HALF BRIDGE DRIVER 20A 22SIP |
1,476 | 0.00 |
|
- |
- | 22-SIP, 18 Leads, Formed Leads | Tray | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 20A | 25A | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 150°C (TJ) | - | - | Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, UVLO | Through Hole | 22-SIP |
|
|
STK621-140B-EIC HALF BRIDGE DRIVER 10A 23SIP |
1,273 | 0.00 |
|
- |
- | 23-SIP, 19 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 10A | 15A | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 150°C (TJ) | - | - | Auto Restart, Bootstrap Circuit, Status Flag | Current Limiting, Over Temperature, UVLO | Through Hole | 23-SIP |
|
STK621-738-EIC HALF BRIDGE DRIVER 15A 21SIP |
4,940 | 0.00 |
|
- |
- | 29-SSIP Module, 21 Leads, Formed Leads | Tube | Obsolete | Half Bridge (3) | AC Motors | Logic | Inductive | IGBT | - | 15A | 30A | 12.5V ~ 17.5V | 400V (Max) | -20°C ~ 150°C (TJ) | - | - | Auto Restart, Bootstrap Circuit, Status Flag | Current Limiting, UVLO | Through Hole | 21-SIP |
|

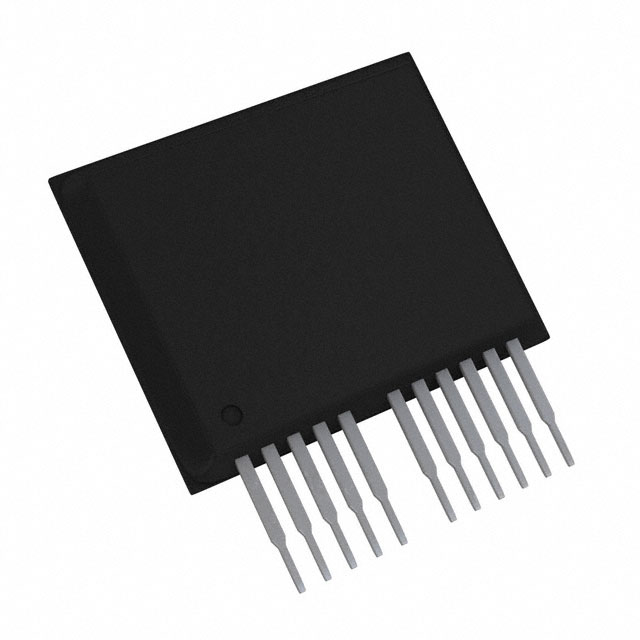

STK681-200-EIC HALF BRIDGE DRIVER 4.2A 12SIP |
3,879 | 7.33 |
|
Datasheet |
- | 12-SIP, 11 Leads | Bulk | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET, IGBT | - | 4.2A | - | 4.75V ~ 5.25V | 10V ~ 42V | 150°C (TJ) | - | - | - | - | Through Hole | 12-SIP |
|

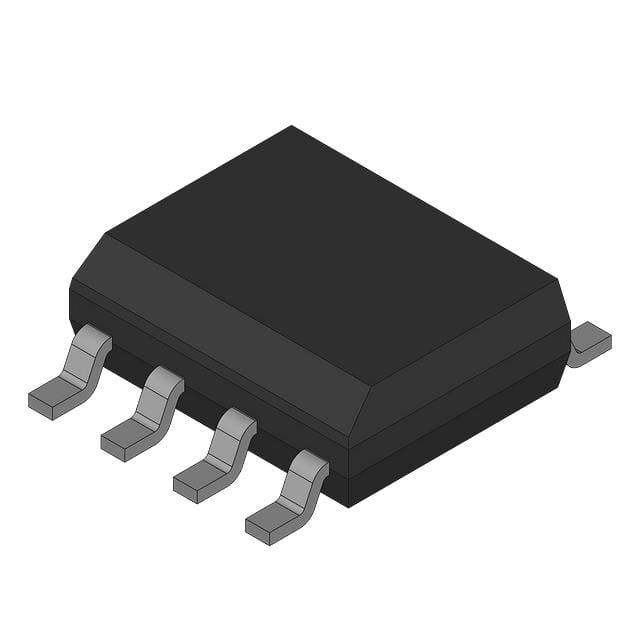

TND316S-TL-2HIC HALF BRIDGE DRIVER 8SOIC |
3,577 | 1.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge (2) | DC Motors, General Purpose | Logic | Inductive | Power MOSFET | 6Ohm LS, 8Ohm HS | - | 1A | 4.5V ~ 25V | 4.5V ~ 25V | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-SOIC |
|
TND523SS-TL-2HIC HALF BRIDGE DRIVER 8SOIC |
1,248 | 1.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Half Bridge | General Purpose | On/Off | Inductive | Power MOSFET | - | - | 200mA, 400mA | 10V ~ 20V | 600V (Max) | -55°C ~ 150°C (TJ) | - | - | - | - | Surface Mount | 8-SOIC |
