Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSC427MJA/883BIC GATE DRVR LOW-SIDE 8CERDIP |
1,305 | 0.00 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 25ns, 25ns | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | 8-CERDIP |
|
|
TSC428MJA/883BIC GATE DRVR LOW-SIDE 8CERDIP |
1,060 | 0.00 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting, Non-Inverting | - | 25ns, 25ns | -55°C ~ 125°C (TA) | Military | MIL-STD-883 | Through Hole | 8-CERDIP |
|
MIC5019YFT-T5IC GATE DRVR HIGH-SIDE 4TQFN |
4,384 | 0.00 |
|
Datasheet |
- | 4-UQFN | Tape & Reel (TR) | Discontinued at Digi-Key | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 2.7V ~ 9V | 0.8V, 3V | - | Non-Inverting | - | - | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 4-TQFN (1.2x1.2) |
|
SC1302CISTRTIC GATE DRVR LOW-SIDE 8SOIC |
1,743 | 0.00 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 16.5V | 0.8V, 2V | 2A, 2A | Inverting, Non-Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SC1302DSTRTIC GATE DRVR LOW-SIDE 8SOIC |
2,563 | 0.00 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 16.5V | 0.8V, 2V | 2A, 2A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
SC1302ESTRTIC GATE DRVR LOW-SIDE 8SOIC |
2,586 | 0.00 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 16.5V | 0.8V, 2V | 2A, 2A | Inverting | - | 20ns, 20ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
SC1301AISKTRTIC GATE DRVR LOW-SIDE SOT23-5 |
4,242 | 0.00 |
|
- |
- | SC-74A, SOT-753 | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 16.5V | 0.8V, 2V | 2A, 2A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|

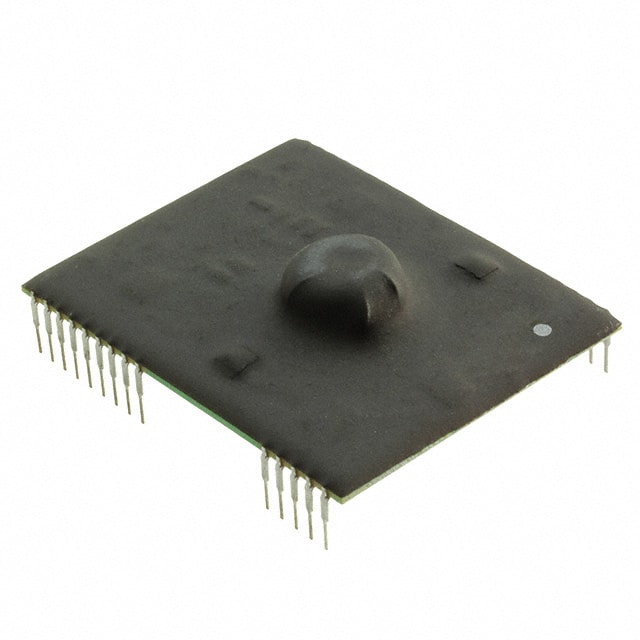

VLA567-01RIC GATE DRVR HALF-BRIDGE MODULE |
4,450 | 0.00 |
|
Datasheet |
- | 44-DIP Module, 28 Leads | Bulk | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.2V ~ 15.8V | - | - | Non-Inverting | - | 400ns, 300ns | -20°C ~ 70°C (TA) | - | - | Through Hole | Module |
|
VLA500K-01RIC GATE DRVR LOW-SIDE 21SIP |
4,527 | 51.56 |
|
Datasheet |
- | 30-SIP Module, 21 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14.2V ~ 15.8V | - | 12A, 12A | Non-Inverting | - | 300ns, 300ns | -20°C ~ 60°C (TA) | - | - | Through Hole | 21-SIP |
|
|
NCP81072MNTXGIC GATE DRVR HI SPEED QFN |
4,286 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NCP81151MNTAGIC GATE DRVR HALF-BRIDGE 8DFN |
2,849 | 1.00 |
|
- |
- | 8-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 0.6V, 3.3V | - | Non-Inverting | 40 V | 16ns, 11ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN (2x2) |
|

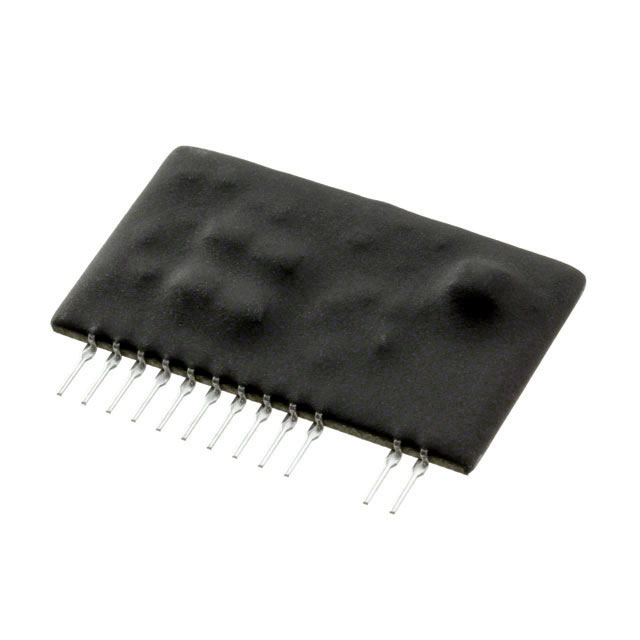

VLA542-01RIC GATE DRVR LOW-SIDE MODULE |
4,389 | 0.00 |
|
Datasheet |
- | 14-SIP Module, 12 Leads | Bulk | Obsolete | Not Verified | Low-Side | Single | 1 | IGBT | 14V ~ 17V | - | 5A, 5A | Non-Inverting | - | 400ns, 300ns | -20°C ~ 70°C (TA) | - | - | Through Hole | Module |
|
IR7106STRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
4,396 | 1.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 700 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IR7304STRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
3,815 | 1.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.3V | 60mA, 130mA | Non-Inverting | 700 V | 200ns, 100ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IR7106SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
4,887 | 1.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | - | 200mA, 350mA | Non-Inverting | 700 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IR7304SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
3,989 | 1.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.3V | 60mA, 130mA | Non-Inverting | 700 V | 200ns, 100ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
HR2000GSIC GATE DRVR HALF-BRIDGE 16SOIC |
4,288 | 0.00 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 12V | - | - | - | 600 V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
HR2000GS-ZIC GATE DRVR HALF-BRIDGE 16SOIC |
4,470 | 1.48 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 10V ~ 12V | - | - | - | 600 V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
MP18021HN-A-LFIC GATE DRVR HALF-BRIDGE 8SOIC |
4,489 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 18V | 1V, 2.4V | 2.5A, 2.5A | Non-Inverting | 100 V | 12ns, 9ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOICE |
|
|
MP18021HN-LFIC GATE DRVR HALF-BRIDGE 8SOIC |
4,033 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 16V | 1V, 2.4V | 2.5A, 2.5A | Non-Inverting | 100 V | 12ns, 9ns | -40°C ~ 140°C (TJ) | - | - | Surface Mount | 8-SOICE |
