Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP18024HN-LFIC GATE DRVR HALF-BRIDGE 8SOIC |
1,699 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 16V | 1V, 2.4V | - | Non-Inverting | 100 V | 15ns, 9ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOICE |
|
MPQ18021HS-A-LFIC GATE DRVR HALF-BRIDGE 8SOIC |
3,395 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 18V | 1V, 2.4V | 2.5A, 2.5A | Non-Inverting | 115 V | 12ns, 9ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
MPQ18021HS-A-LF-ZIC GATE DRVR HALF-BRIDGE 8SOIC |
2,879 | 1.27 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 18V | 1V, 2.4V | 2.5A, 2.5A | Non-Inverting | 115 V | 12ns, 9ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
IR7184SPBFIC GATE DRVR HALF-BRIDGE 8SO |
3,212 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A | Non-Inverting | 700 V | 40ns, 20ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IR7184STRPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
2,425 | 0.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.7V | 1.9A, 2.3A | Non-Inverting | 700 V | 40ns, 20ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
MIC4608YMIC GATE DRVR HALF-BRIDGE 14SOIC |
1,486 | 1.73 |
|
- |
- | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 1A, 1A | Non-Inverting | 600 V | 31ns, 31ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
|
MIC4608YM-TRIC GATE DRVR HALF-BRIDGE 14SOIC |
3,159 | 0.00 |
|
- |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 1A, 1A | Non-Inverting | 600 V | 31ns, 31ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
|
MIC4608YM-T5IC GATE DRVR HALF-BRIDGE 14SOIC |
2,336 | 0.00 |
|
- |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 1A, 1A | Non-Inverting | 600 V | 31ns, 31ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
NCP81382MNTXGIC GATE DRVR HI/LOW SIDE 36QFN |
1,205 | 1.00 |
|
Datasheet |
- | 36-TFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | High-Side or Low-Side | Synchronous | 1 | N-Channel MOSFET | 4.5V ~ 5.5V | - | - | Non-Inverting | 35 V | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 36-QFN (6x4) |
|

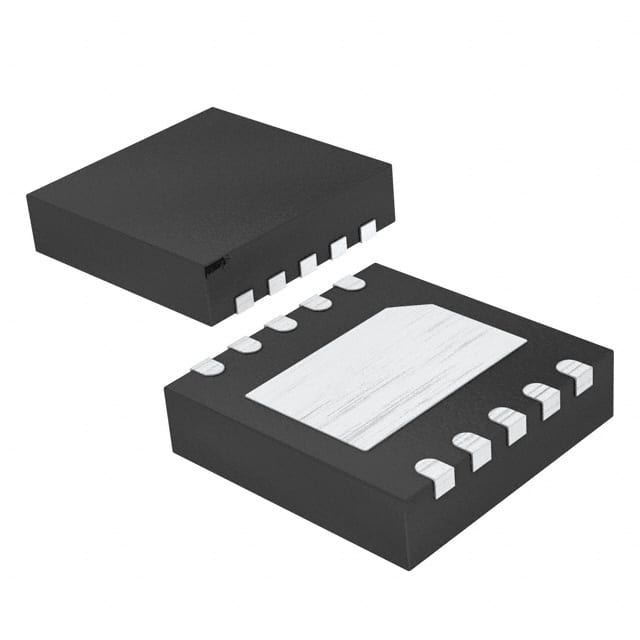

PX3517FTMA1IC GATE DRVR HALF-BRIDGE 10TDSON |
2,015 | 0.00 |
|
Datasheet |
- | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 8V | 0.8V, 2.5V | 2A, 2A | Non-Inverting | 30 V | 10ns, 10ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-TDSON (3x3) |
 Exposed Pad.jpg)
|
2EDN7524RXUMA1IC GATE DRVR LOW-SIDE 8TSSOP |
1,462 | 1.00 |
|
Datasheet |
EiceDRIVER™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 20V | - | 5A, 5A | Non-Inverting | - | 5.3ns, 4.5ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSSOP-8 |
|
IX2120BIC GATE DRVR HALF-BRIDGE 28SOIC |
4,266 | 0.00 |
|
- |
- | 28-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 15V ~ 20V | 6V, 9.5V | 2A, 2A | Non-Inverting | 1200 V | 9.4ns, 9.7ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
IPN10ELSXUMA1IC GATE DRVR HALF-BRIDGE SSOP-14 |
3,945 | 0.63 |
|
Datasheet |
- | 14-LSSOP (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Obsolete | Not Verified | Half-Bridge | Independent | 2 | N-Channel, P-Channel MOSFET | 4V ~ 40V | 0.8V, 3.5V | 400mA, 400mA | Non-Inverting | - | 380ns, 380ns | -40°C ~ 150°C (TJ) | Automotive | - | Surface Mount | PG-SSOP-14 |
|
|
IX4423MTRIC GATE DRVR LOW-SIDE |
1,927 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 3A, 3A | Inverting | - | 18ns, 18ns | -55°C ~ 150°C (TJ) | - | - | - | - |
|
|
IX4424MTRIC GATE DRVR LOW-SIDE |
4,799 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 3A, 3A | Non-Inverting | - | 18ns, 18ns | -55°C ~ 150°C (TJ) | - | - | - | - |
|
|
IX4425MTRIC GATE DRVR LOW-SIDE |
1,213 | 0.00 |
|
- |
- | - | Tape & Reel (TR) | Obsolete | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 30V | 0.8V, 3V | 3A, 3A | Non-Inverting | - | 18ns, 18ns | -55°C ~ 150°C (TJ) | - | - | - | - |
|
|
AUIRS20162STRIC GATE DRVR HIGH-SIDE 8SOIC |
2,672 | 1.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 4.4V ~ 20V | - | 250mA, 250mA | Non-Inverting | 150 V | 200ns, 200ns | -55°C ~ 155°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
IRS2005SPBFIC GATE DRVR HALF-BRIDGE 8SOIC |
4,719 | 1.00 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Non-Inverting | 200 V | 70ns, 30ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
IRS2807DSPBFIC GATE DRVR HI/LOW SIDE 8SOIC |
2,581 | 1.02 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | Not Verified | High-Side or Low-Side | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.2V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | PG-DSO-8-903 |
|
|
IRS21851CIC GATE DRVR HIGH-SIDE 8SOIC |
1,749 | 0.00 |
|
Datasheet |
- | - | Bulk | Obsolete | Not Verified | High-Side | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 8-SOIC |
