Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTC4442EMS8E-1#PBFIC GATE DRVR HALF-BRIDGE 8MSOP |
3,450 | 4.33 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 6V ~ 9.5V | - | 2.4A, 2.4A | Non-Inverting | 42 V | 12ns, 8ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
TC4469COEIC GATE DRVR LOW-SIDE 16SOIC |
958 | 5.33 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A | Inverting, Non-Inverting | - | 15ns, 15ns | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
LTC7060IMSE#WTRPBFIC GATE DRVR HALF-BRIDGE 12MSOP |
942 | 2.39 |
|
Datasheet |
- | 12-TSSOP (0.118", 3.00mm Width) Exposed Pad | Tape & Reel (TR) | Active | - | Half-Bridge | - | - | - | 6V ~ 14V | - | - | - | - | - | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 12-MSOP-EP |
|
NCV7520MWTXGIC GATE DRVR LOW-SIDE 32QFN |
7,903 | 4.49 |
|
Datasheet |
FLEXMOS™ | 32-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 6 | N-Channel MOSFET | 4.75V ~ 5.25V | 0.8V, 2V | - | Non-Inverting | - | 277ns (Max), 277ns (Max) | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 32-QFN (5x5) |
|
LM5113SD/NOPBIC GATE DRVR HALF-BRIDGE 10WSON |
1,483 | 6.36 |
|
Datasheet |
- | 10-WDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 1.76V, 1.89V | 1.2A, 5A | Non-Inverting | 107 V | 7ns, 1.5ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-WSON (4x4) |
|
|
LM5113SDE/NOPBIC GATE DRVR HALF-BRIDGE 10WSON |
1,277 | 6.36 |
|
Datasheet |
- | 10-WDFN Exposed Pad | Tape & Reel (TR) | Not For New Designs | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 4.5V ~ 5.5V | 1.76V, 1.89V | 1.2A, 5A | Non-Inverting | 107 V | 7ns, 1.5ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-WSON (4x4) |
|
|
TC4467COEIC GATE DRVR LOW-SIDE 16SOIC |
233 | 5.51 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A | Inverting | - | 15ns, 15ns | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
TC4469CPDIC GATE DRVR LOW-SIDE 14DIP |
201 | 5.58 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A | Inverting, Non-Inverting | - | 15ns, 15ns | 0°C ~ 150°C (TJ) | - | - | Through Hole | 14-PDIP |
|
|
TC4469EPDIC GATE DRVR LOW-SIDE 14DIP |
164 | 5.58 |
|
Datasheet |
- | 14-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.2A, 1.2A | Inverting, Non-Inverting | - | 15ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | 14-PDIP |
|
LT8418ACBZ-R7IC GATE DRVR HALF-BRIDGE 12WLCSP |
1,131 | 0.00 |
|
Datasheet |
- | 12-UFBGA, WLCSP | Tape & Reel (TR) | Active | - | Half-Bridge | Independent | 2 | N-Channel MOSFET | 3.85V ~ 5.5V | - | 4A, 8A | Non-Inverting | - | 2.5ns, 2.5ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 12-WLCSP (1.67x1.67) |
|
LTC4449IDCB#TRMPBFIC GATE DRVR HALF-BRIDGE 8DFN |
1,470 | 4.75 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 4V ~ 6.5V | 3V, 6.5V | 3.2A, 4.5A | Non-Inverting | 42 V | 8ns, 7ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-DFN (2x3) |
|
HIP2100IBZTIC GATE DRVR HALF-BRIDGE 8SOIC |
4,851 | 4.58 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 4V, 7V | 2A, 2A | Non-Inverting | 114 V | 10ns, 10ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
HIP2100IBZIC GATE DRVR HALF-BRIDGE 8SOIC |
3,722 | 4.58 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 4V, 7V | 2A, 2A | Non-Inverting | 114 V | 10ns, 10ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
HIP2101IBZIC GATE DRVR HALF-BRIDGE 8SOIC |
1,454 | 4.58 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 0.8V, 2.2V | 2A, 2A | Non-Inverting | 114 V | 10ns, 10ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
BD2311NVX-LBE2IC GATE DRVR LOW-SIDE 6UDFN |
3,707 | 0.00 |
|
Datasheet |
- | 6-UDFN Exposed Pad | Tape & Reel (TR) | Active | - | Low-Side | Single | 1 | N-Channel MOSFET | 4.5V ~ 5.5V | 1.8V, 1.7V | 7A, 5A | Inverting | - | 650ps, 700ps | -40°C ~ 125°C | - | - | Surface Mount | SSON06RX2020 |
|
MAX4420CSA+IC GATE DRVR LOW-SIDE 8SOIC |
4,896 | 4.45 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A | Non-Inverting | - | 25ns, 25ns | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|

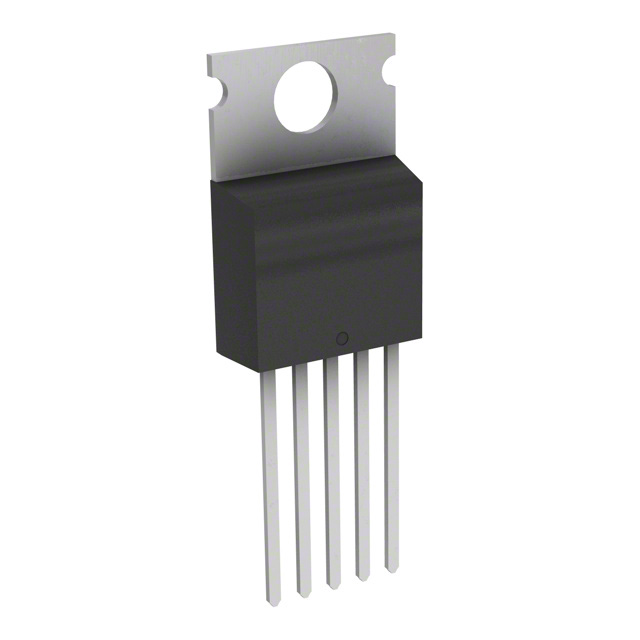

IXDD614CIIC GATE DRVR LOW-SIDE TO220-5 |
2,095 | 6.27 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 14A, 14A | Non-Inverting | - | 25ns, 18ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
IXDN614YIIC GATE DRVR LOW-SIDE TO263-5 |
1,387 | 6.27 |
|
Datasheet |
- | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 14A, 14A | Non-Inverting | - | 25ns, 18ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263-5 |
|
LTC1982ES6#TRMPBFIC GATE DRVR HIGH-SIDE SOT23-6 |
655 | 5.34 |
|
Datasheet |
- | SOT-23-6 | Tape & Reel (TR) | Active | Not Verified | High-Side | Independent | 2 | N-Channel MOSFET | 1.8V ~ 5.5V | 0.6V, 1.4V | - | Inverting | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|

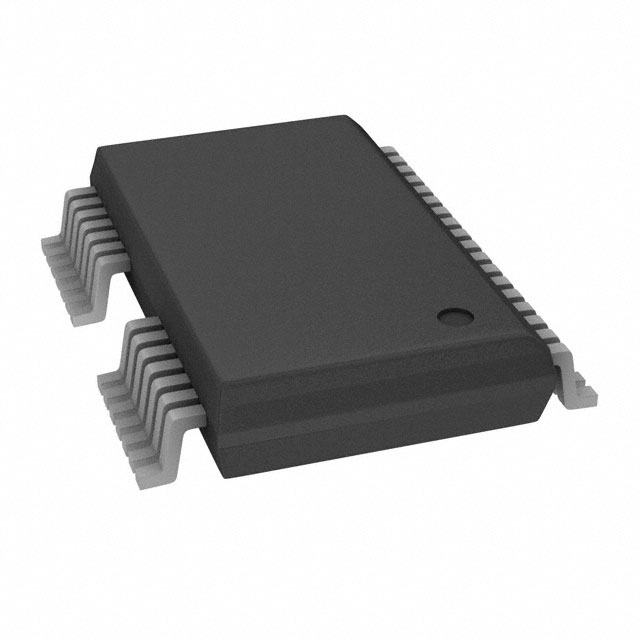

2ED020I12F2XUMA1IC GATE DRVR HALF-BRIDG DSO36-58 |
6,387 | 7.38 |
|
Datasheet |
EiceDRIVER™ | 36-BSSOP (0.295", 7.50mm Width), 32 Leads | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 13V ~ 20V | 1.5V, 3.5V | 2A, 2A | Inverting, Non-Inverting | 1200 V | 30ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-36-58 |
