Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

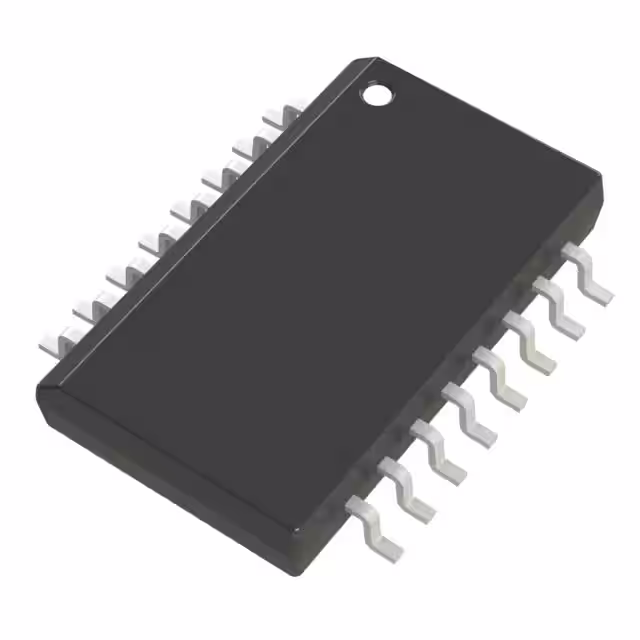

ADUM4221CRIZIC GATE DRVR HALF-BRIDGE 16SOIC |
159 | 8.27 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Half-Bridge | Synchronous | 2 | IGBT | 2.5V ~ 6.5V | 1.5V, 3.5V | 4A, 6A | Non-Inverting | - | 25ns, 30ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
|
ADUM4221-1ARIZIC GATE DRVR HALF-BRIDGE 16SOIC |
1,462 | 8.27 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Half-Bridge | Synchronous | 2 | IGBT | 2.5V ~ 6.5V | 1.5V, 3.5V | 4A, 6A | Inverting, Non-Inverting | - | 25ns, 25ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
LTC7004HMSE#PBFIC GATE DRVR HIGH-SIDE 10MSOP |
926 | 8.35 |
|
Datasheet |
- | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 15V | - | - | Non-Inverting | 60 V | 90ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 10-MSOP-EP |
|
LTC7000IMSE-1#PBFIC GATE DRVR HIGH-SIDE 16MSOP |
1,875 | 8.35 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | 135 V | 90ns, 40ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
MAX4427ESA+TIC GATE DRVR LOW-SIDE 8SOIC |
16,713 | 5.94 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|

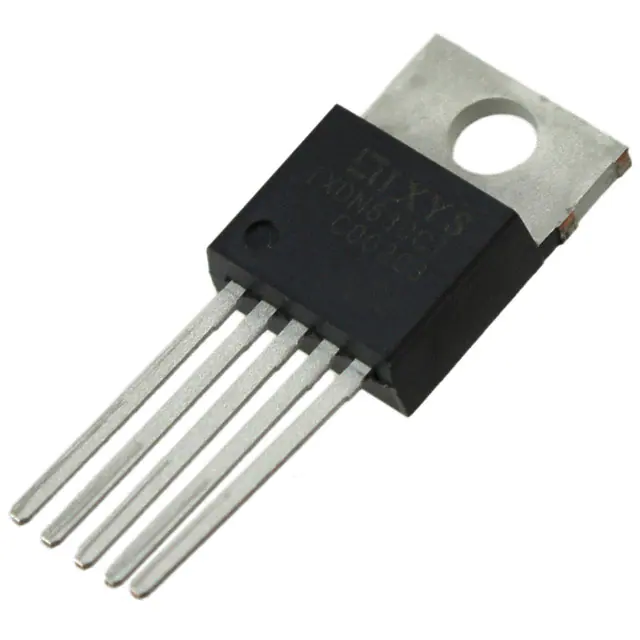

IXDN630CIIC GATE DRVR LOW-SIDE TO220-5 |
1,314 | 9.56 |
|
Datasheet |
- | TO-220-5 | Tube | Active | Not Verified | Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 12.5V ~ 35V | 0.8V, 3.5V | 30A, 30A | Non-Inverting | - | 11ns, 11ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220-5 |
|
LTC4444MPMS8E#PBFIC GATE DRVR HALF-BRIDGE 8MSOP |
991 | 8.73 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 7.2V ~ 13.5V | 1.85V, 3.25V | 2.5A, 3A | Non-Inverting | 114 V | 8ns, 5ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
|
MGD3160AM535EKTIC GATE DRVR HIGH-SIDE 32SOIC |
341 | 0.00 |
|
Datasheet |
- | 32-BSSOP (0.295", 7.50mm Width) | Tray | Active | - | High-Side | Single | 1 | IGBT, SiC MOSFET | 4.5V ~ 40V | - | 15A, 15A | Non-Inverting | - | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 32-SOIC |
|
|
MAX4427ESA+IC GATE DRVR LOW-SIDE 8SOIC |
506 | 5.94 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 20ns, 20ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LTC7000JMSE#PBFIC GATE DRVR HIGH-SIDE 16MSOP |
222 | 9.13 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | - | 90ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
MAX5075AAUA+IC GATE DRVR LOW-SIDE 8UMAX |
1,744 | 9.19 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | Low-Side | Synchronous | 2 | N-Channel MOSFET | 4.5V ~ 15V | - | 3A, 3A | RC Input Circuit | - | 10ns, 10ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-uMAX-EP|8-uSOP-EP |
|
|
LTC7000HMSE-1#PBFIC GATE DRVR HIGH-SIDE 16MSOP |
483 | 9.38 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width), 12 Leads, Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | 135 V | 90ns, 40ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-MSOP-EP |
|
IR2233JPBFIC GATE DRVR HALF-BRIDGE 44PLCC |
294 | 12.24 |
|
Datasheet |
- | 44-LCC (J-Lead), 32 Leads | Tube | Active | Not Verified | Half-Bridge | 3-Phase | 6 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2V | 250mA, 500mA | Inverting | 1200 V | 90ns, 40ns | 125°C (TJ) | - | - | Surface Mount | 44-PLCC, 32 Leads (16.58x16.58) |
|
LTC1157CS8#PBFIC GATE DRVR HI/LOW SIDE 8SOIC |
231 | 8.10 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | High-Side or Low-Side | Independent | 2 | N-Channel MOSFET | 3.3V ~ 5V | - | - | Non-Inverting | - | - | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SO |
|
|
LTC7000JMSE#WPBFIC GATE DRVR HIGH-SIDE 16MSOP |
302 | 9.86 |
|
Datasheet |
- | 16-TFSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 3.5V ~ 135V | 1.8V, 1.7V | - | Non-Inverting | - | 90ns, 40ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 16-MSOP-EP |
|
LT1160IS#PBFIC GATE DRVR HALF-BRIDGE 14SOIC |
3,172 | 10.90 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 10V ~ 15V | 0.8V, 2V | 1.5A, 1.5A | Non-Inverting | 60 V | 130ns, 60ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 14-SO |
|
LT1161CN#PBFIC GATE DRVR HIGH-SIDE 20DIP |
237 | 9.94 |
|
Datasheet |
- | 20-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | High-Side | Independent | 4 | N-Channel MOSFET | 8V ~ 48V | 0.8V, 2V | - | Non-Inverting | - | - | 0°C ~ 125°C (TJ) | - | - | Through Hole | 20-PDIP |
|
MAX626CPA+IC GATE DRVR LOW-SIDE 8DIP |
2,985 | 9.19 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 2A, 2A | Inverting | - | 25ns, 20ns | 0°C ~ 70°C (TA) | - | - | Through Hole | 8-PDIP |
|
LT1158CSW#PBFIC GATE DRVR HALF-BRIDGE 16SOIC |
343 | 11.05 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Half-Bridge | Synchronous | 2 | N-Channel MOSFET | 5V ~ 30V | 0.8V, 2V | 500mA, 500mA | Inverting, Non-Inverting | 56 V | 130ns, 120ns | 0°C ~ 125°C (TJ) | - | - | Surface Mount | 16-SO |
|
|
LTC4440AMPMS8E-5#PBFIC GATE DRVR HIGH-SIDE 8MSOP |
3,018 | 13.58 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad | Tube | Active | Not Verified | High-Side | Single | 1 | N-Channel MOSFET | 4V ~ 15V | 1.2V, 1.6V | 1.1A, 1.1A | Non-Inverting | 80 V | 10ns, 7ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MSOP-EP |
