Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC4420MJAIC GATE DRVR LOW-SIDE 8CERDIP |
121 | 36.37 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Single | 1 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 6A, 6A | Non-Inverting | - | 25ns, 25ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | 8-CERDIP |
|
|
TC427IJAIC GATE DRVR LOW-SIDE 8CERDIP |
142 | 41.05 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Non-Inverting | - | 30ns, 30ns | -25°C ~ 85°C (TA) | - | - | Through Hole | 8-CERDIP |
|
|
TC426IJAIC GATE DRVR LOW-SIDE 8CERDIP |
112 | 41.05 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 30ns, 30ns | -25°C ~ 85°C (TA) | - | - | Through Hole | 8-CERDIP |
|
2SC0108T2G0-17IC GATE DRVR HI/LOW SIDE MODULE |
180 | 56.37 |
|
Datasheet |
SCALE™-2+ | Module | Tray | Active | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 8A | - | 1700 V | 17ns, 15ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
2SP0115T2B0-12IC GATE DRVR HALF-BRIDGE MODULE |
3,921 | 105.00 |
|
- |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 1200 V | 5ns, 10ns | -20°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
2SP0115T2B0-06IC GATE DRVR HALF-BRIDGE MODULE |
2,277 | 105.00 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 8A, 15A | - | 600 V | 5ns, 10ns | -20°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

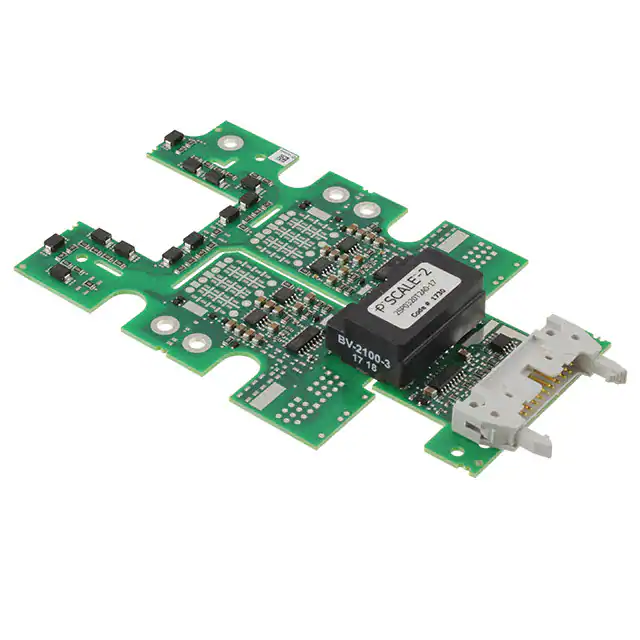

2SP0320T2C0-17IC GATE DRVR HALF-BRIDGE MODULE |
4,683 | 193.16 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 20A, 20A | - | 1700 V | 7ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
|
2SP0320T2C0-12IC GATE DRVR HALF-BRIDGE MODULE |
4,841 | 193.16 |
|
Datasheet |
SCALE™-2 | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 20A, 20A | - | 1200 V | 7ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

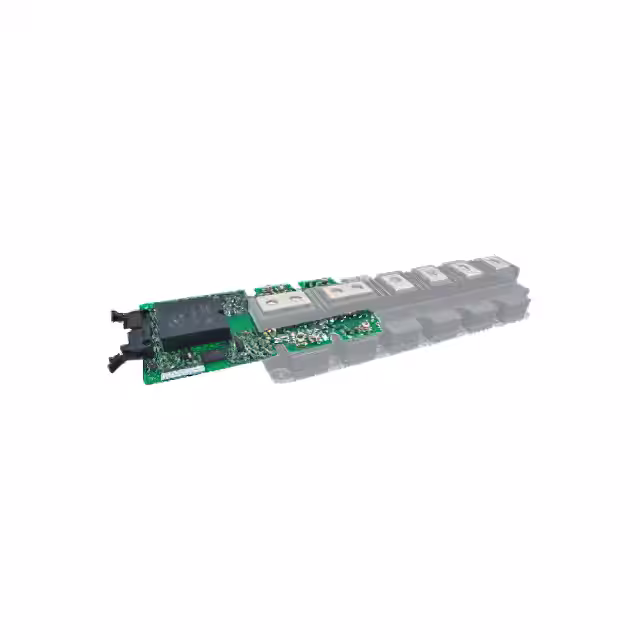

2QG010DDC11NIC GATE DRVR HALF-BRIDGE MODULE |
2,661 | 174.60 |
|
Datasheet |
- | Module | Tray | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT | 13V ~ 28V | 0.5V, 3.3V | 43A, 43A | Non-Inverting | - | 500ns, 500ns | -40°C ~ 85°C | - | - | Chassis Mount | Module |
|

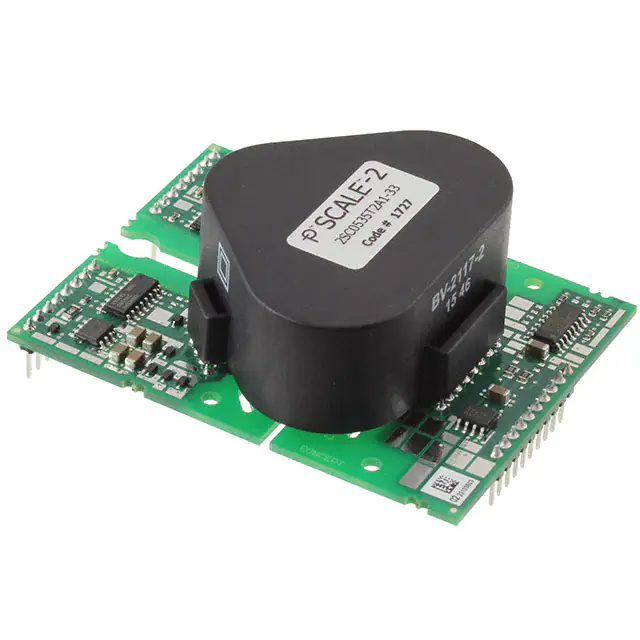

2SC0535T2A1-33IC GATE DRVR HI/LOW SIDE MODULE |
2,110 | 202.93 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Last Time Buy | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 3300 V | 20ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|

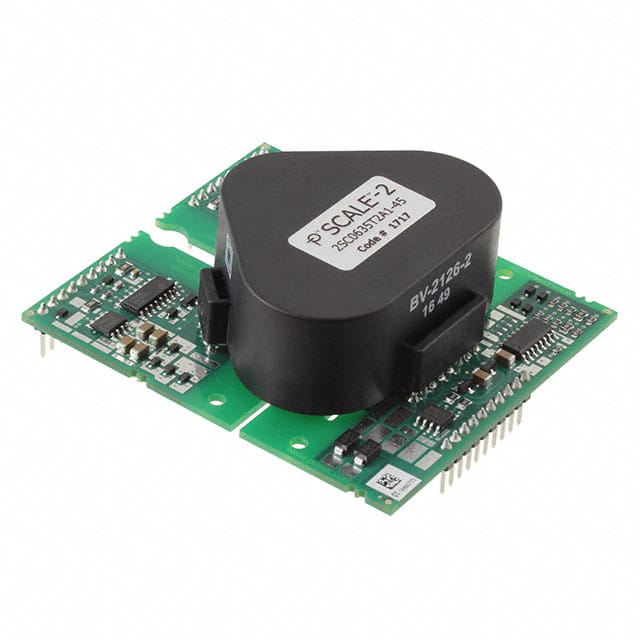

2SC0635T2A1-45IC GATE DRVR HI/LOW SIDE MODULE |
555 | 233.36 |
|
Datasheet |
SCALE™-2 | Module | Bulk | Last Time Buy | Not Verified | High-Side or Low-Side | Independent | 2 | IGBT | 14.5V ~ 15.5V | - | 35A, 35A | - | 4500 V | 20ns, 25ns | -40°C ~ 85°C (TA) | - | - | Surface Mount | Module |
|
2EDN7533FXTMA1IC GATE DRVR LOW-SIDE 8SOIC |
2,490 | 1.45 |
|
Datasheet |
EiceDRIVER™ | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.4V, 1.9V | 5A, 5A | Inverting | - | 8.6ns, 6ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-DSO-8 |
|
|
2EDN8533RXTMA1IC GATE DRVR LOW-SIDE 8TSSOP |
5,000 | 1.33 |
|
Datasheet |
EiceDRIVER™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.4V, 1.9V | 5A, 5A | Inverting | - | 8.6ns, 6ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSSOP-8 |
|
|
2EDN7434RXTMA1IC GATE DRVR LOW-SIDE 8TSSOP |
4,990 | 1.33 |
|
Datasheet |
EiceDRIVER™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.4V, 1.9V | 5A, 5A | Non-Inverting | - | 8.6ns, 6ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSSOP-8 |
|
|
2EDN7533RXTMA1IC GATE DRVR LOW-SIDE 8TSSOP |
4,902 | 1.33 |
|
Datasheet |
EiceDRIVER™ | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 20V | 1.4V, 1.9V | 5A, 5A | Inverting | - | 8.6ns, 6ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TSSOP-8 |
|
|
1EDN7146GXTMA1IC GATE DRVR HI/LOW SIDE 10VFDFN |
7,998 | 1.59 |
|
Datasheet |
EiceDRIVER™ | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Independent | 1 | N-Channel MOSFET | 4.2V ~ 11V | - | 500mA, 500mA | Non-Inverting | - | 11ns, 11ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-VSON-10-4 |
|

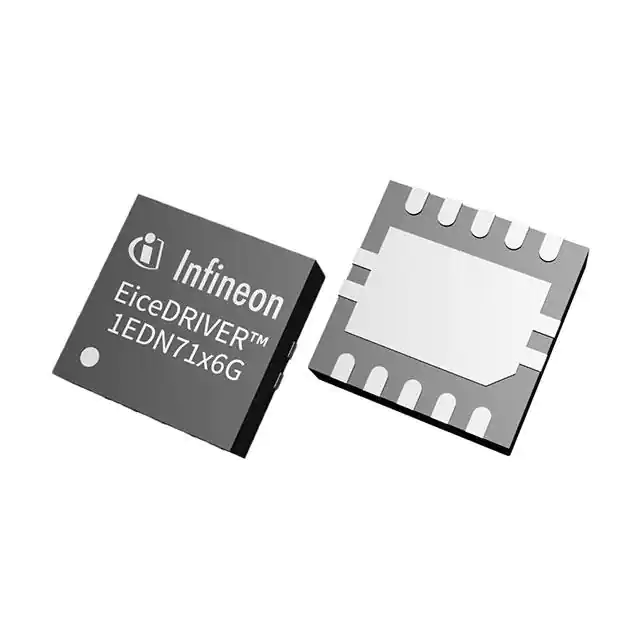

1EDN7136GXTMA1IC GATE DRVR HI/LOW SIDE 10VFDFN |
6,950 | 1.59 |
|
Datasheet |
EiceDRIVER™ | 10-VFDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Independent | 1 | N-Channel MOSFET | 4.2V ~ 11V | - | 1A, 1A | Non-Inverting | - | 5.5ns, 5.5ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | PG-VSON-10-4 |
|
|
1EDN7146UXTSA1IC GATE DRVR HI/LOW SIDE TSNP-7 |
4,397 | 1.08 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IR21084STRPBFIC GATE DRVR HALF-BRIDGE 14SOIC |
2,500 | 2.08 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.9V | 200mA, 350mA | Non-Inverting | 600 V | 150ns, 50ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 14-SOIC |
|
IRS2007MTRPBFXUMA1IC GATE DRVR HALF-BRIDGE 14MLPQ |
2,900 | 1.83 |
|
Datasheet |
- | 14-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Non-Inverting | 200 V | 70ns, 30ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-MLPQ (4x4) |
