Gate Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Programmable | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Voltage - Supply | Logic Voltage - VIL, VIH | Current - Peak Output (Source, Sink) | Input Type | High Side Voltage - Max (Bootstrap) | Rise / Fall Time (Typ) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCV5703CDR2GIC GATE DRVR HI/LOW SIDE 8SOIC |
4,990 | 1.07 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Synchronous | 1 | IGBT | 20V | 0.75V, 4.3V | 7A, 7.2A | Non-Inverting | - | 9.2ns, 7.9ns | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
NCV5703BDR2GIC GATE DRVR HI/LOW SIDE 8SOIC |
2,475 | 1.07 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 20V | 0.75V, 4.3V | 7.8A, 6.8A | Non-Inverting | - | 9.2ns, 7.9ns | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
UCC27210DPRTIC GATE DRVR HALF-BRIDGE 10WSON |
143 | 3.44 |
|
Datasheet |
- | 10-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 8V ~ 17V | 2.4V, 5.8V | 4A, 4A | Non-Inverting | 120 V | 7.2ns, 5.5ns | -40°C ~ 140°C (TJ) | - | - | Surface Mount | 10-WSON (4x4) |
|
|
NCV57080CDR2GIC GATE DRVR HI/LOW SIDE 8SOIC |
4,990 | 2.81 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT | 20V | 6V, 14V | 6.5A, 6.5A | Inverting, Non-Inverting | - | 13ns, 13ns | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
TPS2811DRIC GATE DRVR LOW-SIDE 8SOIC |
2,996 | 3.09 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Synchronous | 2 | N-Channel MOSFET | 4V ~ 14V | 1V, 4V | 2A, 2A | Inverting | - | 14ns, 15ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
LF2110BTRIC GATE DRVR HALF-BRIDGE 16SOIC |
12,233 | 2.93 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 5V, 9.5V | 2.5A, 2.5A | Non-Inverting | 500 V | 15ns, 13ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
AUIRS21271STRIC GATE DRVR HIGH-SIDE 8SOIC |
2,471 | 3.17 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | Not Verified | High-Side | Single | 1 | IGBT, N-Channel MOSFET | 9V ~ 20V | 0.8V, 2.5V | 290mA, 600mA | Non-Inverting | 600 V | 80ns, 40ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
LM5101CSD/NOPBIC GATE DRVR HALF-BRIDGE 10WSON |
965 | 3.71 |
|
Datasheet |
- | 10-WDFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 2 | N-Channel MOSFET | 9V ~ 14V | 2.3V, - | 1A, 1A | Non-Inverting | 118 V | 990ns, 715ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 10-WSON (4x4) |
|
1EBN1001AEXUMA1IC GATE DRVR HI/LOW SIDE 14SOIC |
4,540 | 3.78 |
|
Datasheet |
EiceDRIVER™ | 14-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | High-Side or Low-Side | Single | 1 | IGBT, N-Channel, P-Channel MOSFET | 13V ~ 18V | 1.5V, 3.5V | - | - | 1200 V | 50ns, 90ns | -40°C ~ 150°C (TJ) | Automotive | AEC-Q100 | Surface Mount | PG-DSO-14-43 |
|
TC4423COE713IC GATE DRVR LOW-SIDE 16SOIC |
974 | 3.42 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 3A, 3A | Inverting | - | 23ns, 25ns | 0°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|
IXDI604SITRIC GATE DRVR LOW-SIDE 8SOIC |
1,938 | 3.63 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 35V | 0.8V, 3V | 4A, 4A | Inverting | - | 9ns, 8ns | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC-EP |
|
TLE92108231QXXUMA1IC GATE DRVR HALF-BRIDGE 48VFQFN |
9,940 | 4.86 |
|
Datasheet |
MOTIX™ | 48-VFQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Synchronous | 2 | IGBT, N-Channel MOSFET | 6V ~ 28V | - | 100mA, 100mA | Non-Inverting | 950 V | - | - | - | - | Surface Mount | PG-VQFN-48-31 |
|
|
TC4425EOEIC GATE DRVR LOW-SIDE 16SOIC |
221 | 3.56 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 3A, 3A | Inverting, Non-Inverting | - | 23ns, 25ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SOIC |
|

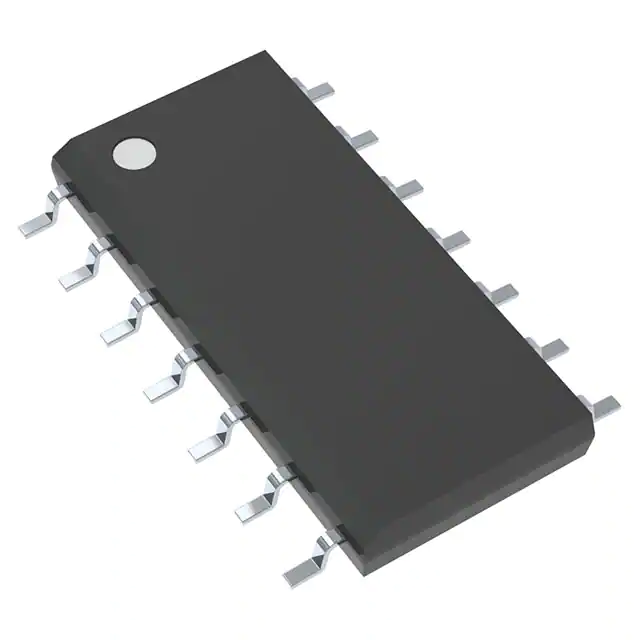

FAD7191M1XIC GATE DRVR HI/LOW SIDE 14SOIC |
2,390 | 2.79 |
|
Datasheet |
- | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Not Verified | High-Side and Low-Side | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 22V | 1.2V, 2.5V | 4.5A, 4.5A | Non-Inverting | 600 V | 25ns, 25ns | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 14-SOP |
|
ADP3654ARDZ-R7IC GATE DRVR LOW-SIDE 8SOIC |
1,008 | 2.85 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2V | 4A, 4A | Non-Inverting | - | 10ns, 10ns | -40°C ~ 125°C (TJ) | - | - | Surface Mount | 8-SOIC-EP |
|
MD1813K6-GIC GATE DRVR HALF-BRIDGE 16QFN |
1,957 | 3.70 |
|
Datasheet |
- | 16-VQFN Exposed Pad | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | Independent | 4 | N-Channel, P-Channel MOSFET | 4.5V ~ 13V | 0.3V, 1.7V | 2A, 2A | Inverting, Non-Inverting | - | 6ns, 6ns | -20°C ~ 125°C (TJ) | - | - | Surface Mount | 16-QFN (4x4) |
|
TC4404COAIC GATE DRVR LOW-SIDE 8SOIC |
285 | 3.70 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Low-Side | Independent | 2 | IGBT, N-Channel, P-Channel MOSFET | 4.5V ~ 18V | 0.8V, 2.4V | 1.5A, 1.5A | Inverting | - | 40ns, 40ns (Max) | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-SOIC |
|

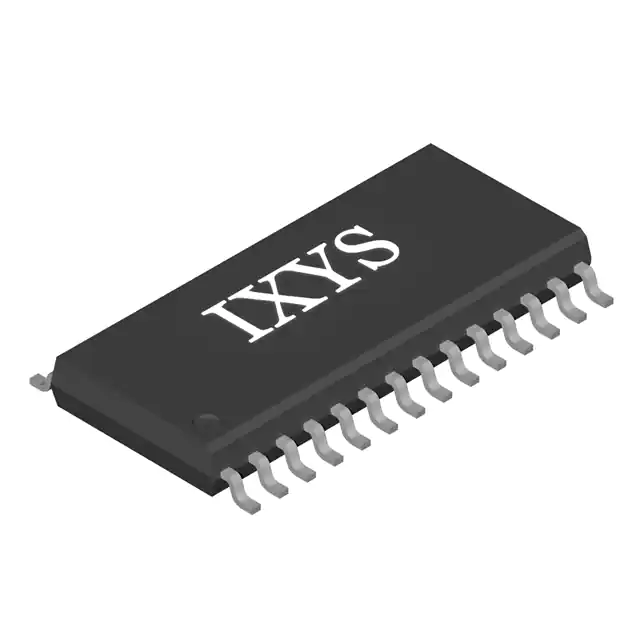

LF2136BTRIC GATE DRVR HALF-BRIDGE 28SOIC |
2,902 | 3.69 |
|
Datasheet |
- | 28-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Not Verified | Half-Bridge | 3-Phase | 3 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.4V | 200mA, 350mA | Non-Inverting | 600 V | 90ns, 35ns | 150°C (TJ) | - | - | Surface Mount | 28-SOIC |
|
MAX17602ASA+IC GATE DRVR LOW-SIDE 8SOIC |
534 | 2.30 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Not Verified | Low-Side | Independent | 2 | N-Channel MOSFET | 4V ~ 14V | 0.8V, 2.1V | 4A, 4A | Inverting, Non-Inverting | - | 40ns, 25ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
|
|
AUIRS2181STRIC GATE DRVR HALF-BRIDGE 8SOIC |
2,232 | 3.25 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Not For New Designs | Not Verified | Half-Bridge | Independent | 2 | IGBT, N-Channel MOSFET | 10V ~ 20V | 0.8V, 2.5V | 1.9A, 2.3A | Inverting | 600 V | 15ns, 15ns | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-SOIC |
