Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AAT4610BIJS-T1IC PWR SWTCH P-CHAN 1:1 SC70JW-8 |
1,860 | 0.00 |
|
Datasheet |
8-TFSOJ (0.069", 1.75mm Width) | ASPM™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.4V ~ 5.5V | Not Required | 2A | 145mOhm | Non-Inverting | - | Current Limiting (Adjustable), Over Temperature, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SC70JW |
|
|
AAT4280AIJS-2-T1IC PWR SWTCH P-CHAN 1:1 SC70JW-8 |
4,437 | 0.00 |
|
Datasheet |
8-TFSOJ (0.069", 1.75mm Width) | ASPM™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.5V ~ 5.5V | Not Required | 2.3A | 80mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SC70JW |
|
AAT4280IGU-1-T1IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
3,605 | 0.00 |
|
Datasheet |
SOT-23-6 | ASPM™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.81V ~ 5.5V | Not Required | 2.3A | 80mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
IPS031STRRIC PWR SWITCH N-CHAN 1:1 D2PAK |
3,715 | 0.00 |
|
Datasheet |
TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | Low Side | N-Channel | On/Off | 35V (Max) | Not Required | 2.8A | 45mOhm | Non-Inverting | - | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK |
|
AOZ1320DI-03IC PWR SWITCH P-CHAN 1:1 8DFN |
2,759 | 0.00 |
|
Datasheet |
8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 2.3A | 75mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (2x2) |
|

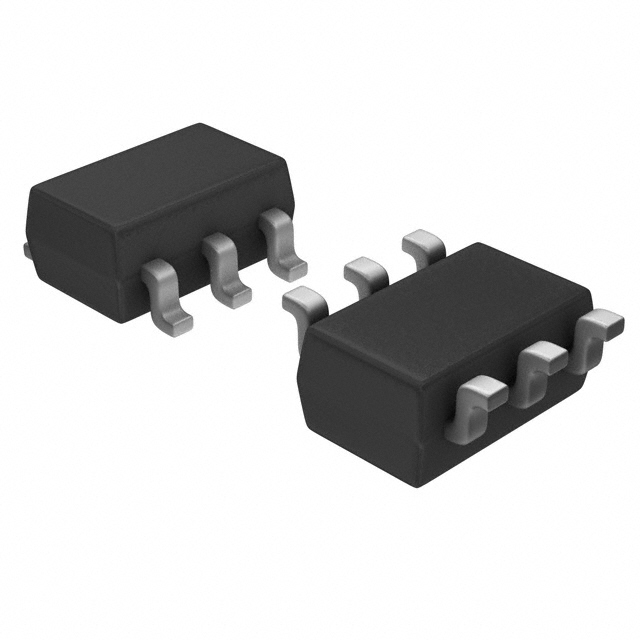

AOZ1320CI-02IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
1,649 | 0.00 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 1.6A | 75mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
AOZ1320CI-04IC PWR SWITCH P-CHAN 1:1 SOT23-6 |
2,972 | 0.00 |
|
Datasheet |
SOT-23-6 | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 1.6A | 75mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23-6 |
|
|
AOZ1320DI-01IC PWR SWITCH P-CHAN 1:1 8DFN |
4,911 | 0.00 |
|
Datasheet |
8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 2.3A | 75mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (2x2) |
|
|
AOZ1320DI-02IC PWR SWITCH P-CHAN 1:1 8DFN |
2,641 | 0.00 |
|
Datasheet |
8-WFDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.8V ~ 5.5V | Not Required | 2.3A | 75mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 8-DFN-EP (2x2) |
__4.jpg)
|

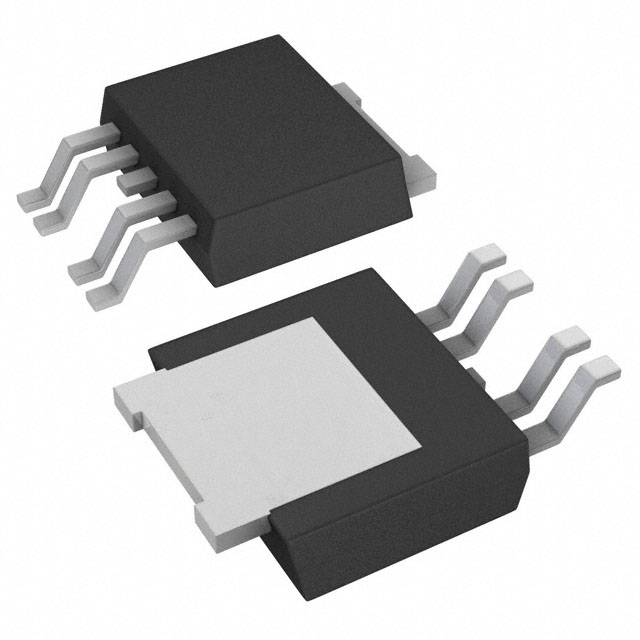

UPD166009T1F-E1-AYIC PWR DRIVER N-CHAN 1:1 TO252 |
1,472 | 0.00 |
|
Datasheet |
TO-252-5, DPAK (4 Leads + Tab), TO-252AD | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 18V | Not Required | 30A | 8mOhm | Non-Inverting | Auto Restart | Current Limiting (Fixed), Over Temperature | - | - | - | Surface Mount | TO-252 (MP-3ZK) |
|
MC10XS3425EKIC PWR SWITCH N-CHAN 1:1 32HSOP |
2,439 | 0.00 |
|
- |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | 6A | 10mOhm, 25mOhm | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-HSOP |
|
|
MC10XS3425EKR2IC PWR SWITCH N-CHAN 1:1 32HSOP |
2,778 | 0.00 |
|
- |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | 6A | 10mOhm, 25mOhm | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-HSOP |
|

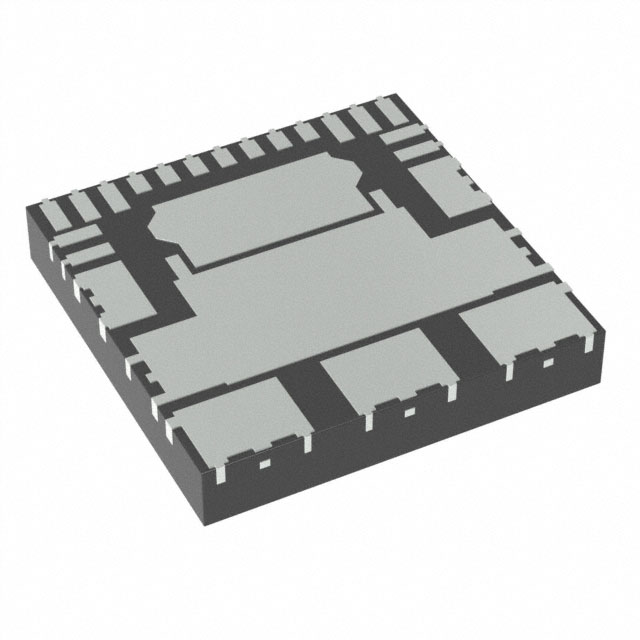

MC10XS3535DHFKIC PWR SWITCH N-CHAN 1:6 24PQFN |
1,576 | 0.00 |
|
- |
24-PowerQFN | - | Tray | Obsolete | General Purpose | 6 | 1:6 | High Side | N-Channel | SPI | 7V ~ 20V | 3V ~ 5.5V | - | 10mOhm (Max), 35mOhm (Max) | - | Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-PQFN (12x12) |
|
|
MC10XS3535DHFKR2IC PWR SWITCH N-CHAN 1:6 24PQFN |
2,543 | 0.00 |
|
- |
24-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 6 | 1:6 | High Side | N-Channel | SPI | 7V ~ 20V | 3V ~ 5.5V | - | 10mOhm (Max), 35mOhm (Max) | - | Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-PQFN (12x12) |
|
MC10XSD200FKIC PWR SWITCH N-CHAN 1:1 23PQFN |
2,989 | 1.00 |
|
Datasheet |
23-PowerQFN | - | Tray | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC17XS6500EKIC PWR SWITCH N-CHAN 1:1 32HSOP |
2,318 | 0.00 |
|
- |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | General Purpose | 6 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | - | 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-HSOP |
|
|
MC17XS6500EKR2IC PWR SWITCH N-CHAN 1:1 32HSOP |
1,621 | 0.00 |
|
- |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 6 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | - | 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 32-HSOP |
|
MC33981ABHFKIC PWR SWITCH N-CHAN 1:1 16QFN |
4,155 | 0.00 |
|
Datasheet |
16-PowerQFN | - | Tray | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | PWM | 6V ~ 27V | - | 40A | 4mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-HQFN (12x12) |
|
|
MC34981ABHFKR2IC PWR SWITCH N-CHAN 1:1 16QFN |
2,909 | 0.00 |
|
Datasheet |
16-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | PWM | 6V ~ 27V | - | 40A | 4mOhm (Max) | - | Slew Rate Controlled | Current Limiting (Fixed), Over Temperature | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 16-PQFN (12x12) |
|
|
MC35XS3500DHFKR2IC PWR SWITCH N-CHAN 1:6 24PQFN |
1,080 | 0.00 |
|
Datasheet |
24-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 6 | 1:6 | High Side | N-Channel | SPI | 7V ~ 20V | 3V ~ 5.5V | - | 35mOhm (Max) | - | Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
