Power Distribution Switches, Load Drivers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Switch Type | Number of Outputs | Ratio - Input:Output | Output Configuration | Output Type | Interface | Voltage - Load | Voltage - Supply (Vcc/Vdd) | Current - Output (Max) | Rds On (Typ) | Input Type | Features | Fault Protection | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MC06XS4200FKIC PWR SWITCH N-CHAN 1:1 23PQFN |
3,676 | 0.00 |
|
Datasheet |
23-PowerQFN | - | Tray | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 9A | 6mOhm (Max) | - | Internal PWM, Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC06XS4200FKR2IC PWR SWITCH N-CHAN 1:1 23PQFN |
2,137 | 0.00 |
|
Datasheet |
23-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 9A | 6mOhm (Max) | - | Internal PWM, Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | - | - | Surface Mount | 23-PQFN (12x12) |
|
MC06XSD200FKIC PWR SWITCH N-CHAN 1:2 23PQFN |
2,661 | 0.00 |
|
- |
23-PowerQFN | - | Tray | Obsolete | General Purpose | 2 | 1:2 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 9A | 6mOhm | - | Internal PWM, Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC06XSD200FKR2IC PWR SWITCH N-CHAN 1:2 23PQFN |
1,894 | 0.00 |
|
- |
23-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:2 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 9A | 6mOhm | - | Internal PWM, Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 23-PQFN (12x12) |
|
MC07XS3200EKIC PWR SWITCH N-CHAN 1:2 32HSOP |
4,488 | 0.00 |
|
Datasheet |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | General Purpose | 2 | 1:2 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | 26A | 7mOhm | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-HSOP |
|
|
MC07XS3200EKR2IC PWR SWITCH N-CHAN 1:2 32HSOP |
3,758 | 0.00 |
|
Datasheet |
32-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:2 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | 26A | 7mOhm | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 32-HSOP |
|
MC07XS6517EKIC PWR SWITCH N-CHAN 1:1 54HSOP |
4,328 | 0.00 |
|
Datasheet |
54-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tube | Obsolete | General Purpose | 6 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A, 11A | 7mOhm, 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 54-HSOP |
|
|
MC07XS6517EKR2IC PWR SWITCH N-CHAN 1:1 54HSOP |
1,365 | 0.00 |
|
Datasheet |
54-SSOP (0.295", 7.50mm Width) Exposed Pad | - | Tape & Reel (TR) | Obsolete | General Purpose | 6 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A, 11A | 7mOhm, 17mOhm | - | Internal PWM | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | - | - | Surface Mount | 54-HSOP |
|
AAT4614IJS-2-T1IC PWR SWTCH P-CHAN 1:1 SC70JW-8 |
4,841 | 0.00 |
|
Datasheet |
8-TFSOJ (0.069", 1.75mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 2.4V ~ 5.5V | Not Required | 2A | 160mOhm | Non-Inverting | Status Flag | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SC70JW |
|
|
AAT4280AIJS-3-T1IC PWR SWTCH P-CHAN 1:1 SC70JW-8 |
3,111 | 0.00 |
|
Datasheet |
8-TFSOJ (0.069", 1.75mm Width) | ASPM™ | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.5V ~ 5.5V | Not Required | 2.3A | 80mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SC70JW |
|
|
AAT4285IJS-3-T1IC PWR SWTCH P-CHAN 1:1 SC70JW-8 |
4,031 | 0.00 |
|
Datasheet |
8-TFSOJ (0.069", 1.75mm Width) | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 3V ~ 13.2V | Not Required | 1.7A | 240mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SC70JW |
|
AP2181DM8G-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
1,823 | 0.70 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Obsolete | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 95mOhm | Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
AP2191DM8G-13IC PWR SWITCH P-CHAN 1:1 8MSOP |
4,022 | 0.29 |
|
Datasheet |
8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | - | Tape & Reel (TR) | Active | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1.5A | 95mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|

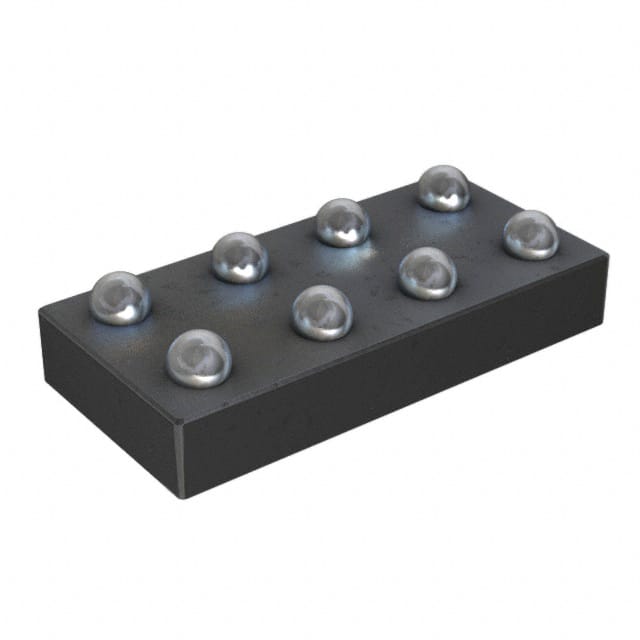

PI3PD22920GBEXIC PWR SWITCH N-CHAN 1:1 8CSP |
1,640 | 0.00 |
|
Datasheet |
8-XFBGA, CSPBGA | - | Tape & Reel (TR) | Obsolete | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 0.75V ~ 3.6V | Not Required | 4A | 2mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-CSP (0.9x1.9) |
|
VND5T035ASTR-EIC DVR SWITCH HI SIDE 16SOIC |
3,137 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | 8V ~ 36V | - | - | 35mOhm (Max) | - | - | - | - | - | - | Surface Mount | 16-SO |
|
|
VND5T100ATR-EIC DVR SWITCH HI SIDE 16SOIC N |
1,765 | 0.00 |
|
Datasheet |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | 8V ~ 36V | - | - | 100mOhm (Max) | - | - | - | - | - | - | Surface Mount | 16-SO |
|
|
MC10XS3412JHFKR2IC PWR SWITCH N-CHAN 1:1 24PQFN |
2,416 | 0.00 |
|
- |
24-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | - | 10mOhm, 12mOhm | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
|
MC16XSD200FKR2IC PWR SWITCH N-CHAN 1:1 23PQFN |
1,786 | 0.00 |
|
- |
23-PowerQFN | - | Tape & Reel (TR) | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 3A | 16mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 23-PQFN (12x12) |
|
|
MC10XS3412JHFKIC PWR SWITCH N-CHAN 1:1 24PQFN |
4,680 | 5.46 |
|
- |
24-PowerQFN | - | Tray | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 6V ~ 20V | 3V ~ 5.5V | - | 10mOhm, 12mOhm | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 24-PQFN (12x12) |
|
|
MC16XSD200FKIC PWR SWITCH N-CHAN 1:1 23PQFN |
1,043 | 0.00 |
|
- |
23-PowerQFN | - | Tray | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 3A | 16mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | - | - | Surface Mount | 23-PQFN (12x12) |
