Power Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
_iNRCORE_Product-Image.jpg)
|
R8247NLPWR XFMR PLANAR 250W SMD |
4,702 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Dual | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC | - |
|
CTX01-15193PWR XFMR CONT FLY 25UH 3.63A |
3,516 | 0.00 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FS28-040PWR XFMR LAMINATED 1.1VA TH |
2,475 | 9.80 |
|
Datasheet |
Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
FS36-030PWR XFMR LAMINATED 1.1VA TH |
4,829 | 9.80 |
|
Datasheet |
Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 60mA, Series 30mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
FS120-01PWR XFMR LAMINATED 1.1VA TH |
3,719 | 9.80 |
|
Datasheet |
Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 20mA, Series 10mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.2 lb (90.72 g) |
|
|
FS48-023PWR XFMR LAMINATED 1.1VA TH |
3,110 | 9.80 |
|
Datasheet |
Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 46mA, Series 23mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
FS56-020PWR XFMR LAMINATED 1.1VA TH |
3,392 | 9.90 |
|
Datasheet |
Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 40mA, Series 20mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|

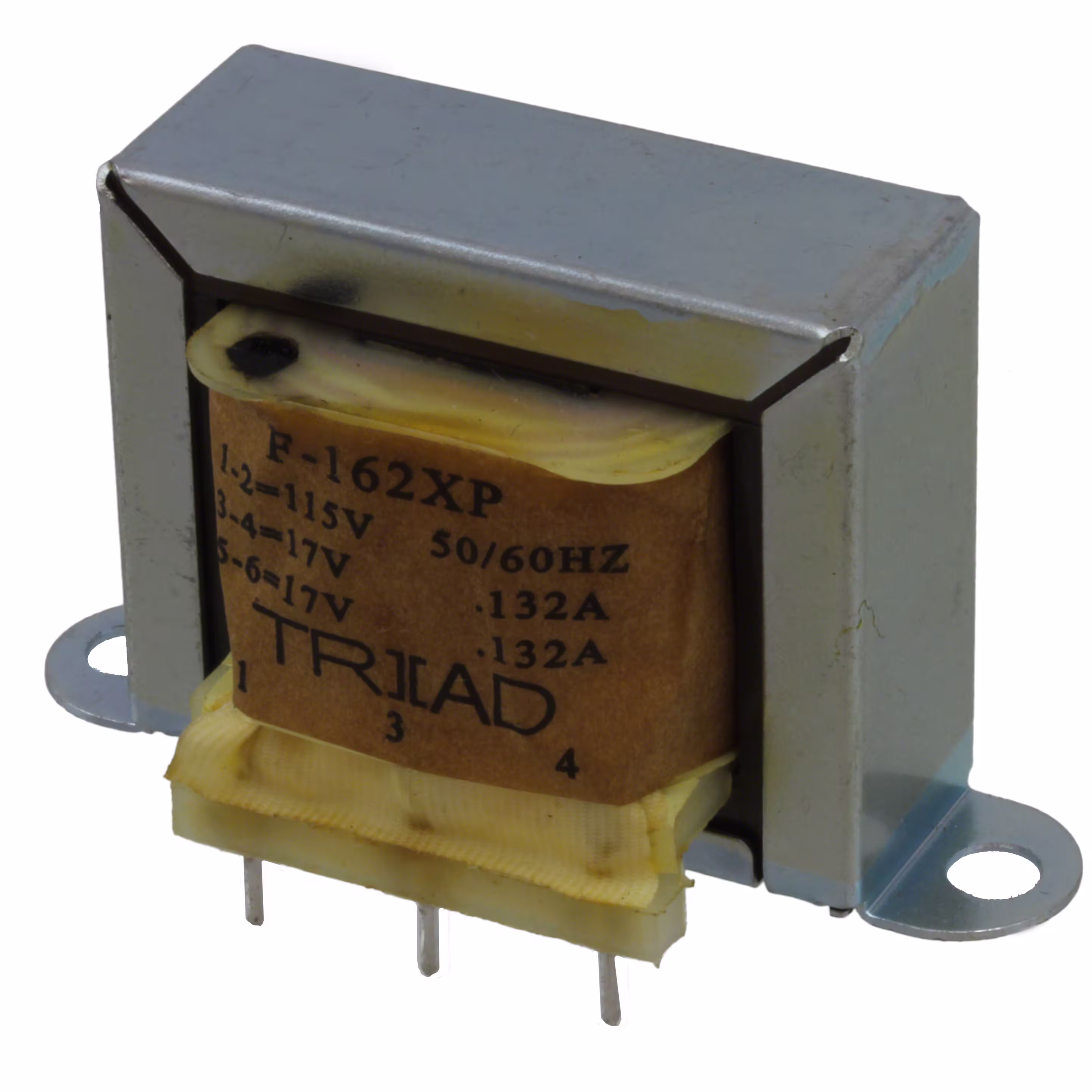

F-162XPPWR XFMR LAMINATED 4.5VA CHAS MT |
2,507 | 10.59 |
|
Datasheet |
Single Primary | Box | Active | Laminated Core | 115V | Parallel 17V, Series 34V | Parallel 264mA, Series 132mA | Single | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms | 0.469 lb (212.73 g) |
|
|
R8249NLPWR XFMR PLANAR 250W SMD |
2,629 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Dual, Multiple Taps | Yes | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC | - |
|
|
R8240NLPWR XFMR PLANAR 250W SMD |
1,970 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Dual | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC | - |
|
|
R8230NLPWR XFMR PLANAR 250W SMD |
4,963 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC | - |
|
|
R8231NLPWR XFMR PLANAR 250W SMD |
1,908 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC | - |
|
|
R8205NLPWR XFMR PLANAR 250W SMD |
1,649 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 10.20mm | 1750VDC | - |
|
|
R8246NLPWR XFMR PLANAR 250W SMD |
1,525 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC | - |
|
|
R8236NLPWR XFMR PLANAR 250W SMD |
1,675 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Dual | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC | - |
|
|
R8233NLPWR XFMR PLANAR 250W SMD |
2,800 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC | - |
|
|
R8207NLPWR XFMR PLANAR 250W SMD |
3,977 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 10.20mm | 1750VDC | - |
|
|
R8248NLPWR XFMR PLANAR 250W SMD |
2,484 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Dual | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC | - |
|
|
R8210NLPWR XFMR PLANAR 250W SMD |
3,488 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Dual | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 10.20mm | 1750VDC | - |
|
|
R8232NLPWR XFMR PLANAR 250W SMD |
4,991 | 8.77 |
|
Datasheet |
- | Tube | Active | Planar | - | - | - | Dual | Single, Multiple Taps | No | 250W | Surface Mount | Solder, Quick Connect | 29.46mm L x 25.40mm W | 9.10mm | 1750VDC | - |
