Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BPS130-HA500P-3SSENSOR 500PSIA 0.122" 4.95V |
4,224 | 45.89 |
|
Datasheet |
BPS130 | 3-SIP Module | Tray | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.122" (3.1mm) Tube | Barbless | - | PC Pin | 1000PSI (6894.76kPa) | -40°C ~ 150°C | - | - | Through Hole | - |
|
|
BPS130-HG500P-3SSENSOR 500PSIG 0.122" 4.95V |
1,666 | 45.89 |
|
Datasheet |
BPS130 | 3-SIP Module | Tray | Active | Board Mount | Gauge | 500PSI (3447.38kPa) | Analog Voltage | 0.45 V ~ 4.95 V | ±0.25% | 4.5V ~ 5.5V | Male - 0.122" (3.1mm) Tube | Barbless | - | PC Pin | 1000PSI (6894.76kPa) | -40°C ~ 150°C | - | - | Through Hole | - |
|
|
26PCBFG2GSENSOR 5PSIC 0.14" .05V |
2,661 | 0.00 |
|
Datasheet |
26PC | 4-SIP Module | Bulk | Obsolete | Board Mount | Compound | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.14" (3.56mm) Tube | Barbed | Temperature Compensated | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
26PCFFG2GSENSOR 100PSIC 0.14" 0.1V |
3,309 | 0.00 |
|
Datasheet |
26PC | 4-DIP Module | Bulk | Obsolete | Board Mount | Compound | ±100PSI (±689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.6% | 2.5V ~ 16V | Male - 0.14" (3.56mm) Tube | Barbed | Temperature Compensated | - | ±200PSI (±1378.95kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
17-015GSENSOR 15PSIG 0.19" 0.1V TO8 |
3,560 | 80.01 |
|
Datasheet |
17 | TO-8 Style, 12 Leads | Tube | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.78mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|

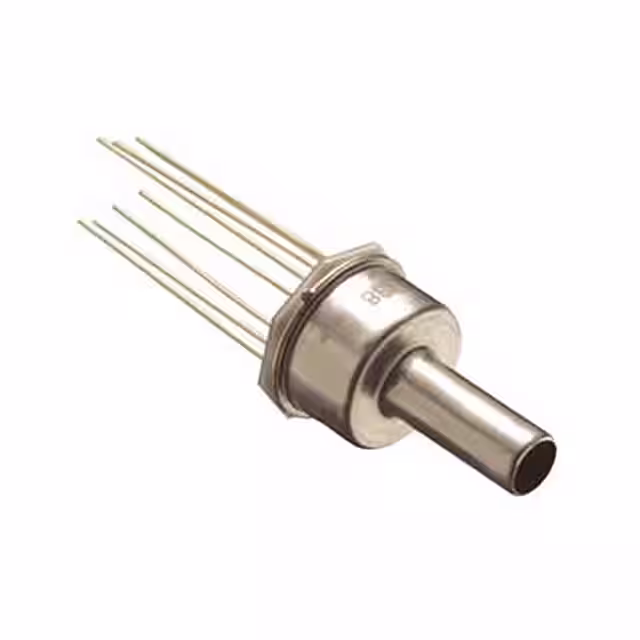

17-050GSENSOR 50PSIG 0.19" 0.1V TO8 |
2,876 | 0.00 |
|
Datasheet |
17 | TO-8 Style, 12 Leads | Bulk | Obsolete | Board Mount | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.78mm) Tube | Barbless | Temperature Compensated | PC Pin | 150PSI (1034.21kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
17-015ASENSOR 15PSIA 0.19" 0.1V TO8 |
2,700 | 70.62 |
|
Datasheet |
17 | TO-8 Style, 12 Leads | Bulk | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19" (4.78mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|

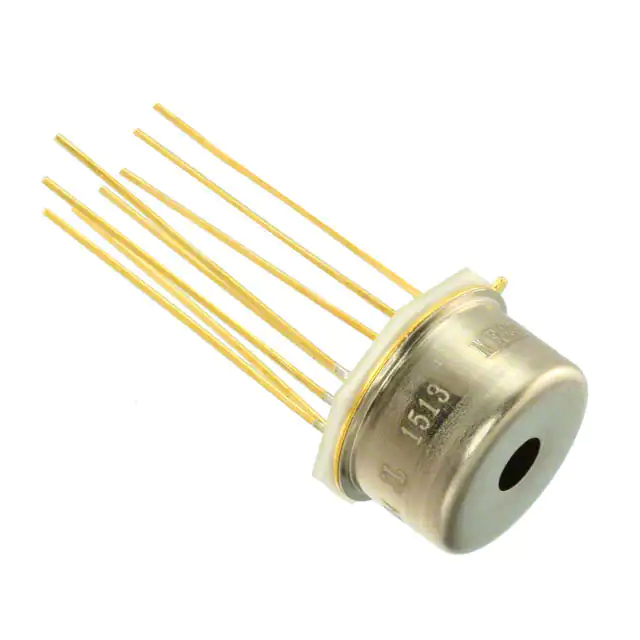

47-030ASENSOR 30PSIA 0.1V |
3,871 | 0.00 |
|
Datasheet |
47 | TO-8 Style, 12 Leads | Tube | Obsolete | Board Mount | Absolute | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C | - | - | Through Hole | - |
|
|
15 PSI-GF-HGRADE-MINISENSOR 15PSIG 0.18" .09V |
2,254 | 35.71 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
15 PSI-D-HGRADE-MINISENSOR 15PSID 0.18" .09V |
2,661 | 35.71 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
1 PSI-GF-HGRADE-MINISENSOR 1PSIG 0.18" .018V |
1,542 | 35.71 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
1 PSI-D-HGRADE-MINISENSOR 1PSID 0.18" .018V |
2,726 | 35.71 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Differential | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 18 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
5 PSI-D-HGRADE-MINISENSOR 5PSID 0.18" .06V |
4,003 | 35.71 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
|
15 PSI-AF-HGRADE-MINISENSOR 15PSIA 0.18" .09V |
2,841 | 35.71 |
|
Datasheet |
ACPC | 4-SIP Module | Tube | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.5% | 16V | Male - 0.18" (4.57mm) Tube | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|
HSCDRRN004MG2A3SENSOR 0.06PSIG 0.08" 12BIT 8DIP |
1,197 | 0.00 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Vented Gauge | 0.06PSI (0.4kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 9.79PSI (67.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
HSCSAAN002NGAA5SENSOR 0.07PSIG 0.19" 4.5V 4SIP |
4,461 | 0.00 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Vented Gauge | 0.07PSI (0.5kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 9.76PSI (67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCSAAN004NG2A3SENSOR 0.15PSIG 0.19" 12BIT 4SIP |
1,714 | 0.00 |
|
Datasheet |
TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Vented Gauge | 0.15PSI (1kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 9.76PSI (67.28kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
HSCDRRN006MD2A5SENSOR 0.09PSID 0.08" 12BIT 8DIP |
2,186 | 0.00 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.09PSI (±0.6kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.79PSI (±67.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRN010MD2A5SENSOR 0.15PSID 0.08" 12BIT 8DIP |
4,791 | 0.00 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.15PSI (±1kPa) | I2C | 12 b | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.88PSI (±75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
|
|
HSCDRRN010MDAA5SENSOR 0.15PSID 0.08" 4.5V 8DIP |
4,397 | 0.00 |
|
Datasheet |
TruStability® HSC | 8-DIP (0.524", 13.30mm), Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.15PSI (±1kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±10.88PSI (±75kPa) | -20°C ~ 85°C | - | - | Through Hole | 8-DIP |
