PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUEF400-2PTC RESET FUSE 30V 4A RADIAL |
2,688 | 0.71 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Tape & Reel (TR) | Active | Polymeric | 30V | 4 A | 8 A | 100 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.760" (19.30mm) | - | 0.199" (5.05mm) |
|
DECASMDC050F/60-2PTC RESET FUSE 60V 550MA 2018 |
30,906 | 0.46 |
|
Datasheet |
2018 (5045 Metric), Concave | PolySwitch®, decaSMD | Tape & Reel (TR) | Active | Polymeric | 60V | 550 mA | 1.1 A | 10 A | 100 ms | 200 mOhms | 1.1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.197" L x 0.177" W (5.01mm x 4.50mm) | - | 0.035" (0.89mm) | - |
|
2920L075/60MRPTC RESET FUSE 60V 750MA 2920 |
17,041 | 0.74 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 60V | 750 mA | 1.5 A | 10 A | 300 ms | 300 mOhms | 950 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
RGEF500-2PTC RESET FUSE 16V 5A RADIAL |
10,480 | 0.75 |
|
Datasheet |
Radial, Disc | PolySwitch®, RGEF | Tape & Reel (TR) | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.390" L x 0.098" W (9.90mm x 2.50mm) | 0.563" (14.30mm) | - | 0.199" (5.05mm) |
|

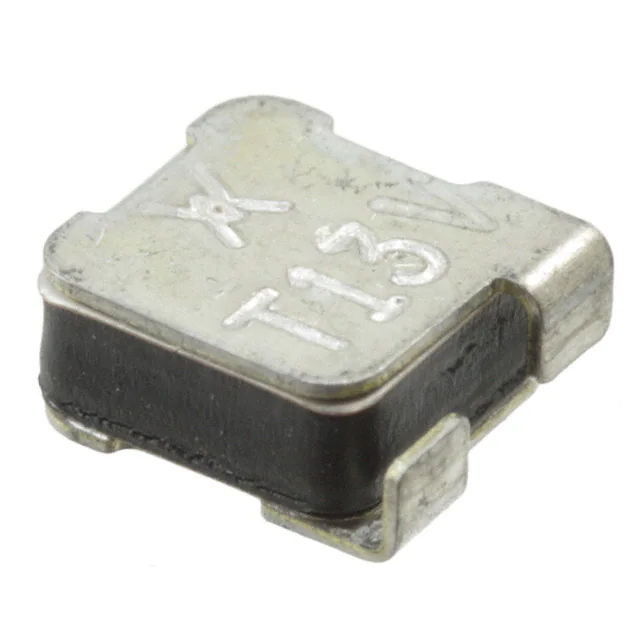

TSV250-130F-2PTC RESET FUSE 60V 130MA 2SMD |
9,772 | 1.05 |
|
Datasheet |
2-SMD | PolySwitch®, TS250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 2 s | 4 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.240" L x 0.272" W (6.10mm x 6.90mm) | - | 0.126" (3.20mm) | - |
|

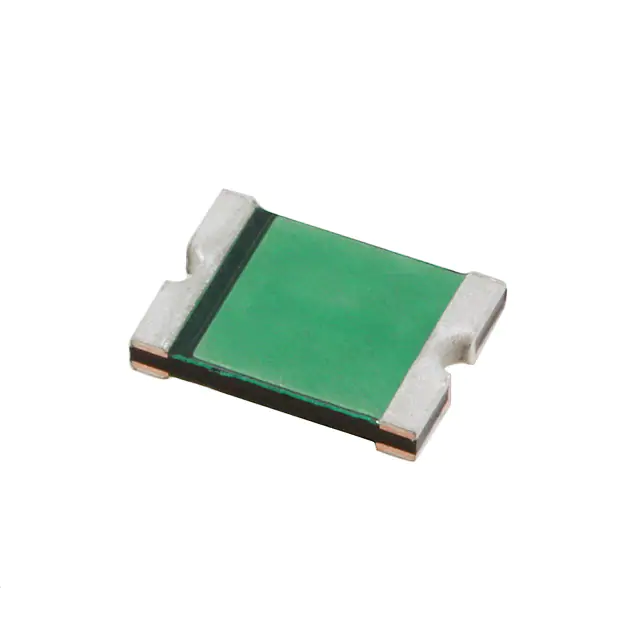

0ZTH0020FF2EPTC RESET FUSE 30V 200MA 1210 |
2,517 | 0.68 |
|
Datasheet |
1210 (3225 Metric), Concave | 0ZTH | Tape & Reel (TR) | Active | Polymeric | 30V | 200 mA | 500 mA | 10 A | 100 ms | 800 mOhms | 5 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|

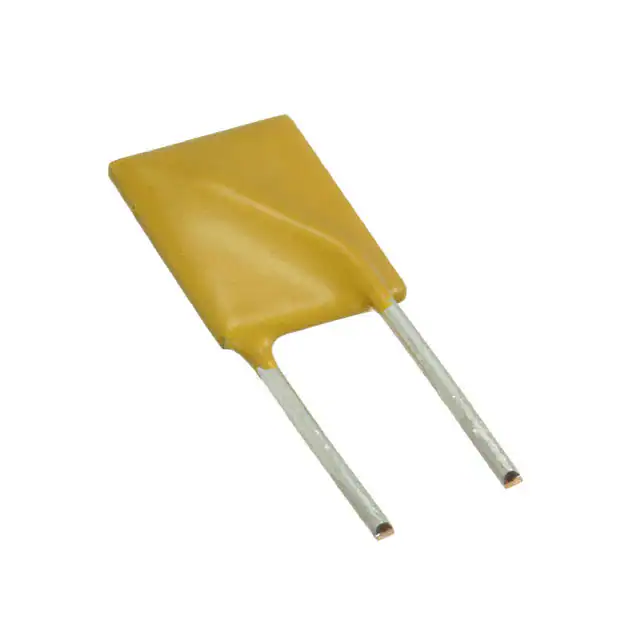

RKEF300PTC RESET FUSE 60V 3A RADIAL |
5,287 | 0.73 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Bag | Active | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.835" (21.20mm) | - | 0.199" (5.05mm) |
|
|
2920L200/24DRPTC RESET FUSE 24V 2A 2920 |
4,157 | 0.84 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 24V | 2 A | 4 A | 40 A | 5 s | 50 mOhms | 125 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
NANOASMDCH050F/24-2PTC RESET FUSE 24V 500MA 1206 |
18,486 | 1.10 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 24V | 500 mA | 2.5 A | 20 A | 100 ms | 200 mOhms | 1.6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.062" W (3.20mm x 1.58mm) | - | 0.045" (1.14mm) | - |
|
SMDC300F/24-2PTC RESET FUSE 24V 3A 2920 |
10,904 | 0.79 |
|
Datasheet |
2920 (7351 Metric), Concave | SMDC | Tape & Reel (TR) | Active | Polymeric | 24V | 3 A | 6 A | 40 A | 5 s | - | - | - | - | - | - | - | Surface Mount | 0.295" L x 0.201" W (7.50mm x 5.10mm) | - | 0.043" (1.10mm) | - |
, Concave.jpg)
|
FEMTOSMDC005F-2PTC RESET FUSE 15V 50MA 0603 |
7,779 | 0.79 |
|
Datasheet |
0603 (1608 Metric), Concave | PolySwitch®, femtoSMD | Tape & Reel (TR) | Active | Polymeric | 15V | 50 mA | 150 mA | 40 A | 100 ms | 3.8 Ohms | 30 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | - | 0.033" (0.85mm) | - |
|

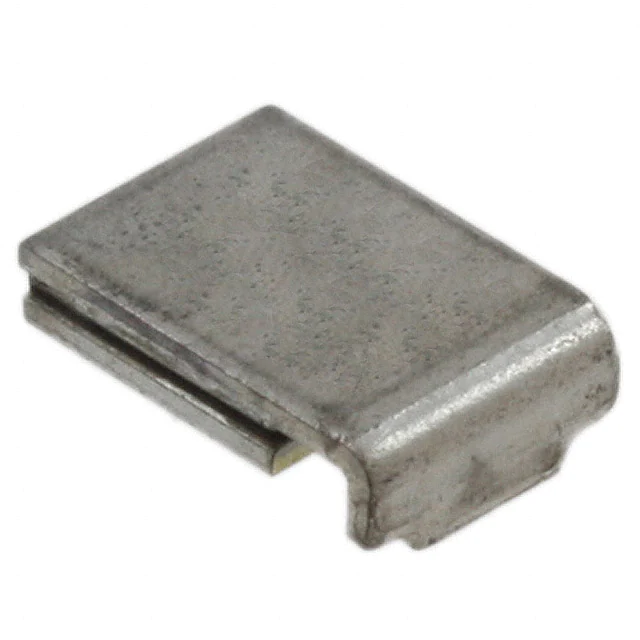

AHS300-2PTC RESET FUSE 16V 3A 2SMD |
2,921 | 0.79 |
|
Datasheet |
2-SMD | PolySwitch®, AHS | Tape & Reel (TR) | Active | Polymeric | 16V | 3 A | 6 A | 70 A | 8 s | 24 mOhms | 83 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.343" L x 0.250" W (8.70mm x 6.36mm) | - | 0.118" (3.00mm) | - |
|
|
2920L110/60MRPTC RESET FUSE 60V 1.1A 2920 |
39,778 | 0.82 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 60V | 1.1 A | 2.2 A | 20 A | 500 ms | 120 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
|
|
2920L185DRPTC RESET FUSE 33V 1.85A 2920 |
6,913 | 0.79 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 33V | 1.85 A | 3.7 A | 40 A | 2.5 s | 50 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
.JPG)
|
MF-NSMF200-2PTC RESET FUSE 6V 2A 1206 |
3,049 | 0.34 |
|
Datasheet |
1206 (3216 Metric), Concave | Multifuse®, MF-NSMF | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 100 A | 1 s | 20 mOhms | 85 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.063" W (3.25mm x 1.60mm) | - | 0.063" (1.60mm) | - |
|

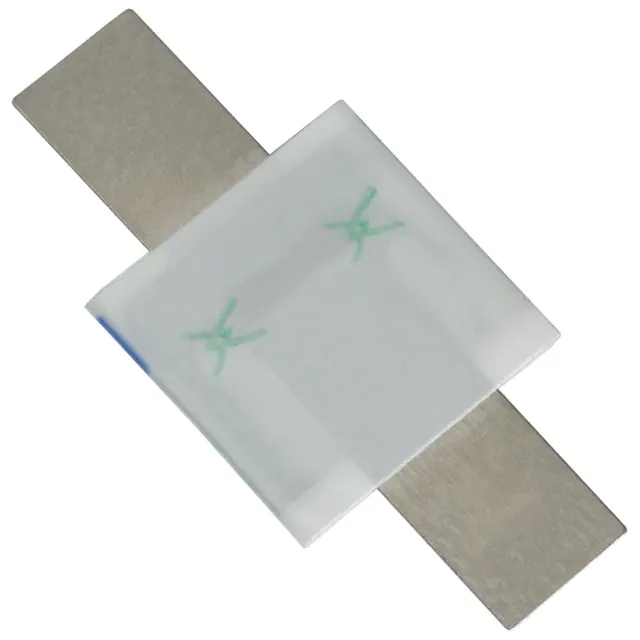

SRP350FPTC RESET FUSE 30V 3.5A STRAP |
32,069 | 0.84 |
|
Datasheet |
Strap | PolySwitch®, SRP | Bulk | Active | Polymeric | 30V | 3.5 A | 6.3 A | 100 A | 3 s | 17 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.185" L x 0.522" W (30.10mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
|
SRP200FPTC RESET FUSE 30V 2A STRAP |
18,535 | 0.84 |
|
Datasheet |
Strap | PolySwitch®, SRP | Bulk | Active | Polymeric | 30V | 2 A | 4.4 A | 100 A | 4 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.880" L x 0.417" W (22.35mm x 10.60mm) | - | 0.043" (1.10mm) | - |
|
|
2920L300/15DRPTC RESET FUSE 15V 3A 2920 |
4,390 | 0.84 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 15V | 3 A | 5 A | 40 A | 20 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.35mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
|
RUEF600PTC RESET FUSE 30V 6A RADIAL |
15,967 | 0.85 |
|
Datasheet |
Radial, Disc | PolySwitch®, RUEF | Bag | Active | Polymeric | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.949" (24.10mm) | - | 0.400" (10.15mm) |
|
MF-R900PTC RESET FUSE 30V 9A RADIAL |
1,928 | 0.81 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-R | Bulk | Active | Polymeric | 30V | 9 A | 18 A | 40 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.953" L x 0.118" W (24.20mm x 3.00mm) | 1.295" (32.90mm) | - | 0.402" (10.20mm) |
