PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

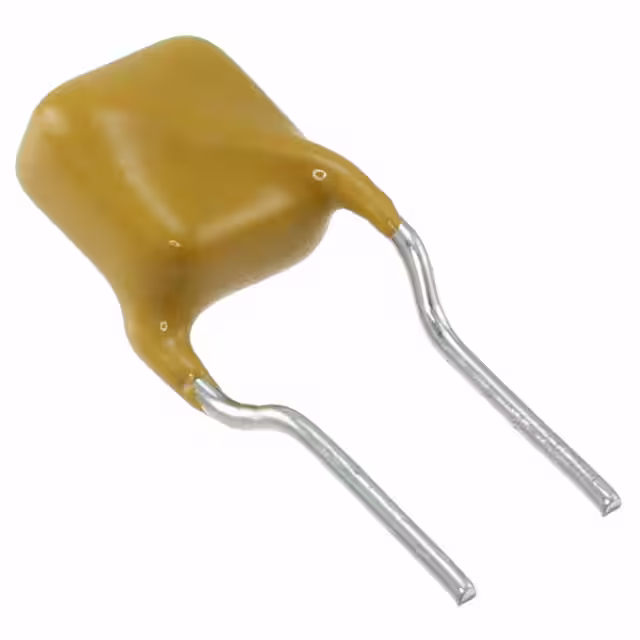

TRF250-120T-RA-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
18,427 | 0.89 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 120 mA | 240 mA | 3 A | 1.2 s | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
PTCCL05H950HBEPTC RESET FUSE 265V 95MA RADIAL |
8,121 | 1.37 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Bulk | Active | Ceramic | 265V | 95 mA | 143 mA | 600 mA | - | - | - | 56 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
ASMDC185F/33-2PTC RESET FUSE 33V 1.85A 2SMD |
7,938 | 0.90 |
|
Datasheet |
2-SMD | PolySwitch®, ASMD | Tape & Reel (TR) | Active | Polymeric | 33V | 1.85 A | 3.7 A | 40 A | 2.5 s | 50 mOhms | 150 mOhms | - | - | Automotive | AEC-Q200 | - | Surface Mount | 0.295" L x 0.201" W (7.50mm x 5.10mm) | - | 0.028" (0.71mm) | - |
|

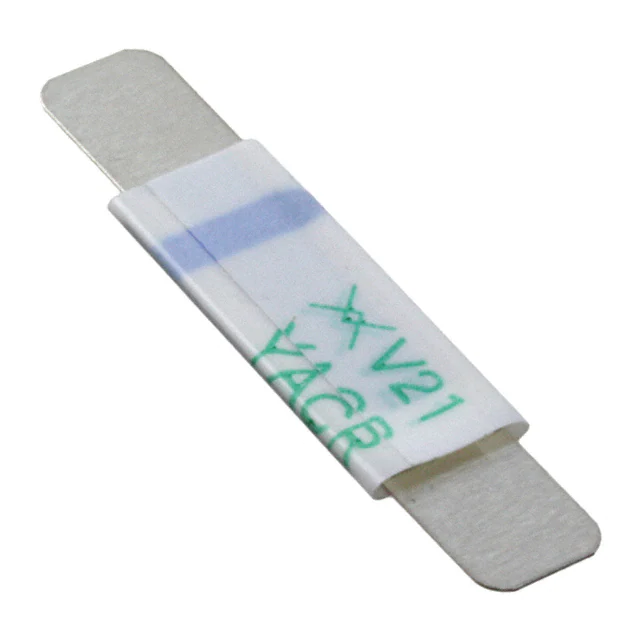

VTP210GFPTC RESET FUSE 16V 2.1A STRAP |
2,371 | 0.91 |
|
Datasheet |
Strap | PolySwitch®, VTP | Bulk | Active | Polymeric | 16V | 2.1 A | 4.7 A | 100 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.909" L x 0.209" W (23.10mm x 5.30mm) | - | 0.032" (0.80mm) | - |
|

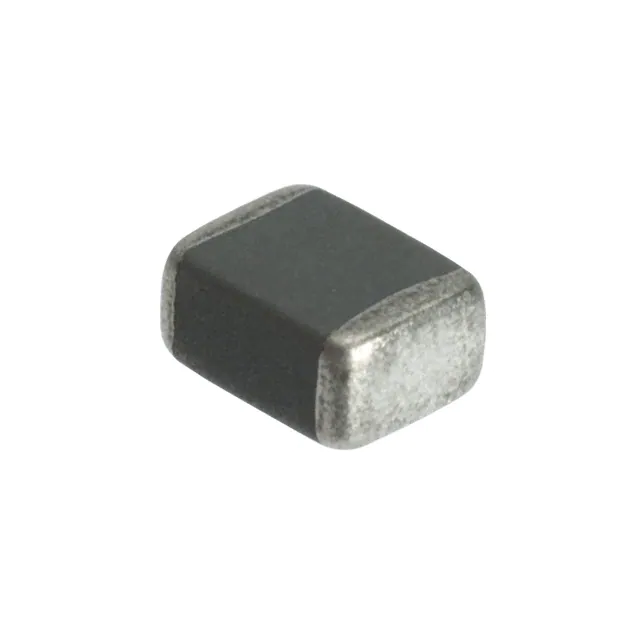

B59622A0090A062THERMISTOR PTC 220 OHM 25% 0603 |
26,146 | 1.42 |
|
Datasheet |
0603 (1608 Metric) | B59622 | Tape & Reel (TR) | Active | Ceramic | 60V | 20 mA | 40 mA | 220 mA | - | 150 Ohms | 220 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.035" (0.90mm) | - |
|
1812L050/60MRPTC RESET FUSE 60V 500MA 1812 |
20,951 | 0.96 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 60V | 500 mA | 1 A | 10 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.071" (1.80mm) | - |
|

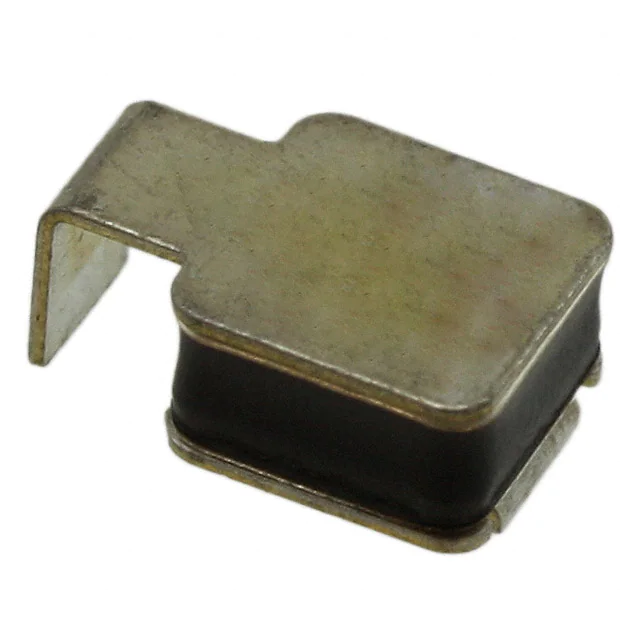

TSL250-080F-2PTC RESET FUSE 80V 80MA 2SMD |
17,158 | 1.05 |
|
Datasheet |
2-SMD | PolySwitch®, TSL250 | Tape & Reel (TR) | Active | Polymeric | 80V (250V Int) | 80 mA | 240 mA | 3 A | 800 ms | 5 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.287" L x 0.199" W (7.30mm x 5.05mm) | - | 0.146" (3.70mm) | - |
|
1206L110/16WRPTC RESET FUSE 16V 1.1A 1206 |
4,790 | 0.98 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, 1206L | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 100 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
1210L075/24PRPTC RESET FUSE 24V 750MA 1210 |
2,137 | 0.98 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 100 A | 100 ms | 130 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.071" (1.80mm) | - |
|

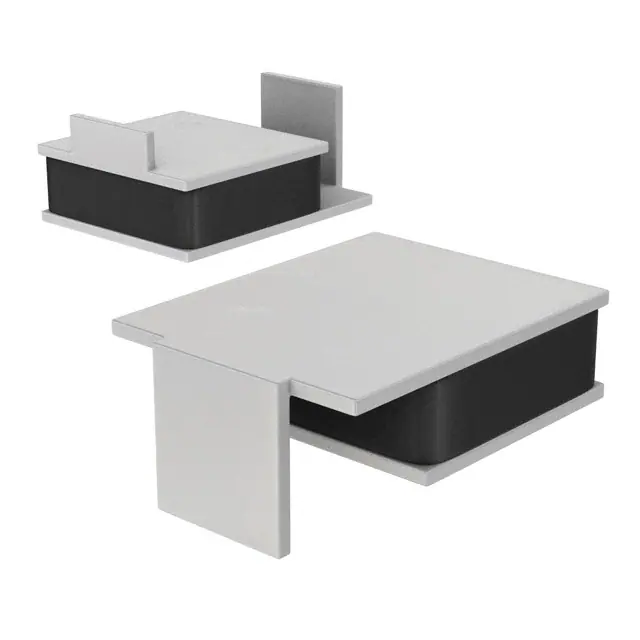

250S130DRPTC RESET FUSE 60V 130MA 2SMD |
1,837 | 0.97 |
|
Datasheet |
2-SMD | POLY-FUSE®, 250S | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 4 s | 4 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.370" L x 0.291" W (9.40mm x 7.40mm) | - | 0.146" (3.70mm) | - |
|
1210L110/16WRPTC RESET FUSE 16V 1.1A 1210 |
33,730 | 0.98 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 100 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|
MF-LSMF185/33X-2PTC RESET FUSE 33V 1.85A 2920 |
9,553 | 0.97 |
|
Datasheet |
2920 (7351 Metric), Concave | Multifuse®, MF-LSMF | Tape & Reel (TR) | Active | Polymeric | 33V | 1.85 A | 3.7 A | 40 A | 2.5 s | 45 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.36mm x 5.12mm) | - | 0.063" (1.60mm) | - |
|
|
1210L150/16WRPTC RESET FUSE 16V 1.5A 1210 |
34,601 | 0.98 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 16V | 1.5 A | 3 A | 100 A | 300 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.042" (1.07mm) | - |
|
|
1812L050/30PRPTC RESET FUSE 30V 500MA 1812 |
18,281 | 0.98 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 30V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|
|
1210L050/30WRPTC RESET FUSE 30V 500MA 1210 |
11,587 | 0.98 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, 1210L | Tape & Reel (TR) | Active | Polymeric | 30V | 500 mA | 1 A | 40 A | 150 ms | 220 mOhms | 900 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|
SRP420FPTC RESET FUSE 30V 4.2A STRAP |
9,427 | 1.02 |
|
Datasheet |
Strap | PolySwitch®, SRP | Bulk | Active | Polymeric | 30V | 4.2 A | 7.6 A | 100 A | 6 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.240" L x 0.522" W (31.50mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
2920L260/24DRPTC RESET FUSE 24V 2.6A 2920 |
476 | 1.01 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 24V | 2.6 A | 5 A | 40 A | 10 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|

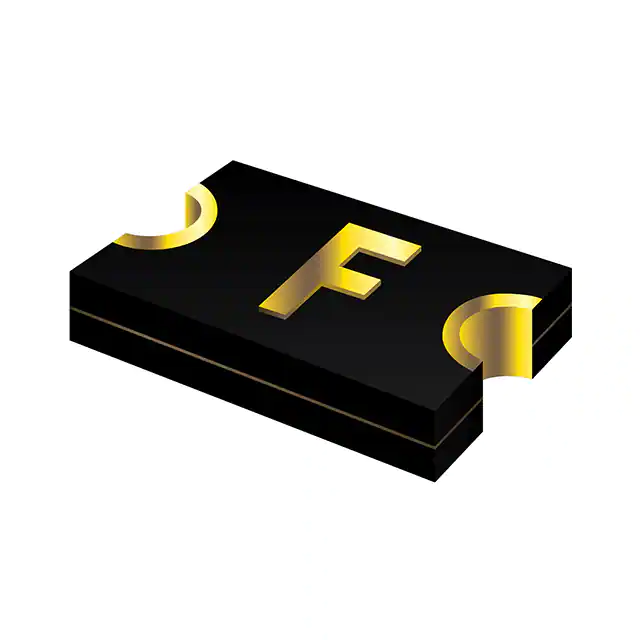

MF-USHT050KX-2PTC RESET FUSE 30V 500MA 1210 |
4,016 | 0.94 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USHT | Tape & Reel (TR) | Active | Polymeric | 30V | 500 mA | 2.5 A | 20 A | 100 ms | 300 mOhms | 1.6 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.100" W (3.20mm x 2.55mm) | - | 0.033" (0.85mm) | - |
|

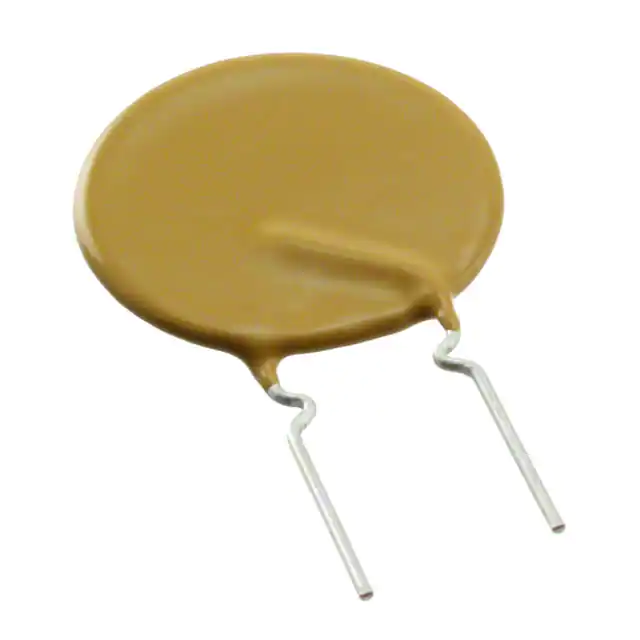

RXEF300PTC RESET FUSE 72V 3A RADIAL |
9,263 | 0.84 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Bag | Active | Polymeric | 72V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.941" Dia x 0.118" T (23.90mm x 3.00mm) | 1.126" (28.60mm) | - | 0.400" (10.15mm) |
|
|
MF-LSMF260X-2PTC RESET FUSE 24V 2.6A 2920 |
30,890 | 0.97 |
|
Datasheet |
2920 (7351 Metric), Concave | Multifuse®, MF-LSMF | Tape & Reel (TR) | Active | Polymeric | 24V | 2.6 A | 5.2 A | 20 A | 5 s | 20 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.289" L x 0.202" W (7.36mm x 5.12mm) | - | 0.063" (1.60mm) | - |
