PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AHRF750-2PTC RESET FUSE 16V 7.5A RADIAL |
1,000 | 1.11 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Tape & Reel (TR) | Active | Polymeric | 16V | 7.5 A | 14.8 A | 100 A | 8 s | 7.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.200" (5.08mm) |
|
MF-RHT700-2PTC RESET FUSE 16V 7A RADIAL |
3,321 | 1.03 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Reel (TR) | Active | Polymeric | 16V | 7 A | 13 A | 100 A | 7 s | 10 mOhms | 25 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.862" (21.90mm) | - | 0.201" (5.10mm) |
|
AGRF1000PTC RESET FUSE 16V 10A RADIAL |
4,665 | 1.17 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Bag | Active | Polymeric | 16V | 10 A | 18.5 A | 100 A | 7 s | 3.4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.012" (25.70mm) | - | 0.199" (5.05mm) |
|
|
AGRF1100-2PTC RESET FUSE 16V 11A RADIAL |
1,000 | 1.19 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 11 A | 20.3 A | 100 A | 7.5 s | 3.3 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.228" (5.80mm) |
|

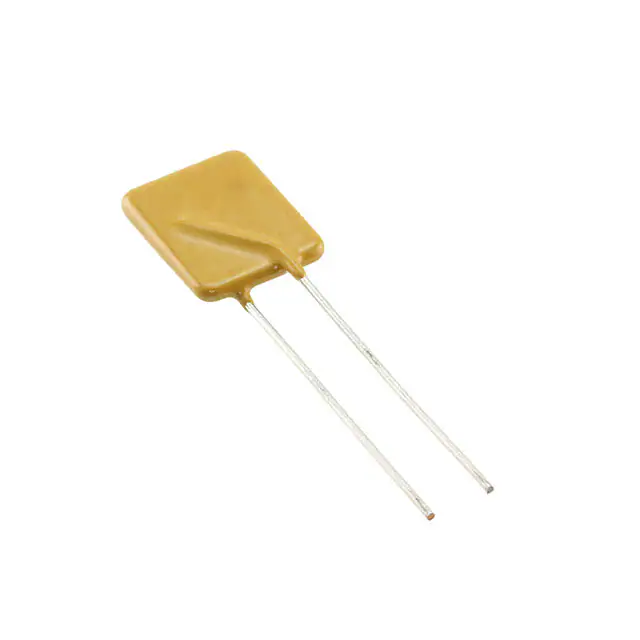

LVR055S-1PTC RESET FUSE 240V 550MA RADIAL |
756 | 1.34 |
|
Datasheet |
Radial, Disc | PolySwitch®, LVR | Bag | Active | Polymeric | 240V (265V Int) | 550 mA | 1.25 A | 7 A | 26 s | 450 mOhms | 1.45 Ohms | - | -20°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.161" W (14.00mm x 4.10mm) | 0.854" (21.70mm) | - | 0.200" (5.08mm) |
|
AHRF1000PTC RESET FUSE 16V 10A RADIAL |
4,161 | 1.42 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 10 A | 20.5 A | 100 A | 10.5 s | 5.1 mOhms | 15 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.400" (10.15mm) |
|
TRF600-160-1PTC RESET FUSE 250V 160MA RADIAL |
254 | 1.31 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF600 | Bag | Active | Polymeric | 250V (600V Int) | 160 mA | 320 mA | 60 A | 18 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
RHEF1300-2PTC RESET FUSE 16V 13A RADIAL |
210 | 1.53 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Tape & Reel (TR) | Active | Polymeric | 16V | 13 A | 24 A | 100 A | 13 s | 4.1 mOhms | 10 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
|
CMF-SDP10-2PTC RESET FUSE 230V 180MA 4SMD |
1,610 | 1.36 |
|
Datasheet |
4-SMD Cube | CMF-SDP | Tape & Reel (TR) | Active | Ceramic | 230V (250V Int) | 180 mA | 360 mA | 1 A | 3.8 s | - | - | 10 Ohms | -40°C ~ 125°C | - | - | - | Surface Mount | 0.433" L x 0.354" W (11.00mm x 9.00mm) | - | 0.453" (11.50mm) | - |
|
AHRF1000-2PTC RESET FUSE 16V 10A RADIAL |
1,000 | 1.53 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Tape & Reel (TR) | Active | Polymeric | 16V | 10 A | 20.5 A | 100 A | 10.5 s | 5.1 mOhms | 15 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.043" (26.50mm) | - | 0.400" (10.15mm) |
|
|
AHRF1400PTC RESET FUSE 16V 14A RADIAL |
4,426 | 1.82 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bag | Active | Polymeric | 16V | 14 A | 28.3 A | 100 A | 15.5 s | 2.9 mOhms | 9 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.126" (28.60mm) | - | 0.400" (10.15mm) |
|

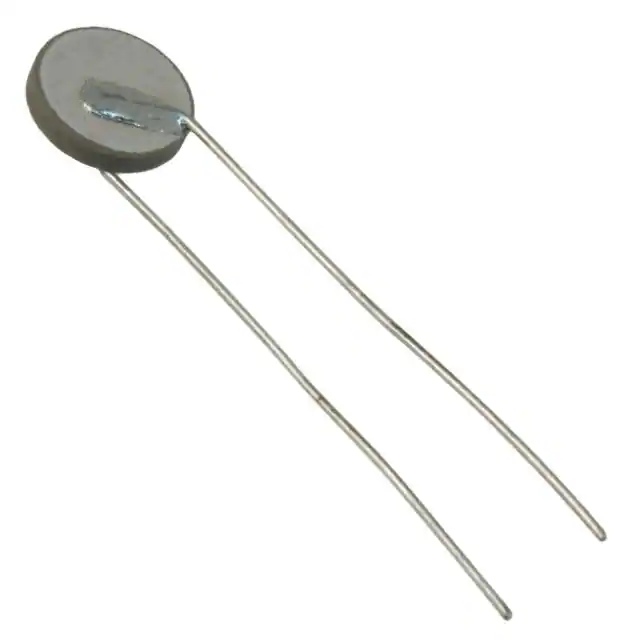

YQS5898PTOPTC RESET FUSE 12V RADIAL DISC |
1,392 | 1.81 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Active | Ceramic | 12V | - | - | - | - | - | - | 25 Ohms | 10°C ~ 55°C | - | - | - | Through Hole | 0.350" Dia x 0.150" T (8.90mm x 3.80mm) | 0.350" (8.89mm) | - | 0.197" (5.00mm) |
|
B59880C0120A051PTC RESET FUSE 265V 55MA RADIAL |
3,718 | 1.88 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 55 mA | 110 mA | 400 mA | - | - | - | 70 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
BK30-090-SIPTC RESET FUSE 30V 900MA RAD |
1,000 | 0.08 |
|
Datasheet |
Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 900 mA | 1.8 A | 40 A | 5.9 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|
|
BK30-135-SIPTC RESET FUSE 30V 1.35A RAD |
1,000 | 0.08 |
|
Datasheet |
Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 55 mOhms | 160 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.362" L x 0.122" W (9.20mm x 3.10mm) | 0.661" (16.80mm) | - | 0.201" (5.10mm) |
|
|
BK60-010-DZPTC RESET FUSE 60V 100MA RAD |
640 | 0.09 |
|
Datasheet |
Radial, Disc | BK60 | Bulk | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.236" Dia x 0.122" T (6.00mm x 3.10mm) | 0.374" (9.50mm) | - | 0.201" (5.10mm) |
|
|
BK250-060-DYPTC RESET FUSE 250V 60MA RAD |
1,000 | 0.09 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 60 mA | 120 mA | 3 A | 5 s | 20 Ohms | 45 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.181" T (7.40mm x 4.60mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|
|
BK250-080-DYPTC RESET FUSE 250V 80MA RAD |
982 | 0.09 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 80 mA | 160 mA | 3 A | 5 s | 10 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.181" T (7.40mm x 4.60mm) | 0.571" (14.50mm) | - | 0.201" (5.10mm) |
|
|
BK250-040-DYPTC RESET FUSE 250V 40MA RAD |
973 | 0.09 |
|
Datasheet |
Radial, Disc | BK250 | Bulk | Active | Polymeric | 250V | 40 mA | 80 mA | 3 A | 6 s | 27 Ohms | 65 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" Dia x 0.181" T (7.40mm x 4.60mm) | 0.531" (13.50mm) | - | 0.201" (5.10mm) |
|
|
BK30-110-SIPTC RESET FUSE 30V 1.1A RAD |
1,000 | 0.08 |
|
Datasheet |
Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 70 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.701" (17.80mm) | - | 0.201" (5.10mm) |
